Panel Descriptions

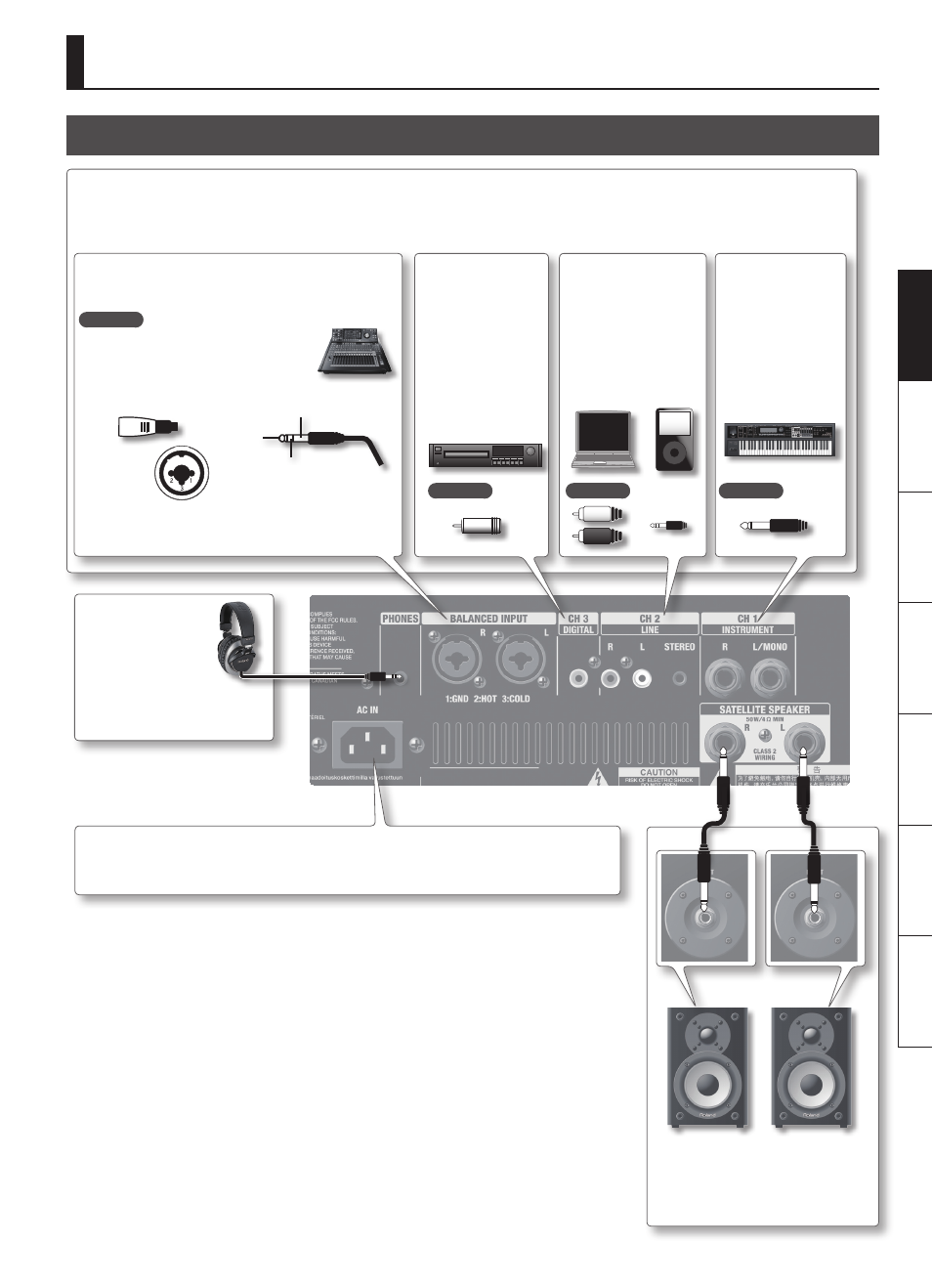

Rear Panel
INPUT jacks
Here you can connect the audio source devices that you want to listen to. The signals from all jacks can be produced simultaneously.
* When connection cables with resistors are used, the volume level of equipment connected to the INPUT jacks may be low. If this happens, use connection cables that
do not contain resistors.
PHONES jack
Headphones (stereo
mini-plug; sold separately)
can be connected here.
* If headphones are connected, sound
will not be output from the main unit
(subwoofer) or satellite speakers.
CH 3 jack
The digital output
(coaxial cable) of
a device can be
connected here.
* Do not input anything
other than a stereo
digital signal. For
example, inputting a
5.1 channel or other
digital signal will
produce noise.
CH 2 jacks
A device such as television,
computer, or audio player
(with RCA phono plugs or
a stereo mini-plug) can be
connected here.
CH 1 jacks
A musical instrument
such as a keyboard
or V-Drums can be
connected here (1/4”
phone plugs).
BALANCED INPUT jacks
A mixer or similar device can be connected here.
Jack type
* This instrument is equipped with balanced
(XLR/TRS) type jacks. Wiring diagrams for these
jacks are shown below. Make connections after
first checking the wiring diagrams of other
equipment you intend to connect.
1: GND
2: HOT
3: COLD
GND (SLEEVE)
HOT (TIP)
COLD (RING)
AC IN jack
Connect the included power cord here.
SATELLITE SPEAKER jacks
Connect the included satellite speakers here.
* Do not connect anything other than the
included speaker cables.
Jack type Jack type Jack type
Rear panel Rear panel
