6 Regency ® F39 Room Sealed Freestanding Gas Stove
INSTALLATION
Before leaving this unit with the customer, the
installer must ensure that the appliance is fi r-
ing correctly and operation fully explained
to customer.
This includes:
1) Clocking the appliance to ensure the correct
fi ring rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the fl ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
CLEARANCES TO
COMBUSTIBLES
The clearances listed are MINIMUM distances.
Measure the clearance to both the appliance
and the chimney connector. The farthest
distance is correct if the two clearances do
not coincide.
For example, if the appliance is set as indicated
in one of the fi gures but the connector is too
close, move the stove until the correct clearance
to the connector is obtained.
This appliance may be installed only with the
clearances as shown in the situations pictured.
Do not combine clearances from one type of
installation with another in order to achieve
closer clearances.
This unit can be installed on a solid combustible
surface like a wood fl oor. This unit can also be
installed directly on carpeting or vinyl when
the bottom pedestal cover plate (provided with
unit) is installed.

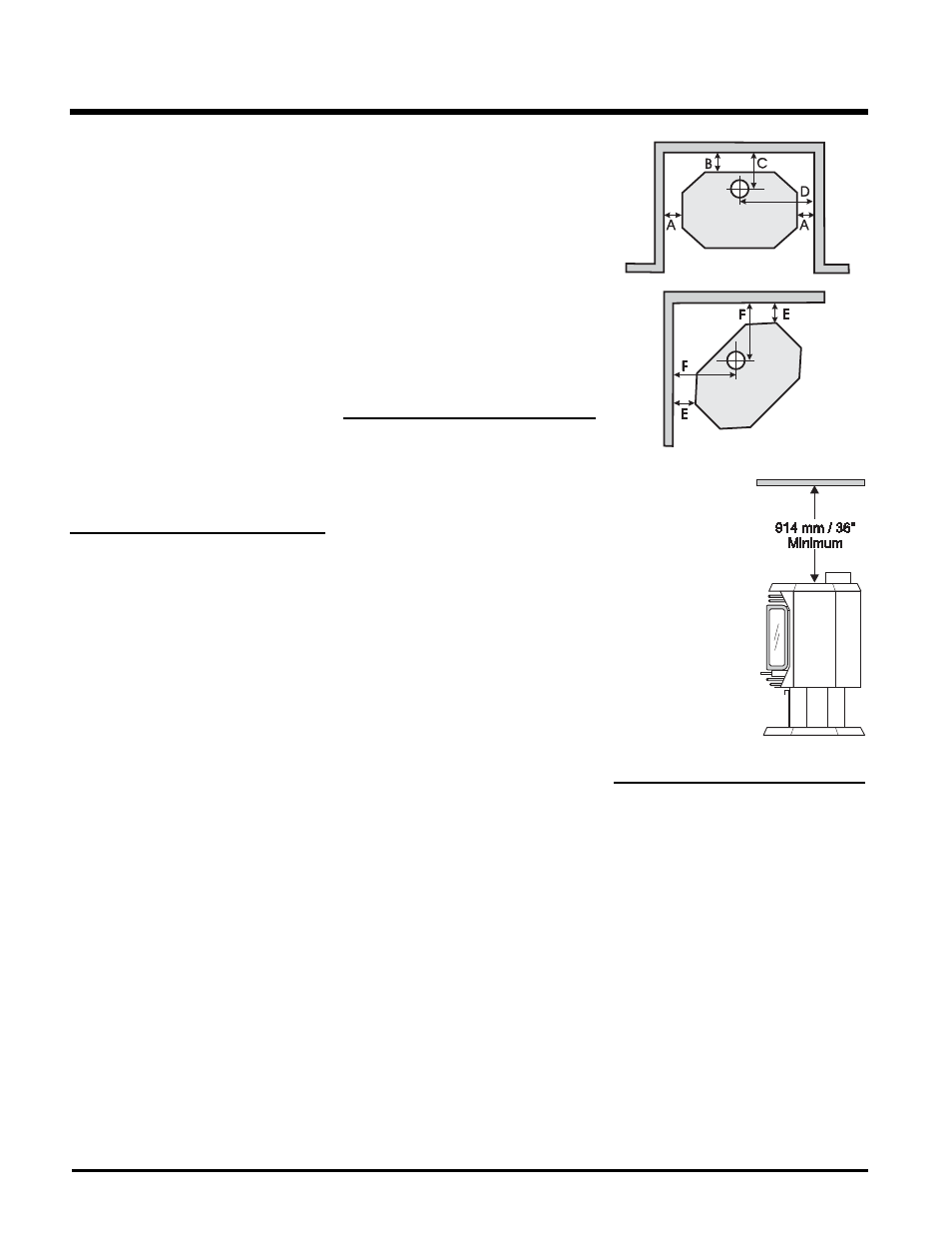

Use the minimum clearances shown in the
diagrams below:
F39-NG & F39-LPG Clearances
A Side Wall to Unit 190 mm
B Back Wall to Unit 150 mm
E Side Wall to Unit 50 mm
F39-NG & F39-LPG Reference Dimensions
C Back Wall to Flue Centerline 11" / 280 mm
D Side Wall to Flue Centerline 521 mm
F Side Wall to Flue Centerline 280 mm
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this ap-
pliance be modifi ed. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12) Installation and any repairs to this appliance
should be done by an authorised service
person. An authorised service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other fl ammable vapours and liquids).
INSTALLATION
CHECKLIST
1) Check Clearances to Combustibles. Refer to
the "Clearance to Combustibles" section.
2) Install Louvers. Refer to "Louver Installation"
section.
3) Install fl ueing. Refer to the "Flueing" sec-
tion.
4) Make gas connections. Refer to the "Gas
Connection" section. Test the pilot. Must
be as per diagram in the "Pilot Adjustment"
section.
5) If necessary, convert NG to LPG. Refer to
the "Conversion from NG to LPG" section.
6) Test Gas Pressure. Refer to the "Gas Pipe
Pressure Testing" section.
7) Install log set. Refer to the "Log Set Instal-
lation" section
8) Install Front Door. Refer to the "Front Door
Installation" section.
9) Install Optional Features. Refer to the
following sections where applicable:
a. Optional Wall Thermostat
b. Optional Remote Control
10) Final check. Refer to the "Final Check"
section.
Minimum ceiling
height is 914 mm
from top of unit.
LOCATING YOUR
REGENCY ® GAS STOVE
When selecting a location for your stove, ensure
that the clearances listed above are met as well
as ensuring that there is adequate accessibility
for servicing and proper operation.
A) Cross Corner
B) Room Divider
C) Island
D) Flat on Wall
E) Flat on Wall Corner
F) Flush with Wall/ Alcove
