Regency ® F39 Room Sealed Freestanding Gas Stove 11
INSTALLATION
when cut will seat onto both the starter
collar and the 90
o elbow. Crimped
section of rigid pipe seats into the
90
o elbow. Only cut the uncrimped
side of pipe.
Dismantle all pipe sections including fl ue
terminal.
3) Attach the 4" dia. fl ex liner to the fl ue terminal
ensuring that the fl ex overlaps the collar of
the fl ue terminal by a minimum of
1-3/8"(35mm). Use Mill-Pac to seal and
secure with 3 of the #8 x 1/2" screws (stain-
less steel).
4) Attach the 2 ft. pipe section to the fl ue termi-
nal using Mill-Pac and/or high temperature
silicone and attach with 3 of the #8 x 1/2"
screws (stainless steel).
6) A bead of non-hardening mastic should be
run around both the termination and vinyl
siding standoff to prevent water from entering
and to make a tight seal between the cap
and the standoff.
7) Stretch the 4" dia. fl ex liner out fully and get
a trial fi t of the liner onto the 4" dia. starter
collar.
8) Cut the 4" dia. fl ex liner to the desired
size.
Hint: leave an extra 12" to 16" of length, this
will make the fi nal assembly easier to work
with.
9) Secure the 4" dia. fl ex liner to the 4" adapter
with Mill-Pac and 3 of the #8 x 1/2" screws
(stainless steel).
10) Slide the Decorative Wall Cover over the
pipe sections.
11) Slide the 90 o elbow (crimp end up) and the
2 ft. pipe section (crimp end up) over the
4" dia. fl ex liner.
12) Slide the trim collar over the pipe section to
cover the joint.
13) Install the spring spacers onto the pipe sec-
tions.
14) Secure the 4" dia. fl ex liner with adapter
onto the stove collar. Put a bead of Mill-Pac
around the appliance adapter and secure
with 3 screws (#8 x 1/2, stainless steel).
15) Attach the pipe section onto the starter
collar by sealing with Mill-Pac and/or high
temperature silicone and securing with 3 of
the #8 x 1/2" (black) screws. Pipe seams
should be facing the wall.
16) Attach the 90 o elbow onto the pipe section by
sealing with Mill-Pac and/or high tempera-
ture silicone and securing with 3 of the #8
x 1/2" screws (black).
17) Slide the 2 ft. pipe section onto the 90 o el-
bow. The fl ex may have to be compressed
back in order for the pipe to properly mate
to the elbow. Seal with Mill-Pac and/or high
temperature silicone and secure with 3 of
the #8 x 1/2" screws (black). Pipe seams
facing down.
18) Install the trim collar over the starter collar
and secure with a #8 x 1/2" screw (black).
If the pipe needs to be touched up, use only
Stove Brite High Temperature Metallic Black
Stove Paint.
NOTE: All inner joints must be sealed with
Mill-Pac.
All outer joints may be sealed with
high temperature silicone.
Note: The pipe seam should be facing
down.
Note: To make the installa-
tion more aestheti-
cally pleasing, we
recommend framing
out a square that the
cap can be mounted
on.
Note: If installing termination on a siding
covered wall, a vinyl siding standoff
or furring strips must be used to
ensure that the termination is not
recessed into the siding. For vinyl
siding standoff installation refer to
the Dura-Flue Termination instruc-
tions.
5) Slide the partially connected pipe and fl ue
terminal assembly through the wall (from
the exterior into the interior) and secure the
cap to the exterior wall with 4 of the supplied
screws (#8 x 1-1/2" drill point, stainless
steel).
Note: The four screws provided for the
fl ue cap should be replaced with ap-
propriate fasteners for stucco, brick,
concrete, or other types of sidings.
Hint: Apply the
sealant (Mill-
Pac and/or high
t e m p e r a t u r e
silicone) to the
outer pipe be-
fore connecting
the inner pipe.

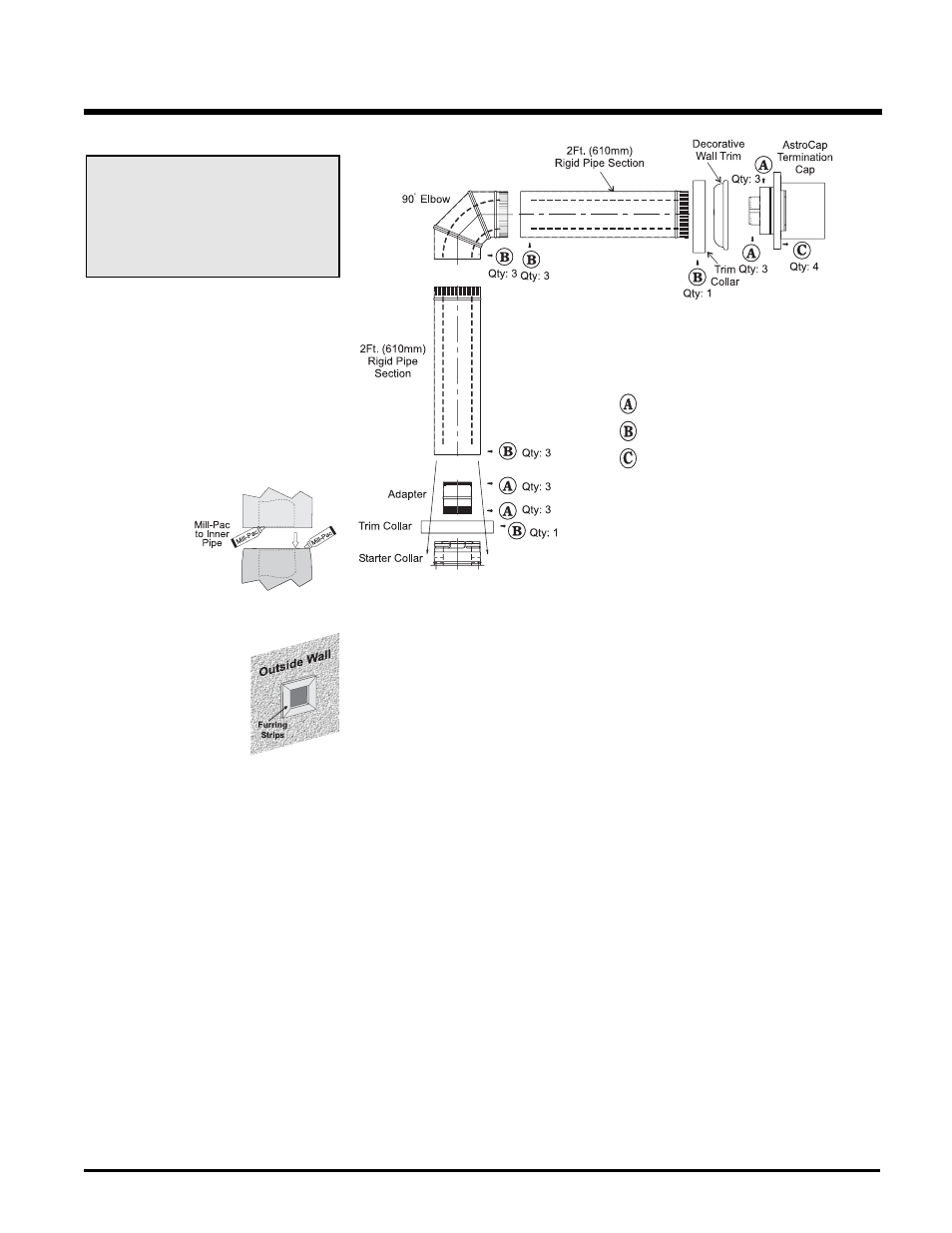

#8 x ½" (13mm) Self Tapping, Stainless Steel
#8 x ½" Self Tapping, Black (13mm)
#8 x 1½" (38mm) Drill Point, Stainless Steel
