Repair Parts
Parts List for RIDGID 10 Inch Table Saw
Model No. TS24001
RIDGID parts are available on-line at www.ridgidparts.com

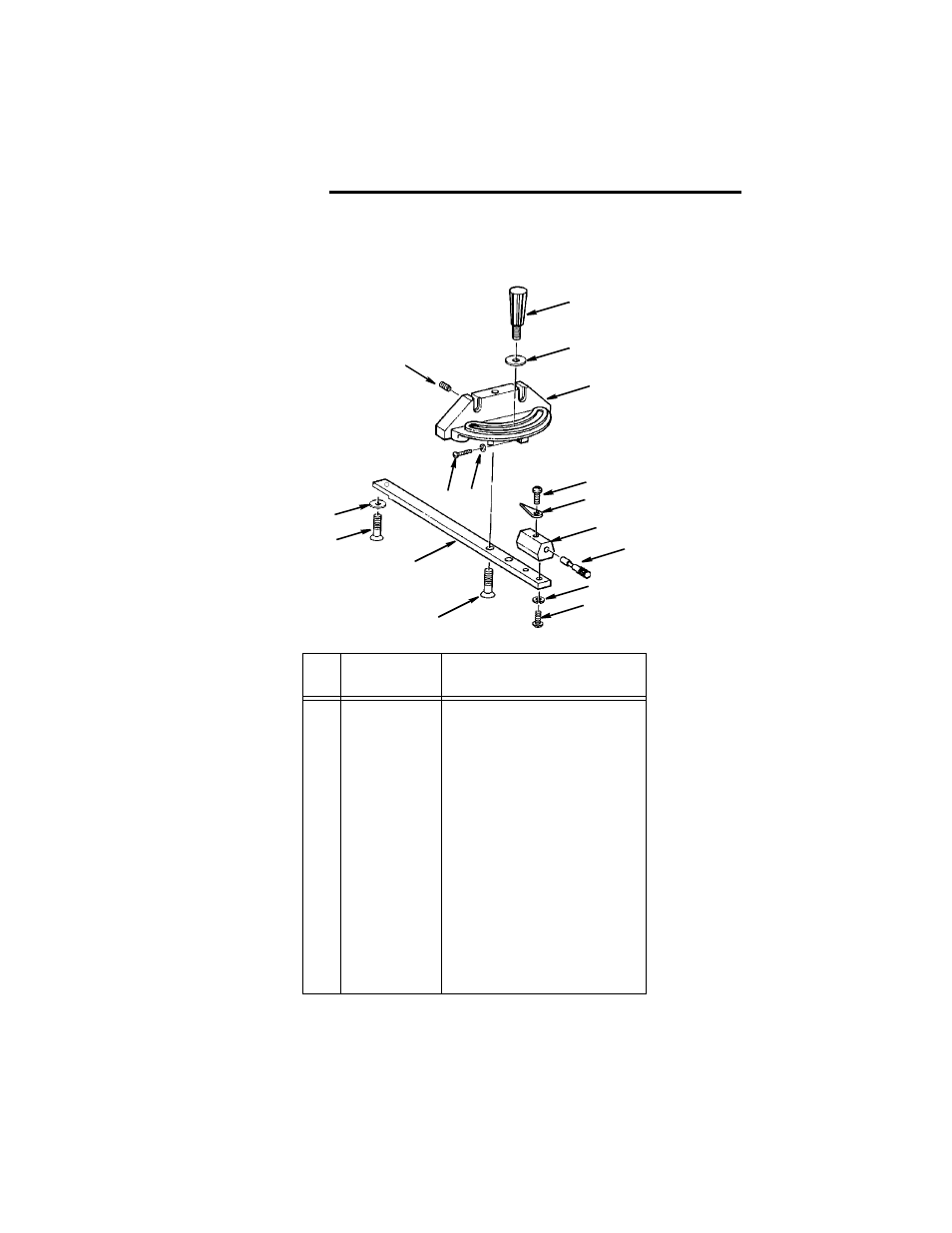

Figure 3 - Miter Gauge Assembly
Always Order by Part Number - Not by Key Number
* Standard Hardware Item - May be purchased locally
Key
No.
Part No. Description
–
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
830338
826506-1
821063-5
826663
824723-1
123069-1
830351
830352
140755-15
824723
818470-4
830350
830354
830353
134530
809813-4
818471-6 Miter Gauge Asm. Complete
Knob
* Washer 8 x 23 x 1.8
Gauge, Miter
* Screw, Pan Hd. 8/32 x 5/16
Indicator
Block, Miter Gauge Indicator
Pin, Miter
* Lockwasher #8
* Screw, Pan Hd 8-32 x 5/8
Screw Flat Hd. M6 x 1.0-16
Rod, Miter Gauge
Screw, Flat Head
Washer, “T” Slot
* Nut Hex 6-32
Screw Pan Hd. 6-32 x 5/8
Screw, Set 5 x 0.8-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
