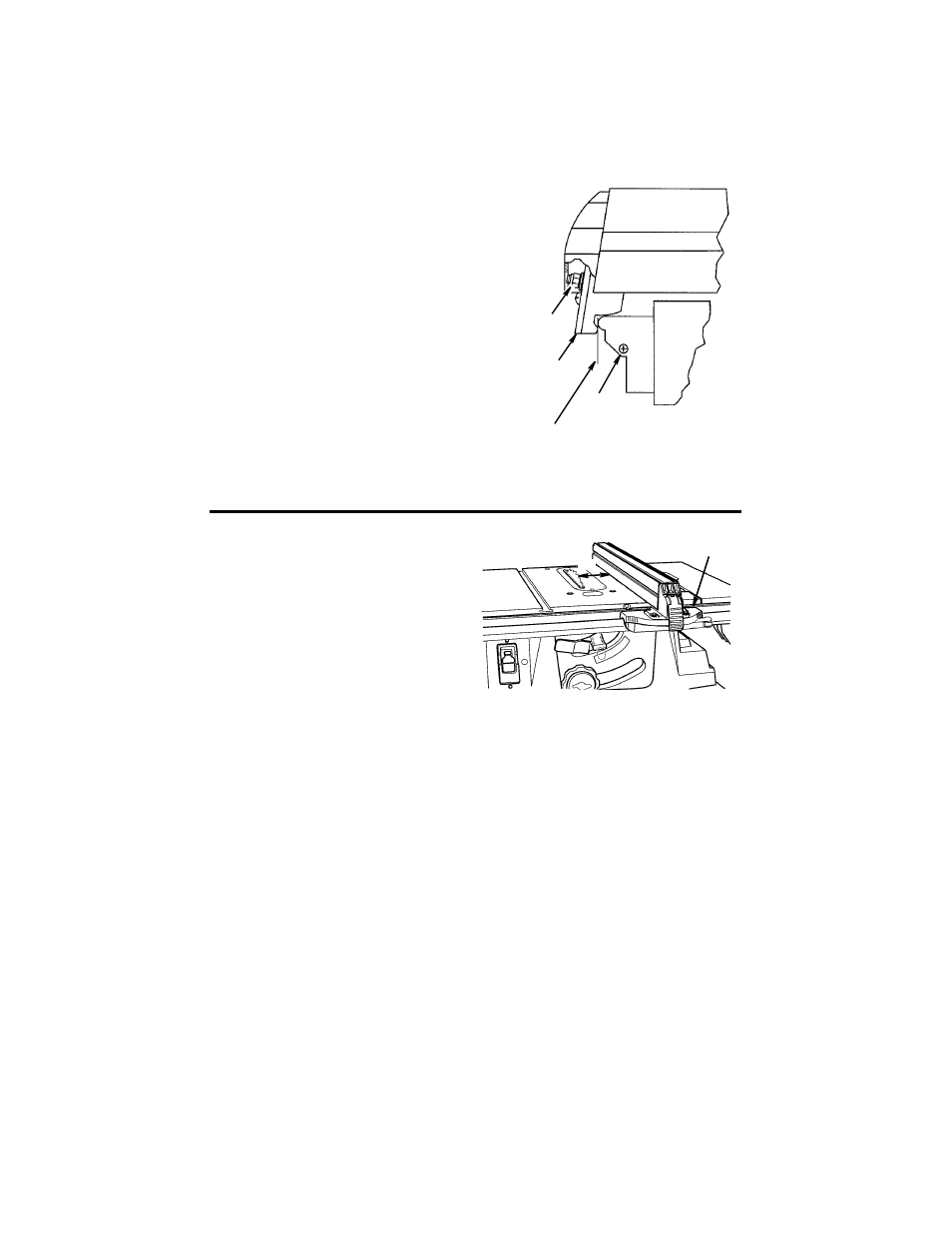

Rip Fence Lock Lever Adjustment
The rip fence lock lever, when locked
down, should hold the rip fence securely.
The lever should not be difficult to push
down and lock.
To assure proper fence lock adjust-
ment:
a. Raise lock lever and push fence
head toward rear of saw.
b. Hold fence head down onto front
guide bar while lifting rear of fence up
and down.
c. Tighten adjusting nut until fence
clamp just barely touches rear guide
bar.
d. This should provide the best fence
adjustment possible without over
tightening.
Adjusting Rip Indicator
1. Raise the blade up approximately 1".
2. Use a ruler to position the rip fence 6"
to the right of the blade as shown. Lock
the rip fence.
3. The rip indicator should read 6".
If not:
• Slightly loosen the Phillips head
screw.
• Slide the indicator left or right as
required.
• Tighten the Phillips head screw.
Adjusting
Nut
Fence
Rear Guide
Clamp
Fence Clamp and Rear Guide Bar
Should Barely Touch When
Fence is Raised
Bar
6"
Rip Indicator
