Chapter 3
Installation
RuggedBackbone™ RX5000
Installation Guide
18
Panel Mounting
Section 3.1.2
Panel Mounting

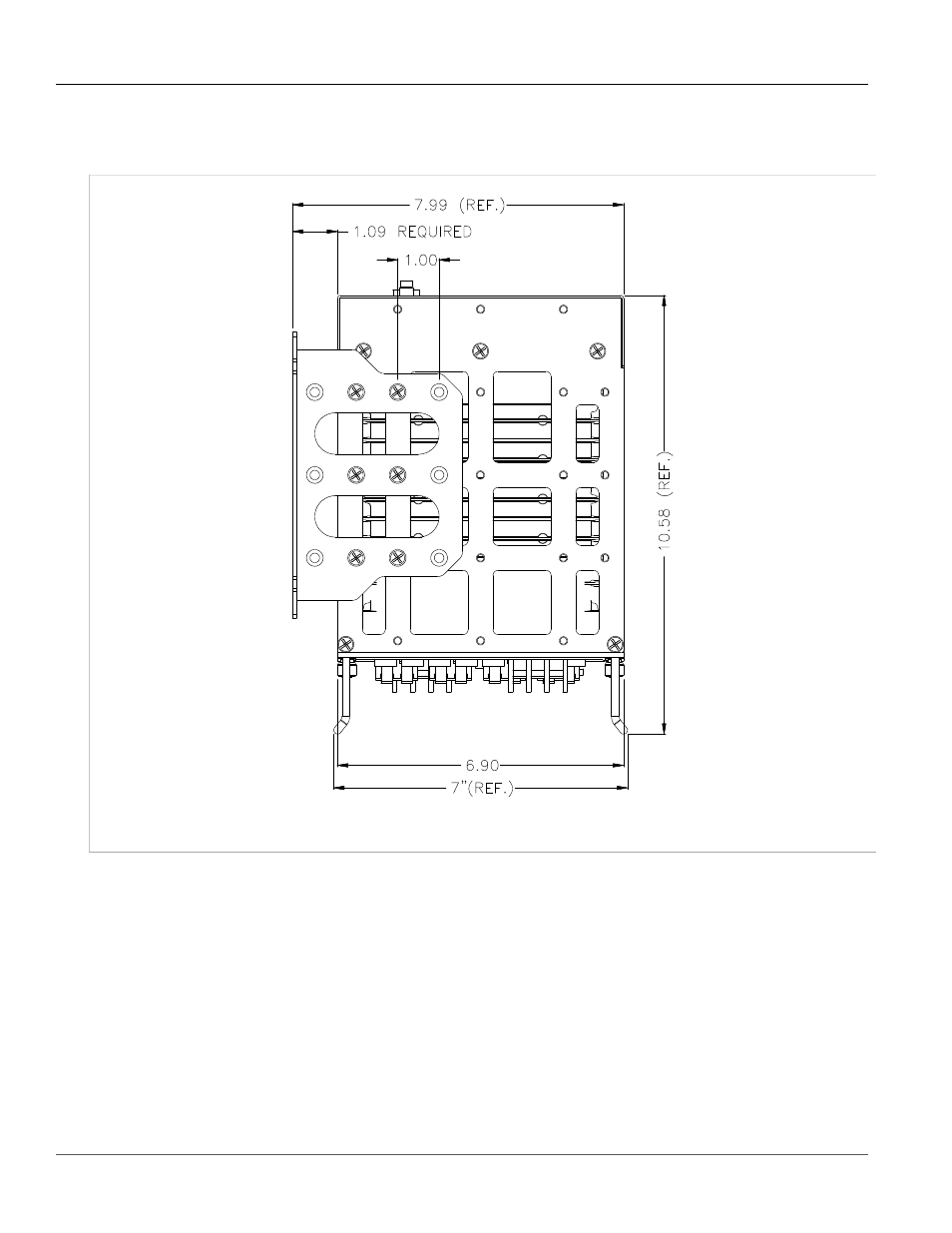

Figure 19: Panel Mount - Side View
The RX5000 can be fastened to panel mount brackets in one of the two positions shown above.
Assemble the panel mount brackets to the main chassis using six (6) #10-32 × 3/8" flat head steel screws
(supplied) on each side. Screws are to be torqued to 18±1 in-lb.
Section 3.2
Power Supply Wiring and Grounding
The RuggedBackbone™ RX5000 can be ordered with dual redundant power supplies, in positions PM1 and PM2
(see
Figure 1, “Chassis Slot Assignment”
). Power connections are located either on the PM1 and PM2 module
face plates or on the front panel of the RX5000. An optional chassis ground connection is located on the front
