RuggedCom RUGGEDBACKBONE RX5000 User Manual
Page 19
RuggedBackbone™ RX5000
Installation Guide
Chapter 3
Installation
Rack Front Mounting with Front-Mounted Power Supplies
13
Section 3.1.1.2
Rack Front Mounting with Front-Mounted Power Supplies

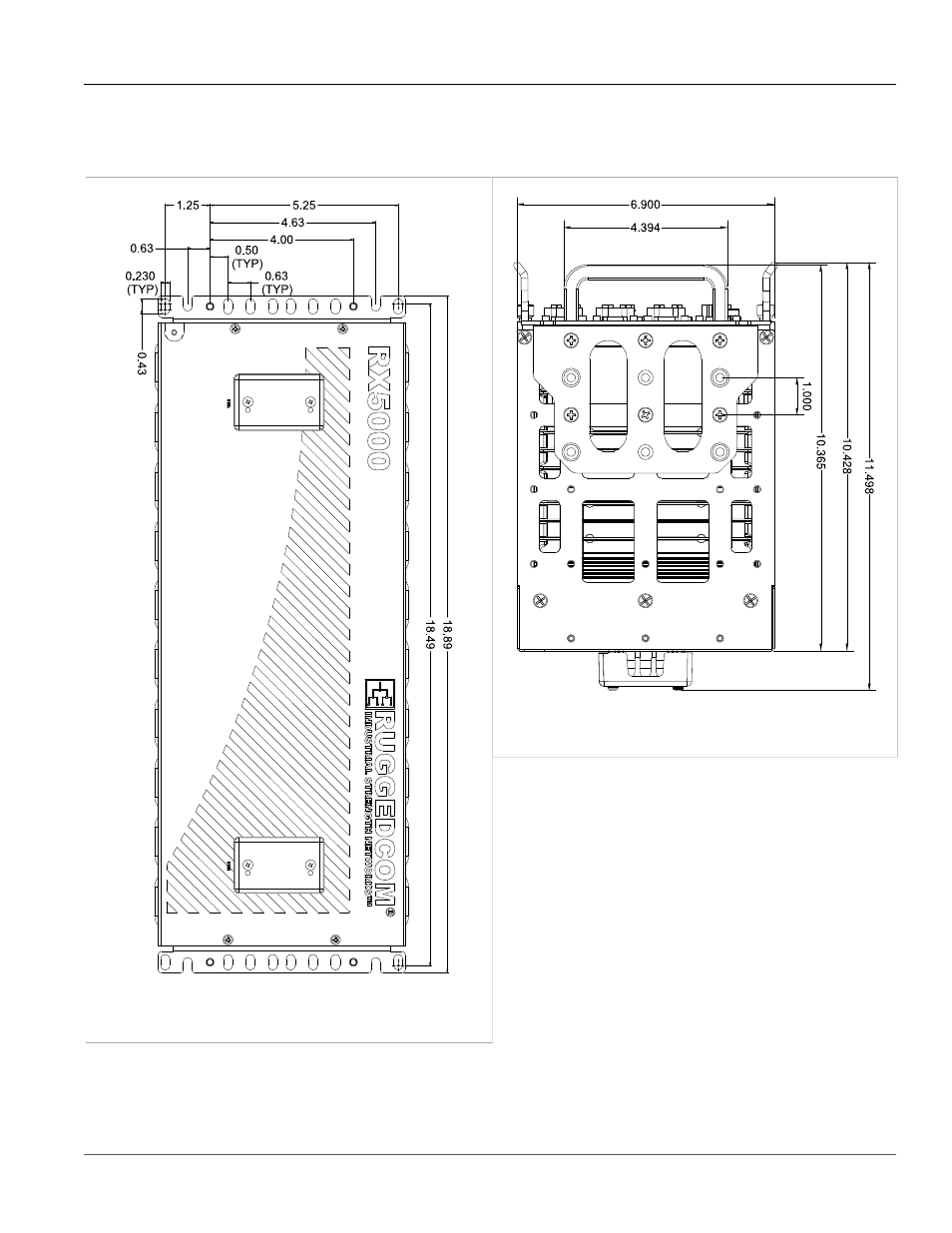

Figure 14: Rack Front Mount with Front-
Mount Power Supplies - Side View
Figure 13: Rack Front Mount with Front-
Mount Power Supplies - Front View
