12

Panel Descriptions

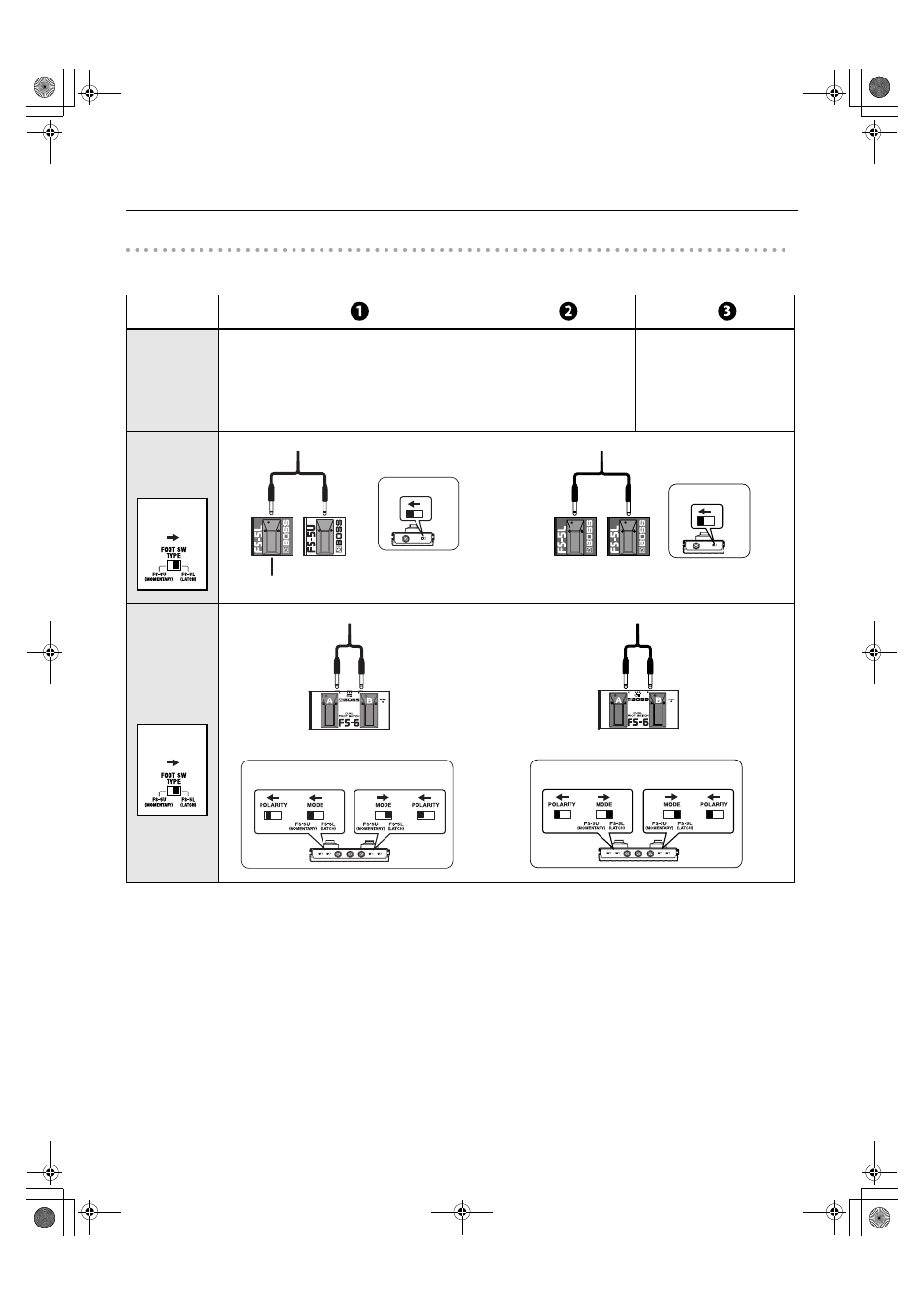

Connection and Settings When Using an FS-5L or Latch-type Footswitch Pedal

When you’re using the FS-6 or FS-5L, you can determine whether the footswitch pedal is on or off by checking its indicator light.

Jack

Jack

Jack

Function

TIP: TAP/REC/PLAY/DUB

For DELAY:

Adjusts the delay time

For LOOPER: LOOPER operation (p. 17)

TIP: EFX

Switches EFX on and off

TIP: SELECT

Switches between the JC
CLEAN and LEAD channels

RING: DELAY/LOOPER MUTE

For DELAY:

Switches DELAY on and off

For LOOPER: Mutes LOOPER

RING: REVERB

Switches REVERB on and off

RING: SOLO

Calls up the SOLO function

When

connecting

the FS-5L

When

connecting

the FS-6

CUBE-80X

Rear Panel

DELAY/LOOPER MUTE

TAP/REC/PLAY/DUB

PCS-31

Red

(RING)

White
(TIP)

Polarity switch

REVERB

SOLO

EFX

SELECT

PCS-31

Red

(RING)

White
(TIP)

Polarity switch

CUBE-80X

Rear Panel

B

A

Red

(RING)

White
(TIP)

PCS-31

DELAY/LOOPER MUTE

TAP/REC/PLAY/DUB

Set the switches as shown as bellow.

REVERB

SOLO

EFX

SELECT

B

A

PCS-31

Red

(RING)

White
(TIP)

Set the switches as shown as bellow.
