4 |
118035
3 trimmer/edger assembly

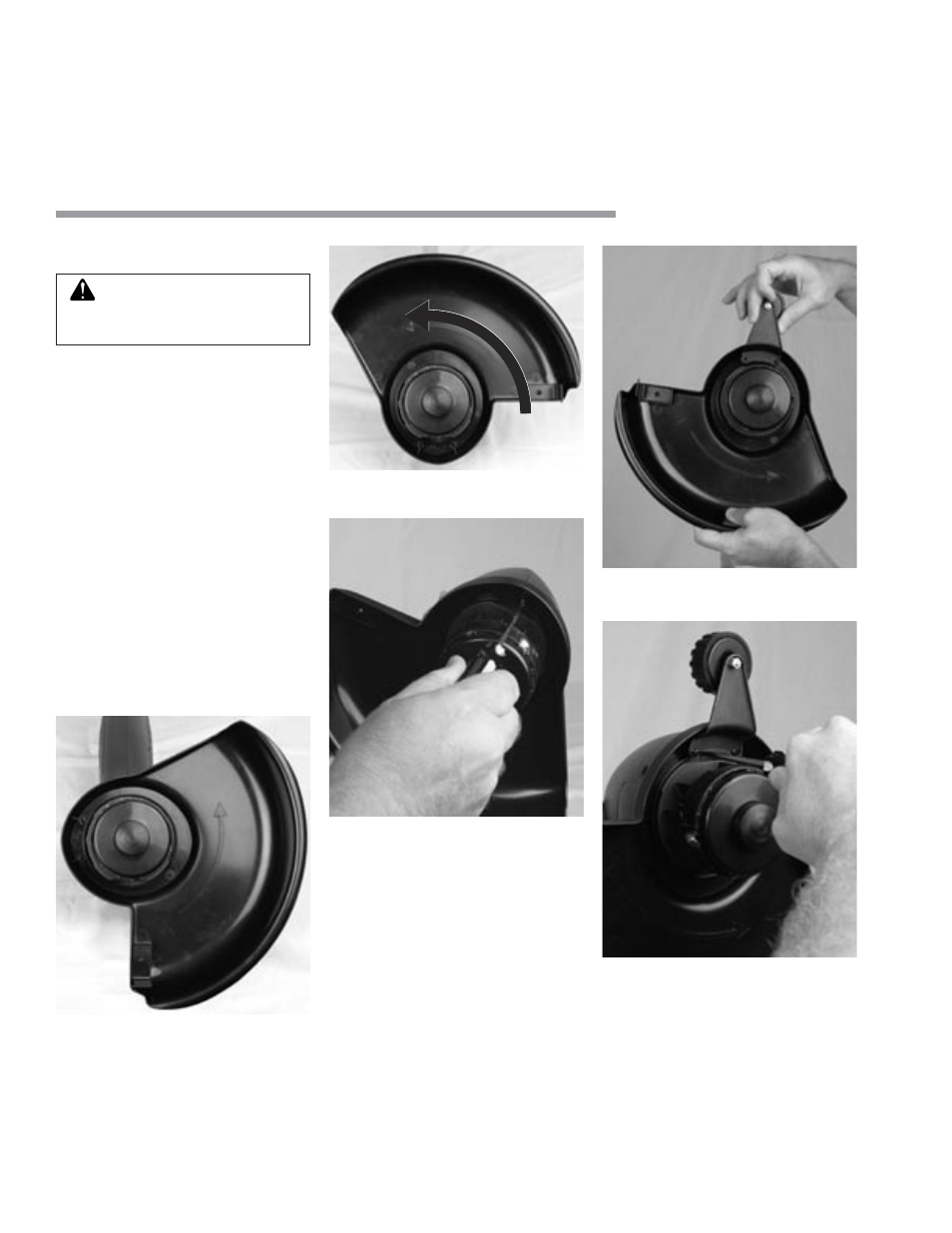

Assembling Trimmer/Edger
Figure 3-3: Attaching mounting screw
Figure 3-1: Placing cutting guard over cutting head
Figure 3-2: Rotating cutting guard into place
WARNING: Do not operate
trimmer/edger without guard or
handle in place.
Figure 3-4: Placing edging wheel over screw holes
Figure 3-5: Attaching edging wheel
Attaching Cutting Guard
and Edging Wheel
1. Remove three mounting screws taped
to underside of cutting guard.
2. Align key tabs on inside of cutting
guard hole with cutouts on motor
housing and slide cutting guard over
cutting head (see Figure 3-1). Slip
cutting guard past the tabs.
3. Rotate guard 90° until it stops (see
Figure 3-2).
4. Insert one mounting screw into center
screw hole at top of cutting guard (see
Figure 3-3). Tighten screw firmly.
5. Place edging wheel over remaining
two screw holes at top of cutting
guard (see Figure 3-4). Attach edging
wheel using two mounting screws.
