REMINGTON® ELECTRIC TRIMMER/EDGER | 9
118035
4. Remove the line retaining ring from
the spool (see Figure 4-16).
5. Measure out 30 feet of replacement
line.
6. Push one end of the new line through
the left line mounting hole on the
spool (see Figure 4-17).
7. Feed 15 feet of the line through this
hole. Feed the other 15 feet of line
through the right line mounting hole
(see Figure 4-18). Pull the line tight
(see Figure 4-19).

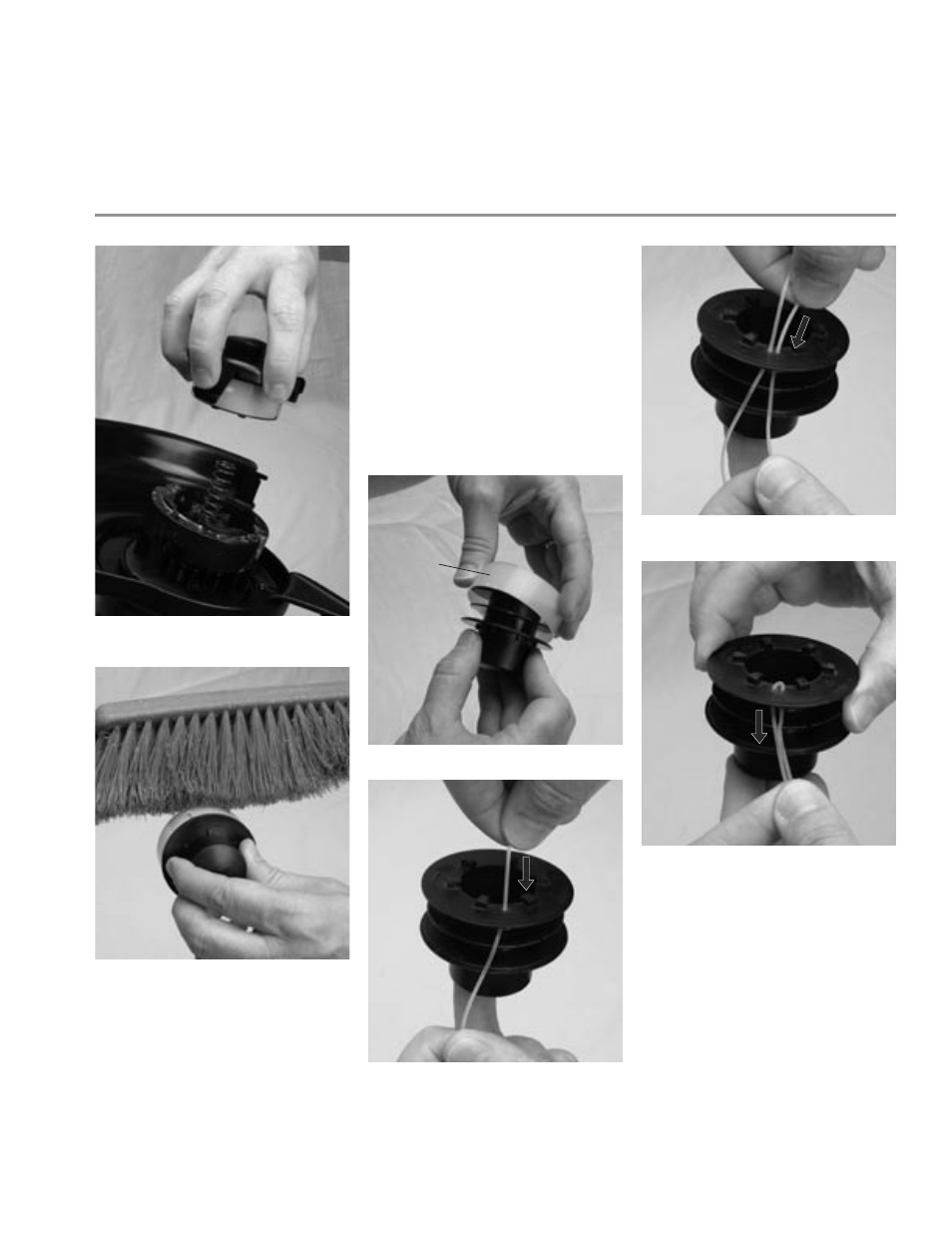

Figure 4-14: Removing spool cover and spool
Figure 4-15: Cleaning spool
Figure 4-16: Removing line retaining ring
Figure 4-17: Inserting line in left hole
Figure 4-18: Inserting line in right hole
Figure 4-19: Pulling line tight
Line Retaining
Ring
Direction of
Line Feed
Direction of
Line Feed
Direction of
Line Feed
