APX-7
Appendix 2

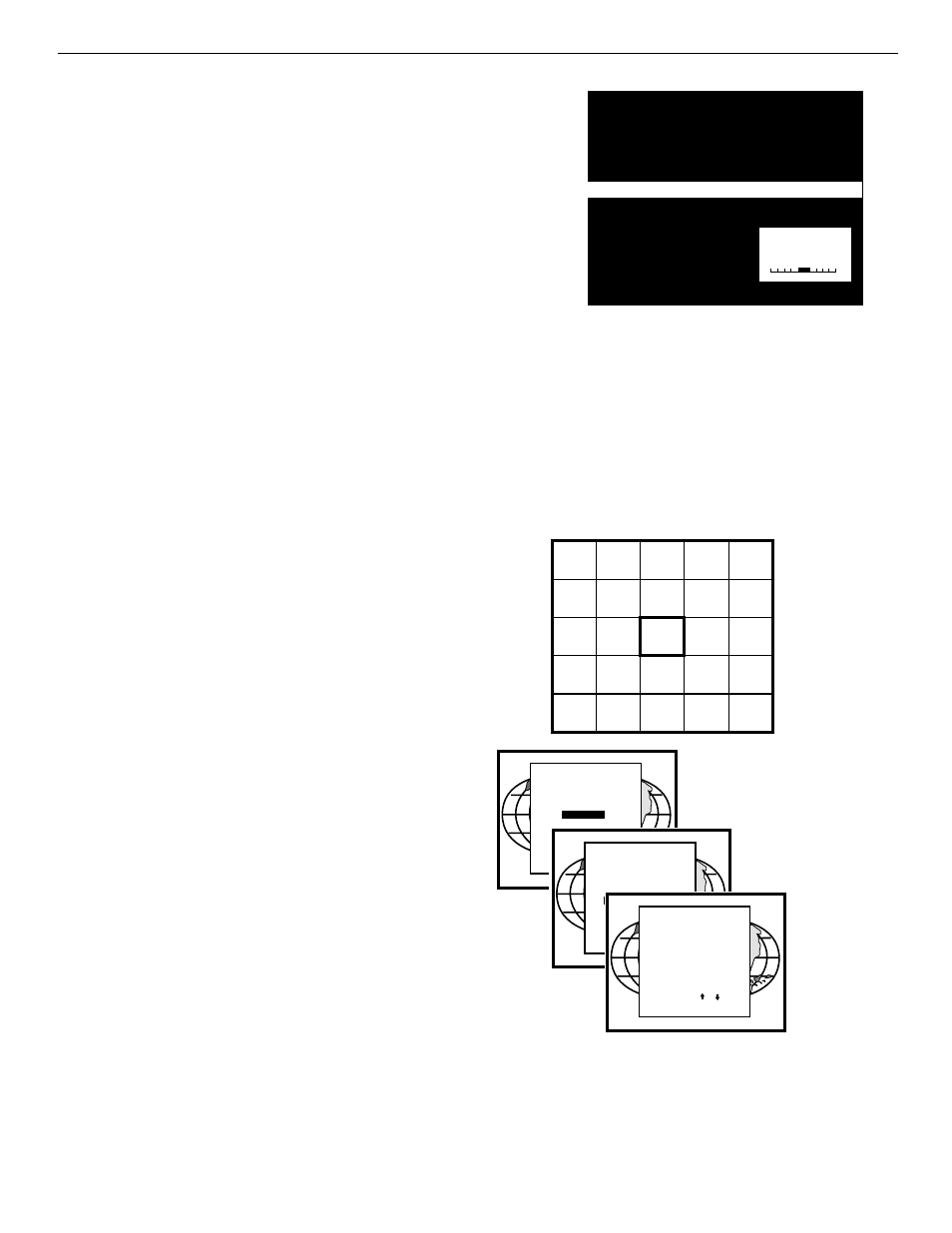

CENTERING THE CAMERA VERTICALLY
One horizontally centered green bar will be projected onto
the screen, together with a text box. Inside the box, the text
of “CAMERA ALIGNMENT VERTICAL” indicates the item
subject to adjustment and a symmetrical bar scale (from -50
to +50) under the text.
If the indicated value below the bar scale is not equal to zero
(i.e. the black highlight is not in the middle of the bar scale),
the camera is not centered vertically. Follow the steps below
to center the camera vertically:
Turn the knob situated on lower-left corner of the cam-
era clockwise or counter clockwise until the highlight is
in the middle of the bar scale (i.e. the indicated value
becomes zero).
After finishing the vertical centering, press the
button to return to the EYE-QTM menu.
When installed in a retro projector, the centering procedure
is not necessary and not possible as the camera mounting is
fixed.
SET TOUCH-UP OPTIONS
For convergence purpose, the screen is divided into 25
areas. Every area has its unique number from 1 to 25.
Touch-up adjust the Area No. 1. This adjustment is also
called the “static convergence”.
The Touch-up can be set on Source or on Timer.
Touch-up on Source means when switching from one source
to another, the static convergence will be carried automati-
cally.
Touch-up on Timer means whenever the user-defined period
of time has elapsed the static convergence will be adjusted
automatically.
Touch-up is an option the customer can use periodically after
a final install is complete. This will insure image quality is at
its best.
TOUCH-UP ON SOURCE ON/OFF
Follow the steps below to set the option ON/OFF:
Push up or down keys of the control disc to highlight ON
SOURCE SWITCH: off;
Press the
TM
menu.
+00
CAMERA
ALIGNMENT
VERTICAL
25
23
9
15
17
24
22
8
14
16
3
2
1
4
5
12
13
10
11
6
7
18
20
19
21
EYE-Q
TOUCH UP
AUTOCONVERGENCE
QUICK AUTOPICTURE
FULL AUTOPICTURE
EYE-Q SETUP
EYE-Q DIAGNOSTICS
Select with
then
or
EYE-Q SETUP
FOCUS THE LENS
CENTER THE CAMERA
CONFIGURATION: rear/front
LEARN REFERENCE
TOUCH-UP OPTIONS:
Select with
then
or
TOUCH-UP OPTIONS
ON SOURCE SWITCH : on/off
ON TIMER : on/off
-h.- min.
Select with
then
or
