Random Access Adjustment Mode
Convergence Adjustment
Convergence adjustments affect both the horizontal and vertical lines of the
setup pattern. These adjustments are performed on the red image while
superimposed on the green image and then on the blue image while super-
imposed on the green image.
Start with the coarse convergence adjustments and finalize with the fine
convergence adjustment.

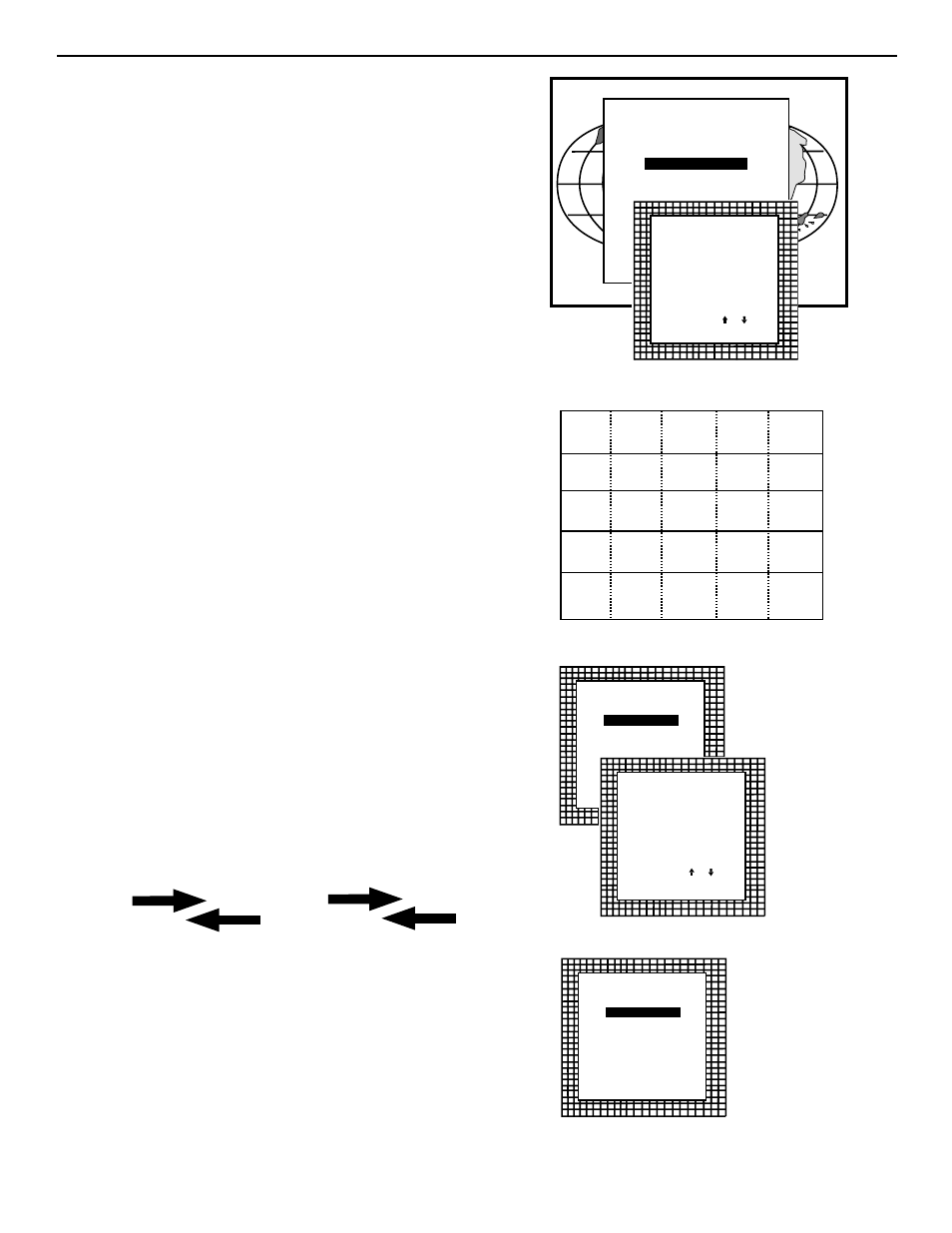

The screen area is divided into 25 areas.
Coarse Convergence Adjustments
Highlight ‘Red on Green’ under the coarse convergence item and press
ENTER. The coarse convergence menu will be displayed.
The following items are possible:
* Horizontal sides: adjust the vertical lines, within a certain area, on both
sides without influencing the lines on the middle of the image.
* Vertical corners: adjust the horizontal lines in the four corners, within a
certain area, without influencing the middle of the image.
Repeat for ‘blue on green’
Horizontal sides
Highlight “Horizontal lines’ and press ENTER to start the adjustment. To
make a coarse adjustment of the red or blue vertical lines in ZONE 3 and
5 simultaneously.
Hint
* Look to the outside edges of the image and adjust until the red or the blue
vertical lines are on the green lines or as close as possible to the green
lines.
* During these adjustments, the horizontal convergence adjustments in
ZONES 2, 3, 4, and 5 will be set to midposition (barscale 50)
