ROTEL RDV-1040 - Manual (Page 3)

3
1
2
3
4
5
TV / DVD switch
OPEN/CLOSE button
REPEAT button
Numeric buttons
SUB TITLE button
ANGLE button
TITLE / GROUP button
/ PREVIOUS button
(STOP) / CLEAR button
/ SLOW – button
TOP MENU button
VOLUME – / CURSOR button
CHANNEL – / CURSOR button
CHOICE button
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Infrared output window
DVD POWER button
TV POWER button
RETURN button
DIMMER button
VSS button
+10 / MUTING button
TV/VIDEO / CANCEL button
AUDIO / fs/RATE button
ZOOM button
VFP / PROG SCAN button
/ NEXT button
(PAUSE) button
(PLAY)/ SELECT button
/ SLOW + button
MENU button
CHANNEL + / CURSOR button
VOLUME + / CURSOR button
ON SCREEN button
ENTER button
6
7
8
9
10
11
12
13
14

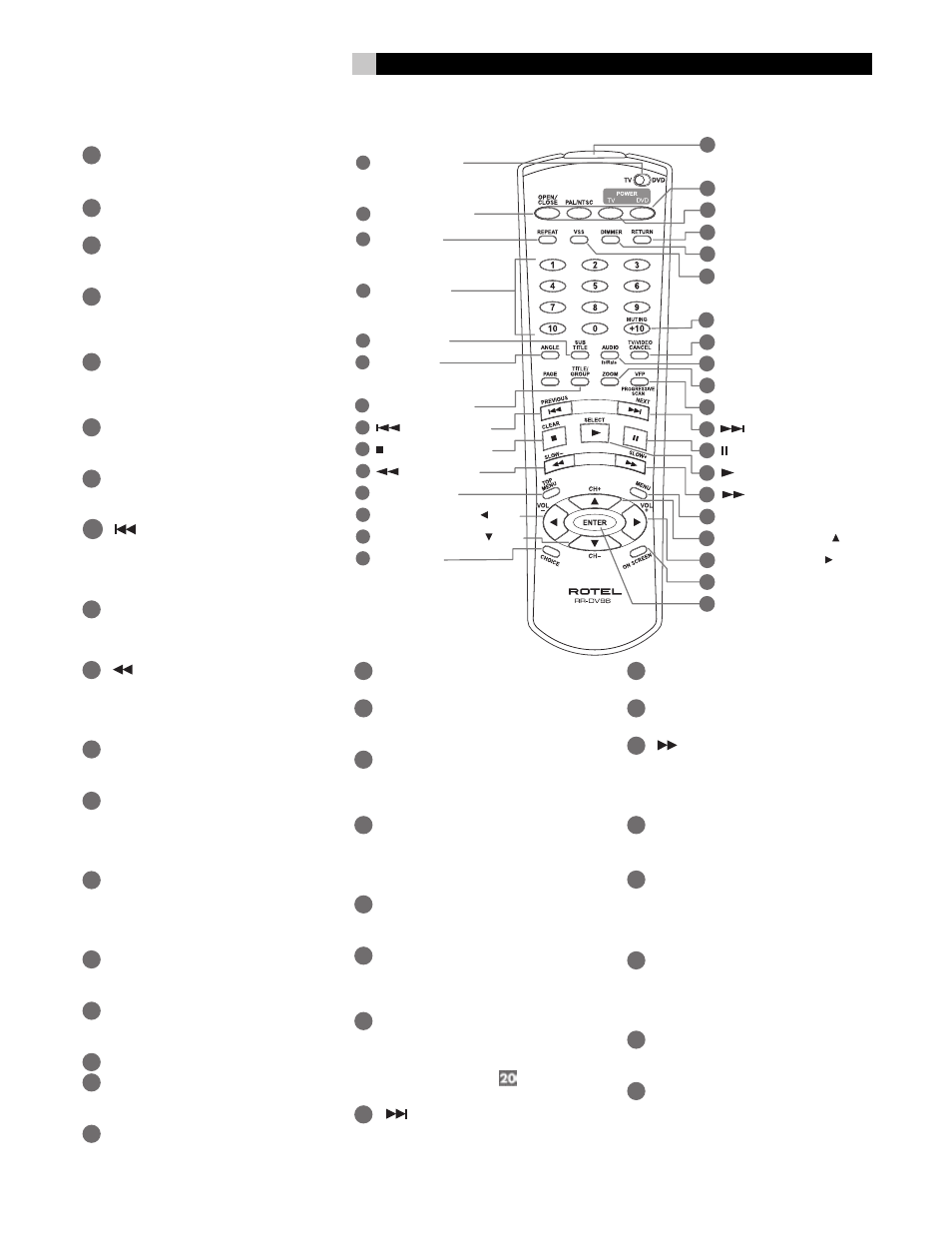

Figure 1: RR-DV96 Remote Control
1 TV/DVD switch
Switches the RDV-1040 between TV control mode
and the DVD player control mode.
2 OPEN/CLOSE button
Opens and closes the disc tray.
3 Repeat button
Switches the RDV-1040 among “no repeat” mode,
“repeat 1” mode and to “repeat all” mode.
4 Numeric buttons
In DVD/CD mode use these to select a title or track
number, to enter a time for the Time search. In
TV mode they are used to select a TV channel.
5 SUBTITLE button
Used to activate the on-screen subtitle selection
display and to turn the subtitle on or off (for DVD
VIDEO).
6 ANGLE button
Changes camera angles during playback of a DVD
VIDEO disc containing multiple camera angles.
7 TITLE/GROUP button
Displays the title menu of a DVD Video disc on
the TV screen. Group function not used.
8 /PREVIOUS button
Skips back a chapter, title or track. Also used for
the page selection of a menu screen (for DVD
VIDEO/Video CD). Holding down this button dur-
ing playback rapidly scans to earlier scenes.
9 ■ (STOP)/CLEAR button
Stops playback. Also used to erase all the pro-
grammed tracks for the program play.
10 /SLOW – button
During playback lets you reverse disc play at 1.5
to 60 times normal speed. When disc play is
paused press to reverse disc play at 1/2 to 1/32
normal speed.
11 TOP MENU button
Press to display a menu to select specific scenes
on a disc.
12 VOLUME –/CURSOR Button
When in TV mode press to reduce volume. When
in DVD mode press to select an item from a menu
or on-screen display, or to change the setting of
an item in the on-screen display.
13 CHANNEL –/CURSOR Button
When in TV mode press to go to a lower chan-
nel. When in DVD mode press to select an item
from a menu or on-screen display, or to change
the setting of an item in the on-screen display.
14 CHOICE button
Displays the DVD set-up menu. Is also used when
selecting parental lock settings
15 Infrared signal output window
Point this toward the remote sensor on the front
panel when pressing buttons.
16 DVD POWER button
17 TV POWER button
Press to turn the RDV-1040 or your TV on or off
(standby).
18 RETURN button
Returns to the previous menu (for SVCD/Video
CD).
19 DIMMER button
Adjusts the brightness or turns off the display.
20 VSS button
Turn on/off the simulated Virtual Surround Sound
system.
21 +10/MUTING button
Used when selecting or programming numbered
tracks or scenes above 10. During disc play press
to mute sound.
22 TV/VIDEO/CANCEL button
Used to switch inputs when controlling the TV. Used
to remove selected items when setting up pro-
grammed track play. ALso used when setting up
the RR-DV96 to control the TV.
23 AUDIO/fs/RATE button
Selects various audio options during disc play. fs/
RATE function is not used.
24 ZOOM button
When viewing video discs allows the image on
the screen to be enlarged from 1.8 to 64 times
normal size.
25 VFP/PROG SCAN button
The VFP function is used to set video play prop-
erties. Progressive Scan function is used to select
interlaced or progressive scan output when the
Video Signal Selector switch is set to Remote.
See the Audio/Video Connections section.
26 /NEXT button
Skips forward a chapter, title or track. Holding
down this button during playback advances play-
back rapidly.
27 II (PAUSE) button
Pauses playback.
28 (PLAY)/SELECT button
Starts playback.SELECT function is not used.
29 /SLOW button
During playback lets you advance disc play at 1.5
to 60 times normal speed. When disc play is
paused press to advance disc play at 1/2 to 1/32
normal speed.
30 MENU button
Displays various menus that let you select items
from the disc.
31 CHANNEL +/CURSOR Button
When in TV mode press to go to a higher chan-
nel. When in DVD mode press to select an item
from a menu or on-screen display, or to change
the setting of an item in the on-screen display.
32 VOLUME +/CURSOR Button
When in TV mode press to increase volume. When
in DVD mode press to select an item from a menu
or on-screen display, or to change the setting of
an item in the on-screen display.
33 ON SCREEN Button
Displays various menus on the screen that let you
select control and programing functions.
34 ENTER button
Press to accept various selections such as chan-
nels selected with the numeric buttons or in some
programming steps.
