9 Installation

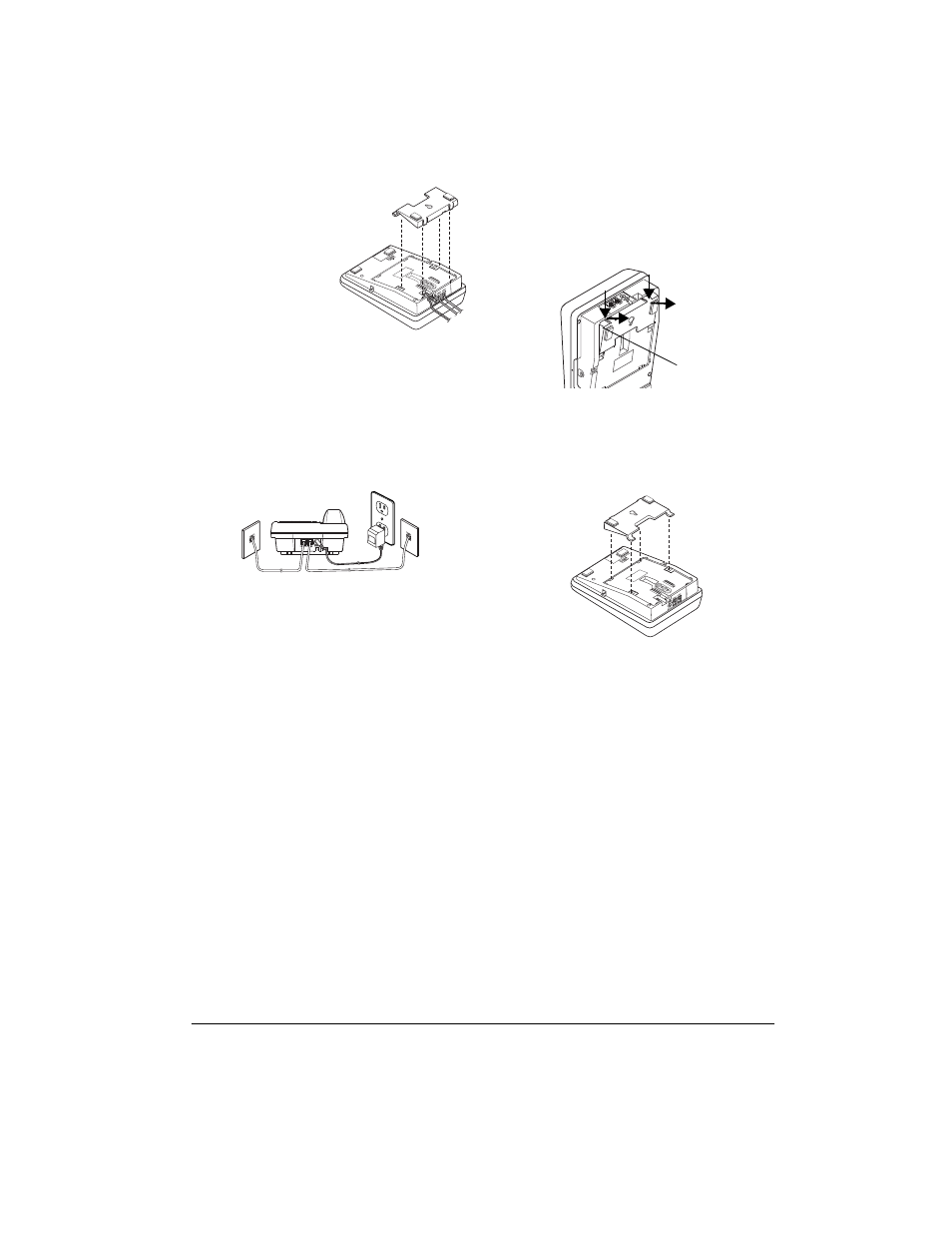

4. Insert the tabs on
the narrow end
of the mounting
bracket into the
upper slots near
the center of the
base, push the
wide end of the
bracket until it
clicks into place,
then place the phone on the desk.
5. Plug the modular cord’s other ends into
the modular phone line jack(s) for Lines
1 through 4, then plug the AC adapter
into a standard AC outlet.
Initial-
izing.. briefly appears, then JAN 01
12:00 AM/EXT 11 FRI appears.
6. Plug one end of the coiled cord into the
modular jack on the handset. Then con-
nect it to the jack on the left side of the
base. Place the handset in the cradle.
Note: Your local RadioShack store sells
a variety of longer coiled handset cords,
which are especially useful when you
mount the phone on the wall.
On a Wall or Wall Plate
To mount the phone directly on a wall, you
need two screws (not supplied) with heads
that fit into the keyhole slots on the bottom of
the phone.
If you are mounting the phone directly on the
wall, drill two holes 3
15
/
16
inches (100 mm)
apart. Then thread a screw into each hole,
letting the heads extend about
3
/ 16 inch (5
mm) from the wall.
1. Remove the mounting bracket from the
bottom of the base by pressing and
holding in both spring tabs, then gently
pulling the wide end of the bracket and
lifting it off.
2. Insert the tabs on the narrow end of the
mounting bracket upward into the lower
slots near the center of the base, then
push down on the wide end of the
bracket until it clicks into place.
3. Plug one end of the long modular line
cord (or the two-line short cord for wall
plate) into
L1/L2 on the back of the
phone. Then plug one end of the other
long modular line cord into
L3/L4 .
4. Insert the supplied AC adapter's barrel
plug into POWER 12VDC 400mA on the
back of the phone, then route the
adapter cord through the strain relief slot
on the back of the base.
5. To mount the phone on a wall plate, plug
the other end of the short line cord into
the two-line wall plate jack, and the end
of the other long line cord into the other
modular wall jack. Then align the
phone's keyhole slots with the wall plate
studs and slide the phone downward to
secure it.
Line 1
Line 2 Line 3
Line 4
Wide End
