user manual
manual de usuario
EN/E
It is important to read this user manual prior to using your new product for the fi rst time.
Es importante leer este manual antes de usar por vez primera su equipo.
RP5435
RP5435R
v8.0 (1.0.8.0) (EN/E)
Illustrations contained within this Illustrations contained within this
publication are for representation
publication are for representation
only and subject to change.
only and subject to change.
The descriptions and The descriptions and
characteristics given in this
characteristics given in this
document are given as a general
document are given as a general
indication and not as a guarantee.
indication and not as a guarantee.
In order to provide the highest
In order to provide the highest
quality product possible, we
quality product possible, we
reserve the right to make any
reserve the right to make any
improvement or modifi cation
improvement or modifi cation
without prior notice.
without prior notice.
Before you begin
Refer to the “Clock” section
and follow the instructions
to get the clock time shown
correctly with the Auto Clock
set feature.
Battery back-up operation
This clock radio is equipped with
a memory holding system that
can be powered with 2 “AA”
batteries (included). The power
failure protection circuit will not
operate unless battery is installed.
When normal household power
is interrupted, or AC line cord
is unplugged, the batteries will
power the clock radio to keep
track of time and alarm settings
programmed into memory. When
the battery backup functions,
the digital display will not light,
however, the function of alarm
still occurs during the power
interruption if remaining battery
power is adequate. Normal
operation will resume after AC
power is restored so you will not
have to reset the time or the alarm.
Install battery as follow:
1. Remove battery compartment
door (located at the bottom of
the radio) by applying thumb
pressure to the tab on battery
door and then lift the door
out and off the cabinet.
2. Insert 2 AA batteries
(included).
3. Replace the compartment door.
Note: we recommend that you
replace the batteries every year.
Power is fed to the unit
even when it is not
functioning. To cut the
power supply off, the power
cable must be unplugged.
Power failure indicator
When AC power is interrupted
(disconnected) for a short period of
time, both time and alarm settings
will change (unless batteries are
installed). After AC power is
restored (reconnected), the Digital
Display will blink to indicate that
power was interrupted and you
should readjust the time and alarm
settings.

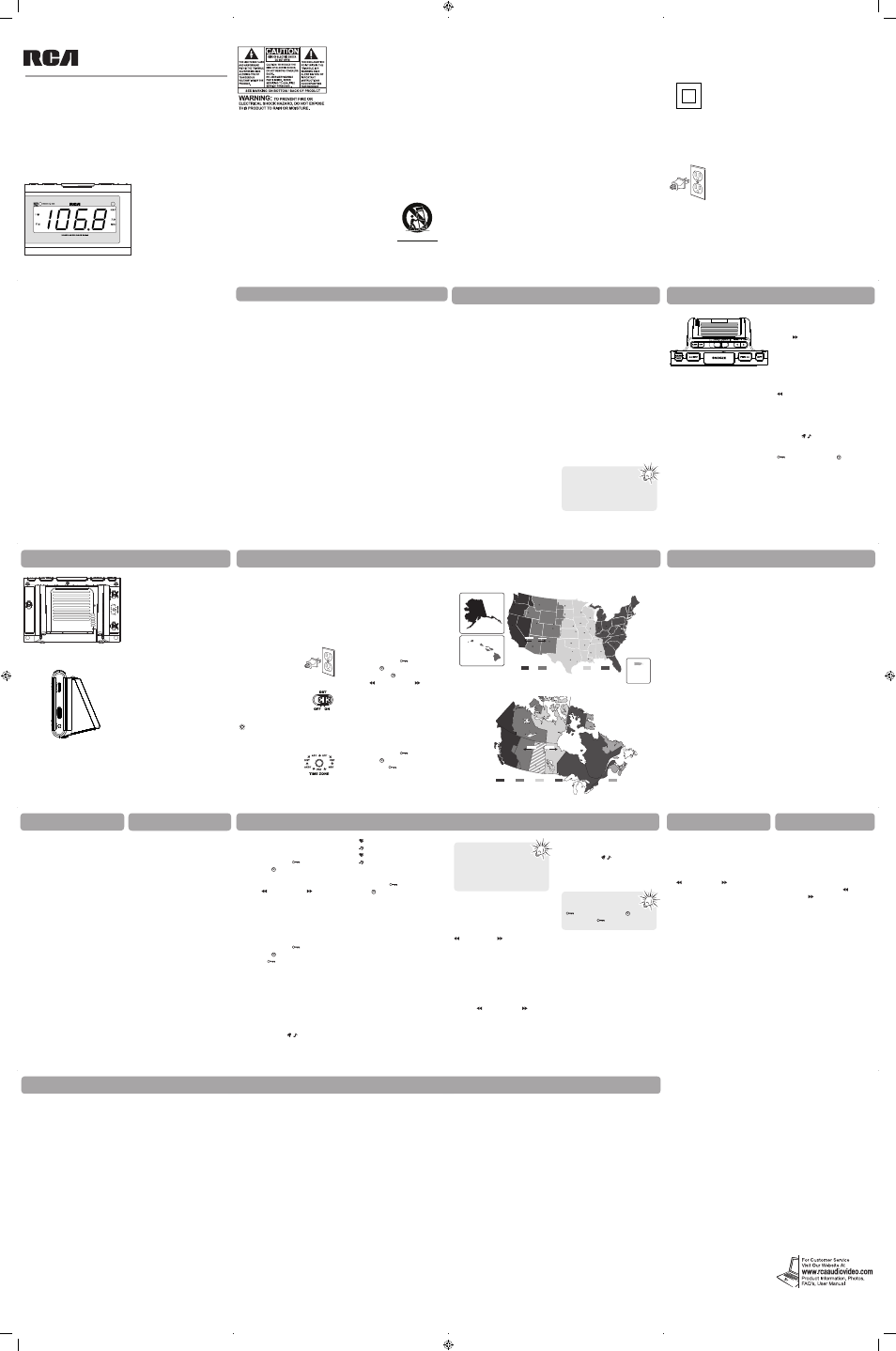

Top view
OFF – turns the unit off.
FWD – sets time (increases
value).
SNOOZE – enters snooze mode
where the alarm will quiet but
sound again once the snooze
period is over.
REV – sets time (decreases
value).
RADIO/AUX – selects radio or
AUX mode.
WAKE – OFF – activates and
sets wake function.
/WAKE1/WAKE2/ – slide
switch to set Wake 1, Wake 2 and
clock time.
NAP – activates nap function.
SLEEP – activates sleep function.
General controls
General controls
Back view
AUTO DIMMER – turns auto
dimmer function on or off.
TIME ZONE – press repeatedly to
select a time zone.
DST – turns daylight saving
function on or off.
AM/FM – selects between AM and
FM bands.
Right view
–VOLUME+ – adjusts volume.
TUNING – selects radio
frequencies.
AUX IN – AUX input jack.
Clock
Setting clock manually
1. Slide the switch /WAKE1/
WAKE2/ on the top of the
unit to clock position.
2. Press REV or FWD to
set the clock time. The time
decrements or increments
will follow by a faster rate
when you press and hold the
buttons. The “:” between hour
and minute time fl ashes when
you are setting the time. AM
or PM icon will also beside the
time.
3. Slide the switch /WAKE1/
WAKE2/ on the top of the
unit to lock
position when
fi nished.
US time zones
Radio
Selecting radio mode
Press RADIO/AUX to switch on
radio.
Switching band
Slide the AM/FM switch on the
back of the unit to select FM or
AM band.
Tuning the radio
Turn the TUNING knob on the
right of the unit to adjust radio
frequency. Radio frequency shows
on the display.
Built-in AFC
The Built In Automatic Frequency
Control (AFC) works only on FM.
It helps reducing drift on FM
reception and keeping the radio
locked in on the FM station to
which it is tuned.
When tuning in FM stations, you
may notice that the station you
are tuning can be well-tuned on
two or three nearby points on the
dial. Always tune carefully at the
loudest and clearest point.
AM antenna
A built-in ferrite rod antenna
eliminates the need for an outside
antenna for AM reception.
Rotating the unit slightly may
improve reception of distant AM
stations.
Auxiliary source
1. Connect your auxiliary source
(e.g. mp3 player) to the AUX
input jack on the right side of
the unit with the audio cable
supplied.
2. Turn on the unit and your
auxiliary source.
3. Press RADIO/AUX to switch to
listen to auxiliary source. The
AUX indicator on the front will
turn on. Press again to switch
back to listen to the radio.
Auto brightness control
Setting wake time
This unit allows two wake times
to be set.
1. Slide the switch
/WAKE1/
WAKE2/ on the top of the
unit to WAKE 1 or WAKE 2
position.
2. Press REV or FWD to set
the respective wake time. The
time decrements or increments
will follow by a faster rate
when you press and hold the
buttons. The “:” between hour
and minute time fl ashes when
you are setting the time.
3. Slide the switch /WAKE1/
WAKE2/ on the top of the
unit to
position when
fi nished.
Selecting wake source
You may be woken up by radio
or alarm.
1. Select an AM or FM station
(see directions on “Radio”).
2. Set a wake time (see above
direction).
3. Press WAKE – OFF 1 or 2
repeatedly on the top of the
unit to select a waking mode.
Corresponding icon lights on
the front of the unit.
Turning off the wake
alarm or radio
Press SNOOZE on the top of the
unit. The wake alarm or radio will
be switched off temporarily. The
alarm or radio will be on again
when the snooze period is over.
(see “SmartSnooze
TM Operation”)
To turn off the wake alarm or
radio completely, press OFF. The
wake alarm or radio will activate
again the next day unless you
switch off the Wake function (see
“Switching off Wake Function”).
1 – Wake 1 by alarm
1 – Wake 1 by radio
2 – Wake 2 by alarm
2 – Wake 2 by radio
Checking wake time
Slide the switch /WAKE1/
WAKE2/ on the top of the unit
to WAKE 1 or WAKE 2 position to
check the currently set wake time.
The unit equips with
GRAD-U-WAKE
feature, the alarm tone
volume will increase
gradually to its maximum in
about 30 to 45 seconds.
Wake function
SmartSnooze TM operation
This operation allows extra sleep
time after the wake function is on.
The alarm will be off by pressing
SNOOZE, NAP, SLEEP,
REV or FWD until the snooze
period is over. Snooze function
can be used repeatedly up to 30
minutes (default: 9 minutes). After
this, the wake function will turn
off until the next day.
Set the “quiet” period as follow:
1. Press and hold SNOOZE.
2. Press
REV or FWD to set
the quiet period. The time
decrements or increments
will follow by a faster rate
when you press and hold the
buttons.
SmartSnooze TM is only
available when
/WAKE1/WAKE2/ is
at the lock position.
Switching off wake
function
Press WAKE – OFF 1 or 2
repeatedly on the top of the unit
until no wake mode icon shows
on the display.
In sleep mode, you can set the
duration (up to 2 hours) before
the radio turn off automatically.
1. Press and hold SLEEP on the
top of the unit and use
REV or FWD to set the
duration up to 2 hours. The
time decrements or increments
will follow by a faster rate
when you press and hold the
buttons.
Note: The radio will be
switched on.
2. To check the remaining
duration before the radio turns
off, press and hold SLEEP.
3. To cancel the sleep function,
press SNOOZE or OFF.
Sleep function NAP function
This function wakes you up after
a short period of time (from 10
minutes to 2 hours, default: 20
minutes).
1. Press NAP once on the top of
the unit. The NAP icon fl ashes
on the display. Press REV
or FWD
to set the NAP
duration up to 2 hours (each
press decreases or increases
duration by 10 minutes).
2. The clock time shows after a
few seconds if no button is
pressed. NAP icon shows on
the display to indicate the
function is activated.
3. To check remaining NAP time,
press NAP once to show the
time on the display briefl y
with the NAP icon fl ashing on
the display.
4. When the alarm sounds, press
SNOOZE to switch it off.
• To cancel the function before
the nap time ends, press and
hold NAP until no nap icon
shows on the display.
Warranty information
Clock time and radio frequency
are display on the display area
at the front of the unit. The
display brightness can be adjusted
automatically by analyzing the
intensity of surrounding light
sources.
Slide AUTO DIMMER on the back
of the unit to ON position to
activate the function.
Canadian time zones
Auto clock set
You do not have to set the clock
time as a built-in automatic time
set system is equipped in this
clock powered by 2 AA batteries
(included and installed).
Follow the instructions below to
get the clock time shown correctly.
1. Plug for power
Insert the plug of the
unit into an AC power
outlet.
2. Select daylight saving
Slide the DST switch
at the back of the unit
to turn on/off in areas
observing/not observing
such time change. The icon
shows on the display when
daylight saving time is active.
3. Select your time zone
Press TIME ZONE
repeatedly at the back
of the unit to cycle
through the time
zones (EST > CST > MST > PST >
AKST > HST > AST > EST...). The
default time zone is Eastern (EST)
(refer to the maps on the right).
Your clock is now set and
ready for use.
WARNING: Please avoid playing
with these buttons after entering
the Clock/Alarm set mode.
12 Month Limited Warranty
Applies to RCA Audio/Video
Products
AUDIOVOX ELECTRONICS CORP.
(the Company) warrants to the
original retail purchaser of this
product that should this product
or any part thereof, under
normal use and conditions, be
proven defective in material
or workmanship within 12
months from the date of original
purchase, such defect(s) will
be repaired or replaced with
reconditioned product (at the
Company’s option) without charge
for parts and repair labor.
To obtain repair or replacement
within the terms of this Warranty,
the product is to be delivered with
proof of warranty coverage (e.g.
dated bill of sale), specifi cation of
defect(s), transportation prepaid,
to the Company at the address
shown below.
This Warranty does not extend
to the elimination of externally
generated static or noise, to
correction of antenna problems,
loss/interruptions of broadcast
or internet service, to costs
incurred for installation, removal
or reinstallation of product, to
corruptions caused by computer
viruses, spyware or other malware,
to loss of media, fi les, data or
content, or to damage to tapes,
discs, removable memory devices
or cards, speakers, accessories,
computers, computer peripherals,
other media players, home
networks or vehicle electrical
systems.
This Warranty does not apply to
any product or part thereof which,
in the opinion of the Company,
has suffered or been damaged
through alteration, improper
installation, mishandling, misuse,
neglect, accident, or by removal
or defacement of the factory
serial number/bar code label(s).
THE EXTENT OF THE COMPANY’S
LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE
COMPANY’S LIABILITY EXCEED
THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other
express warranties or liabilities.
ANY IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR
BREACH OF ANY WARRANTY
HEREUNDER INCLUDING
ANY IMPLIED WARRANTY OF
MERCHANTABILITY MUST BE
BROUGHT WITHIN A PERIOD OF 24
MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY. No person
or representative is authorized
to assume for the Company any
liability other than expressed
herein in connection with the sale
of this product.
Some states do not allow
limitations on how long an implied
warranty lasts or the exclusion
or limitation of incidental or
consequential damage so the
above limitations or exclusions may
not apply to you. This Warranty
gives you specifi c legal rights and
you may also have other rights
which vary from state to state.
How to make a warranty claim:
• If your product is capable
of storing content (such
as an mp3 player, digital
voice recorder, etc), it is
recommended to make
periodic backup copies of
content stored on the product.
If applicable, before shipping a
product, make a back up copy
of content or data stored on
the device. Also, it is advisable
to remove any personal
content which you would not
want exposed to others. IT IS
LIKELY THAT CONTENTS AND
DATA ON THE DEVICE WILL BE
LOST DURING SERVICE AND
REFORMATTING. AUDIOVOX
ACCEPTS NO LIABILITY FOR
LOST CONTENT OR DATA, OR
FOR THE SECURITY OF ANY
PERSONAL CONTENT OR DATA
ON THE RETURNED DEVICE.
Product will be returned
with factory default settings,
and without any pre-loaded
content which may have been
installed in the originally
purchased products. Consumer
will be responsible for
reloading data and content.
Consumer will be responsible
to restore any personal
preference settings.
• Properly pack your unit.
Include any remotes, memory
cards, cables, etc. which were
originally provided with the
product. However DO NOT
return any removable batteries,
even if batteries were included
with the original purchase. We
recommend using the original
carton and packing materials.
• Include evidence of purchase
date such as the bill of sale.
Also print your name and
address and a description of
the defect. Send via standard
UPS or its equivalent to:
Audiovox Electronics Corp.
Attn: Service Department.
150 Marcus Blvd.,
Hauppauge N.Y. 11788
1-877-833-3491
• Insure your shipment for loss
or damage. Audiovox accepts
no liability in case of damage
or loss en route to Audiovox.
• Pay any charges billed to you
by the Exchange Center for
service not covered by the
warranty.
• A new or refurbished unit
will be shipped to you freight
prepaid.
What we will do:
Provide you with a new, or at our
option, a refurbished unit. The
exchange unit is under warranty
for the remainder of the original
product’s warranty period.
For Canada Customers, please
ship to:
Audiovox Return Centre
c/o Genco
6685 Kennedy Road,
Unit#3, Door 16,
Mississuaga, Ontario
L5T 3A5
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
Some of the following information
may not apply to your particular
product; however, as with any
electronic product, precautions
should be observed during
handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near
water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
• Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifi ers)
that produce heat.
• Do not defeat the safety
purpose of the polarized
or grounding-type plug. A
polarized plug has two blades
with one wider than the
other. A grounding type plug
has two blades and a third
grounding prong. The wide
blade or the third prong is
provided for your safety. If
the provided plug does not
fi t into your outlet, consult an
electrician for replacement of
the obsolete outlet.
• Protect the power cord
from being walked on or
pinched particularly at plugs,
convenience receptacles, and
the point where they exit from
the apparatus.
• Only use attachments/
accessories specifi ed by the
manufacturer.
• Use only
with the cart,
stand, tripod,
bracket,
or table
specifi ed
by the manufacturer, or sold
with the apparatus. When a
cart is used, use caution when
moving the cart/apparatus
combination to avoid injury
from tip-over.
• Unplug this apparatus during
lightning storms or when
unused for long periods of
time.
• Refer all servicing to qualifi ed
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such as power-supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.
ADDITIONAL SAFETY
INFORMATION
• Apparatus shall not be exposed
to dripping or splashing and
no objects fi lled with liquids,
such as vases, shall be placed
on the apparatus.
• Always leave suffi cient space
around the product for
ventilation. Do not place
product in or on a bed, rug,
in a bookcase or cabinet that
may prevent air fl ow through
vent openings.
• Do not place lighted candles,
cigarettes, cigars, etc. on the
product.
• Connect power cord only to
AC power source as marked on
the product.
• Care should be taken so that
objects do not fall into the
product.
• Do not attempt to disassemble
the cabinet. This product
does not contain customer
serviceable components.
• The marking information
is located at the bottom of
apparatus.
• To be completely disconnect
the power input, the main
plug of apparatus shall be
disconnected from the mains.
• Main plug is a disconnect
device. The main plug should
not be obstructed OR should
be easily accessed during
intended use.
• The ventilation should not
be impeded by covering the
ventilation openings with
items such as newspaper, table-
cloths, curtains etc.
• No naked fl ame sources such
as lighted candled should be
placed on the apparatus.
• Attention should be drawn to
the environmental aspects of
battery disposal.
• The use of apparatus in
moderate climates.
This is class
II equipment
designed with
double or reinforce
insulation so it does
not require a safety connection to
electrical earth (US: ground).
Plugging in for power
AC OUTLET POWER SUPPLY:
120 V~60 Hz
The AC power plug
is polarized (one
blade is wider than
the other) and only
fi ts into AC power
outlets one way.
If the plug will not go into the
outlet completely, turn the plug
over and try to insert it the other
way. If it still does not fi t, contact
a qualifi ed electrician to change
the outlet, or use a different one.
Do not attempt to bypass this
safety feature.
Important battery
precautions
• Any battery may present a risk
of fi re, explosion, or chemical
burn if abused. Do not try to
charge a battery that is not
intended to be recharged, do
not incinerate, and do not
puncture.
• Non-rechargeable batteries,
such as alkaline batteries, may
leak if left in your product for
a long period of time. Remove
the batteries from the product
if you are not going to use it
for a month or more.
• If your product uses more
than one battery, do not mix
types and make sure they are
inserted correctly. Mixing types
or inserting incorrectly may
cause them to leak.
• Discard any leaky or deformed
battery immediately. They
may cause skin burns or other
personal injury.
• Please help to protect the
environment by recycling
or disposing of batteries
according to federal, state, and
local regulations.
]
Portable Cart Warning
Note: This equipment has been
tested and found to comply with
the limits for a Class B digital
device, pursuant to Part 15 of FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in
a residential installation. This
equipment generates, uses, and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications.
However, there is no guarantee
that interference will not occur
in a particular installation. If
this equipment does cause
harmful interference to radio or
television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the
receiving antenna.
• Increase the separation
between the equipment and
receiver.
• Connect the equipment into
an outlet on a circuit different
from that to which the
receiver is connected.
• Consult the dealer or
an experienced radio/TV
technician for help.
Changes or modifi cations not
expressly approved by Audiovox
could void the user’s authority to
operate the equipment.
FCC Information
WARNING: The battery (battery
or batteries or battery pack) shall
not be exposed to excessive heat
such as sunshine, fi re or the like.
Ecology
Help protect the environment -
we recommend that you dispose
of used batteries by putting
them into specially designed
receptacles.
For your records
In the event that service should be
required, you may need the model
number and the serial number. In
the space below, record the date
and place of purchase and the
serial number:
Model No.:
Date of Purchase:
Place of Purchase:
Serial No.:
Service information
This product should be serviced
only by those specially trained in
appropriate servicing techniques.
For instructions on how to obtain
service, refer to the warranty
included in this user manual.
Technical information
Product: CD/Clock Radio
Brand: RCA
Model: RP5435, RP5435R
Power Supply: 120V ~ 60Hz
Power Consumption: 4 Watts
© 2010 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032
Trademark(s) ® Registered
Printed in China
Visit http://store.audiovox.com to find
the best accessories for your products.
