© National Instruments Corp. 5 FP-1600

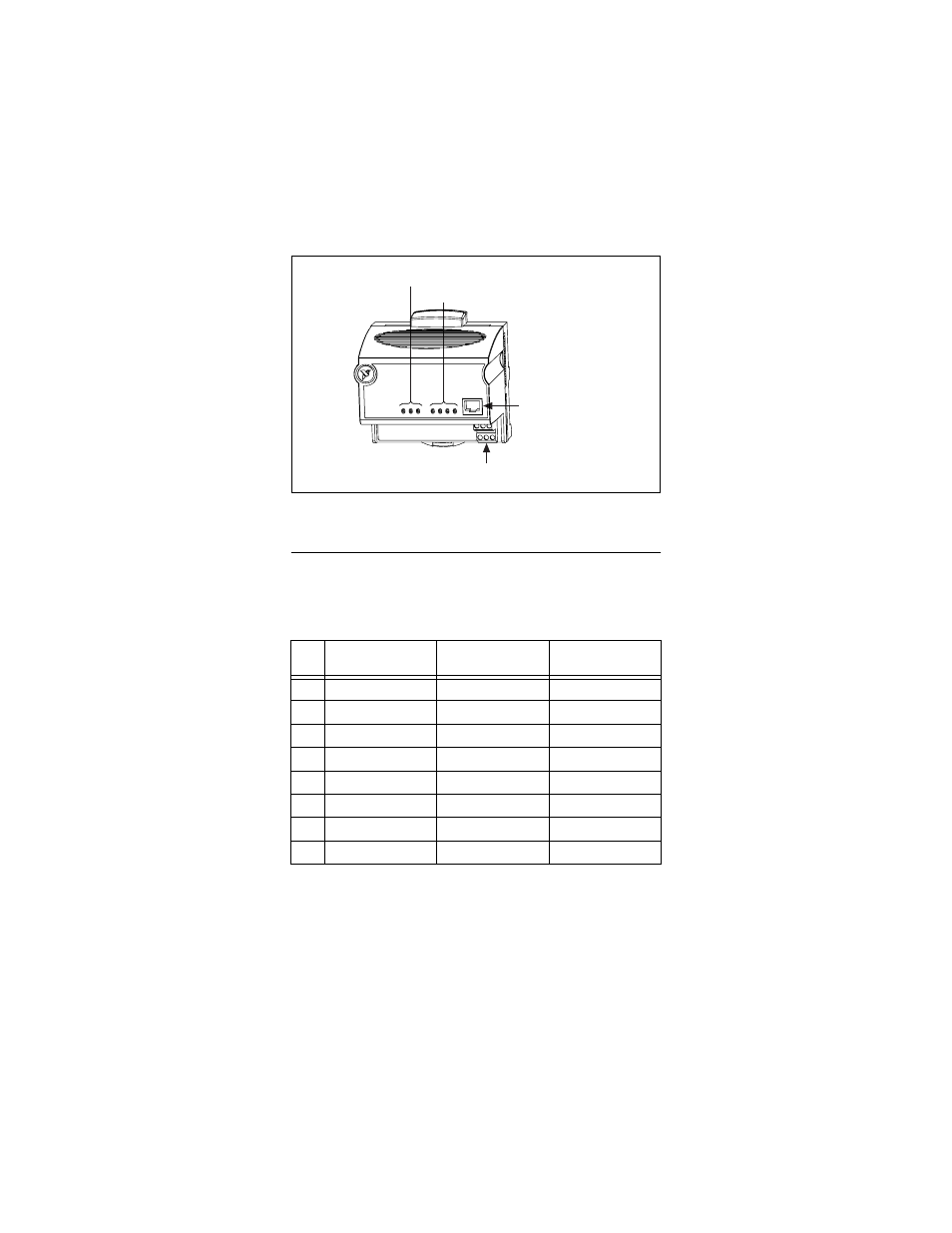

Figure 5. Power and Ethernet Connectors on the FP-1600
Cabling
If you need to build your own cables, the following table shows the
standard ethernet cable wiring connections for both normal and
crossover cables.
Table 1. Ethernet Cable Wiring Connections
Pin Connector 1
Connector 2
(Normal)
Connector 2
(Crossover)
1 white/orange white/orange white/green
2 orange/white orange/white green/white
3 white/green white/green white/orange
4 blue/white blue/white blue/white
5 white/blue white/blue white/blue
6 green/white green/white orange/white
7 white/brown white/brown white/brown
8 brown/white brown/white brown/white
Power Connector
FieldPoint Bank Status Indicators
RJ-45 Ethernet Port
Ethernet Status Indicators
