MODEL 768CHNT
USE AND CARE USE AND CARE
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND
LOCK OUT SERVICE PANEL BEFORE CLEANING OR SERVICING
THIS UNIT.
BULB REPLACEMENT
Remove glass shade. Replace bulbs as required. Replace glass
shade.
Use 60-watt (maximum), B10 type, candelabra bulbs.
MOTOR LUBRICATION
The motor is permanently lubricated. Do not oil or disassemble motor.
CLEANING
TO CLEAN GLASS SHADE AND GRILLE PAN:
Remove glass shade. Shade can be wiped clean with a mild deter-
gent solution or glass cleaner and dried with a soft cloth. Remove
2 bulbs. Grille pan may be gently vacuumed and wiped clean with
a soft cloth. Never use abrasive cloth, steel wool pads or scouring
powders on glass shade or grille pan. METAL AND ELECTRICAL
PARTS SHOULD NEVER BE IMMERSED IN WATER.
TO CLEAN FAN ASSEMBLY:
Remove grille pan and unplug fan assembly (black receptacle).
Gently vacuum fan, motor and interior of housing. METAL AND
ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

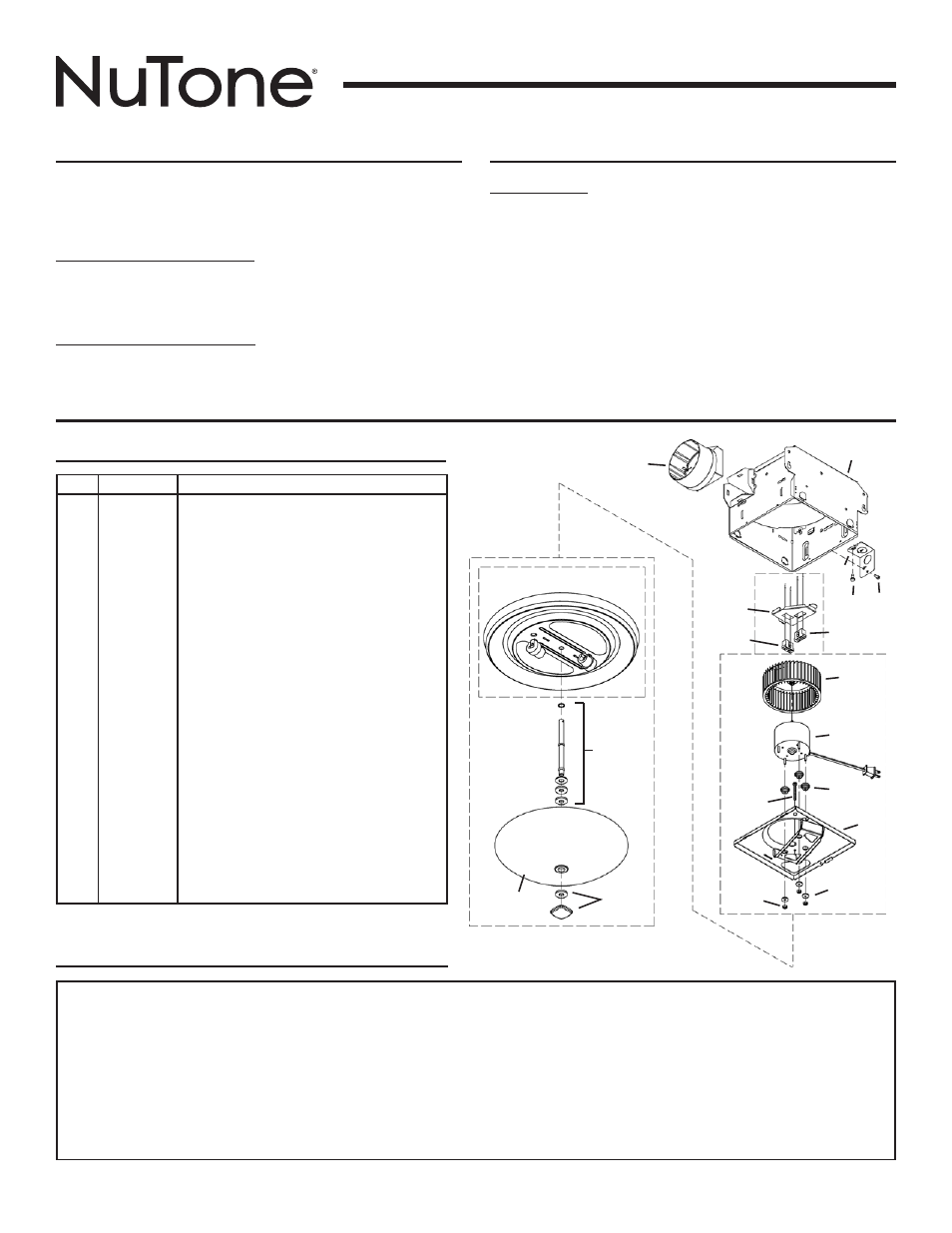

SERVICE PARTS
WARRANTY
99044163E
KEY PART NO. DESCRIPTION
1 99526716 Glass Shade
2 97017794 Shade Mounting Hardware
3 99260558 Motor Nut, Hex Lock #8-32 (4 req.)
4 99250959 Motor Washer (3 req.)
5 99100491 Motor Grommet (3 req.)
6 99150583 Grille Screw
7 97016722 Motor
8 99020276 Blower Wheel
9 99270981 Lamp Receptacle, White
10 99270982 Motor Receptacle, Black
11 98009612 Wiring Panel
12 99150471 Ground Screw
13 99170245 Screw, #8-18 X 3/8”
14 98008868 Wiring Plate
15 97014185 Damper / Duct Connector
16 97014922 Housing Assembly
17 97016630 Motor Plate
A 97017772 Light Fixture Assembly
(Light Fixture Assembly includes
Glass Shade (Key No. 1),
Mounting Hardware (Key No.2),
and Grille Pan Assembly B
B 97017806 Grille Pan Assembly
C 97016671 Blower Assembly
(Includes Key Nos. 3 thru 8)
D 97015171 Wire Panel Assembly
(Includes Key Nos. 9, 10, 11)
Order replacement parts by “PART NO.” - not by “KEY NO.”
1 3
4
5
7
8
9
10
11
13
14
15
16
A
C
D
12
B
2
6
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of origi-
nal purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which
have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.
BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number below, (b) give the model number and part identification and (c) describe the nature of any
defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC Hartford, Wisconsin www.nutone.com 888-336-3948
