13. Locate the VisuaLink 128 or VisuaLink 384
power cable. Plug cable into power strip at
bottom of cabinet and feed cable through cable
slot in rear of second shelf. Plug second end of
power cable into power input at rear of the
VisuaLink 128 or VisuaLink384.
14. The cable bundle is labeled at the ends of the
various connectors. Plug these connectors into
the appropriate devices (camera/monitor) and
feed down through opening at top of cabinet.

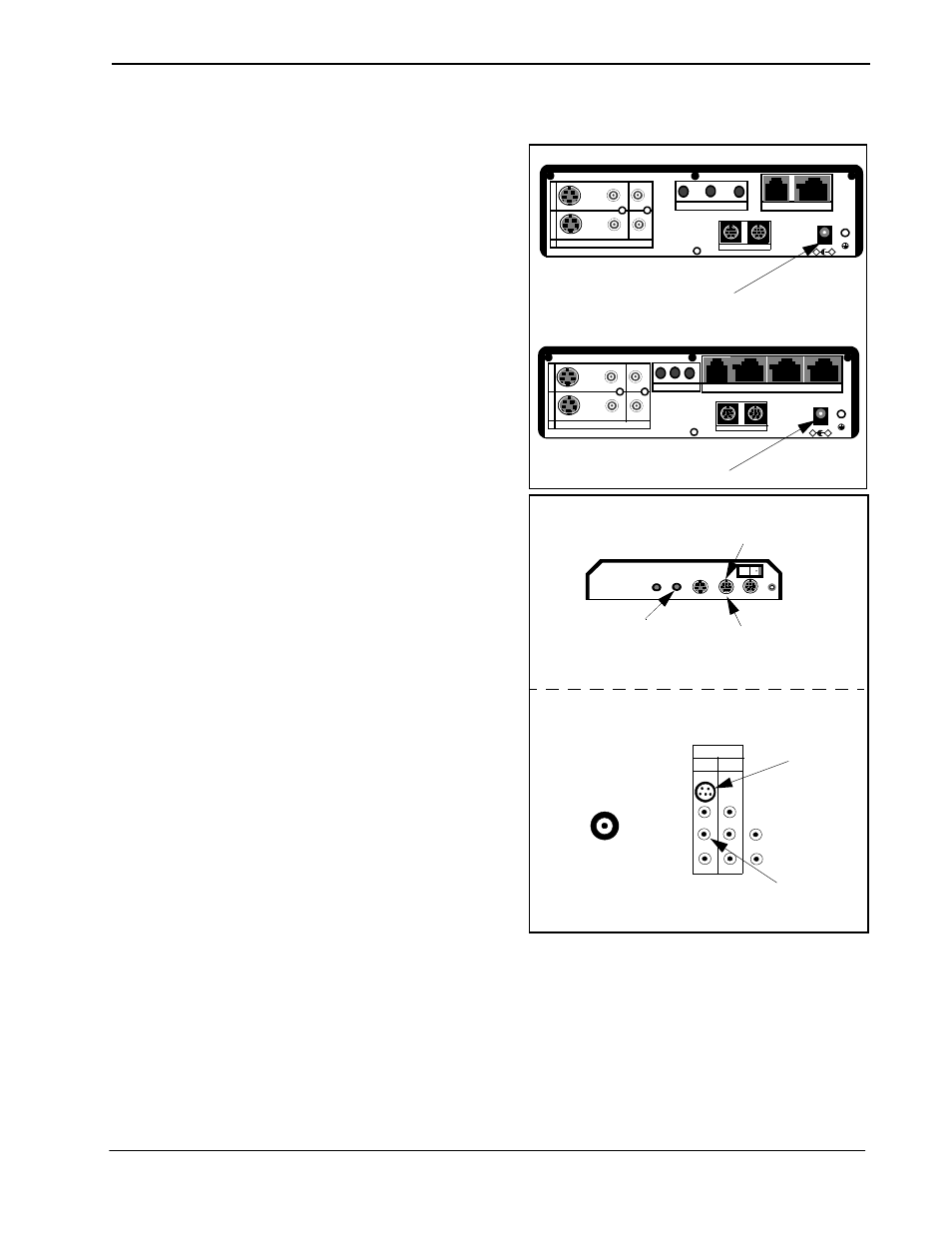

See
Figure 4-1 and Figure 4-2 .
Note: Connector layout could vary by
manufacture. Please consult their
documentation if connector layout is
different.
