Page 70 NB1300_2 ADSL Modem
Appendix A - Connection Instructions

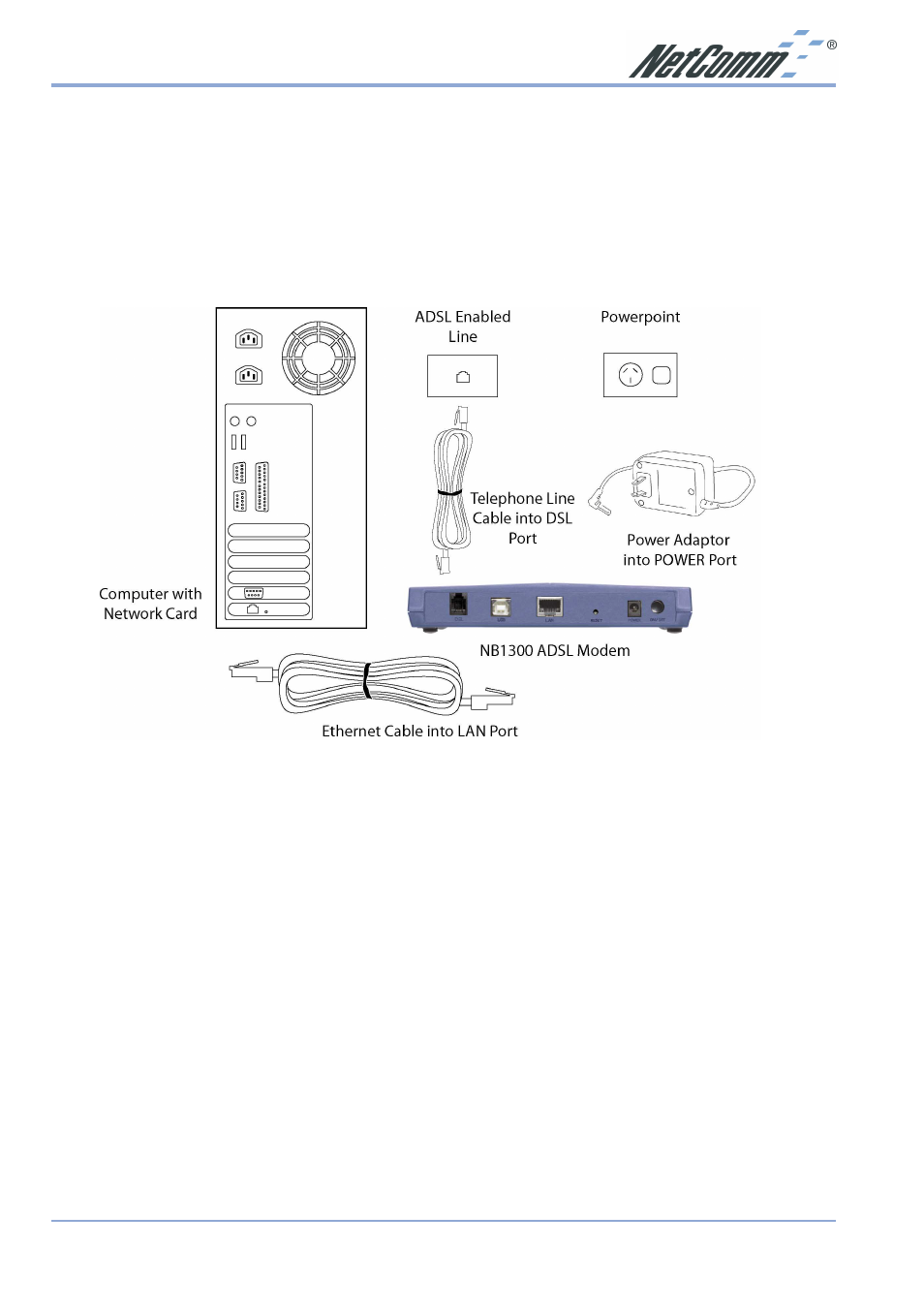

Connect your NB1300 ADSL Modem via Ethernet
1. Connect your NB1300 to either a computer directly or a network hub or siwtch using cat5
ethernet cables. You need to ensure you are using the correct type of etherent cable - ie
straight through or crossover.
2. Connect the power pack to the NB1300 ADSL Modem and switch on the power switch.
3. Ensure that there is a LAN link light on the NB1300.
4. Ensure that the computer you intend to use has an IP address in the same subnet as the
NB1300 ADSL Modem. (e.g. the NB1300’s default IP is 192.168.1.1 - your computer
should be on 192.168.1.100 or similar.) If you have DHCP enabled on your computer, the
NB1300 will assign your computer a suitable IP address.
5. Ensure that your computer has a LAN link light.
6. Connect one end of the ADSL phone line to the NB1300 ADSL Modem and the other end
to the wall socket.
