Security Target, Version 3.9
March 18, 2008
Nortel VPN Router v7.05 and Client Workstation v7.11
Page 12 of 67
© 2008 Nortel Networks
Legend:
TOE Boundary
The World
Enterprise
Corporate
Network
Internet
Nortel
VPN Client
Workstation
Nortel VPN Router
VPN Tunnel
Windows OS
General Purpose
Computing Hardware
Nortel VPN Client
Software
Nortel VPN Switch
Software
VxWorks OS
Contivity Hardware
Appliance

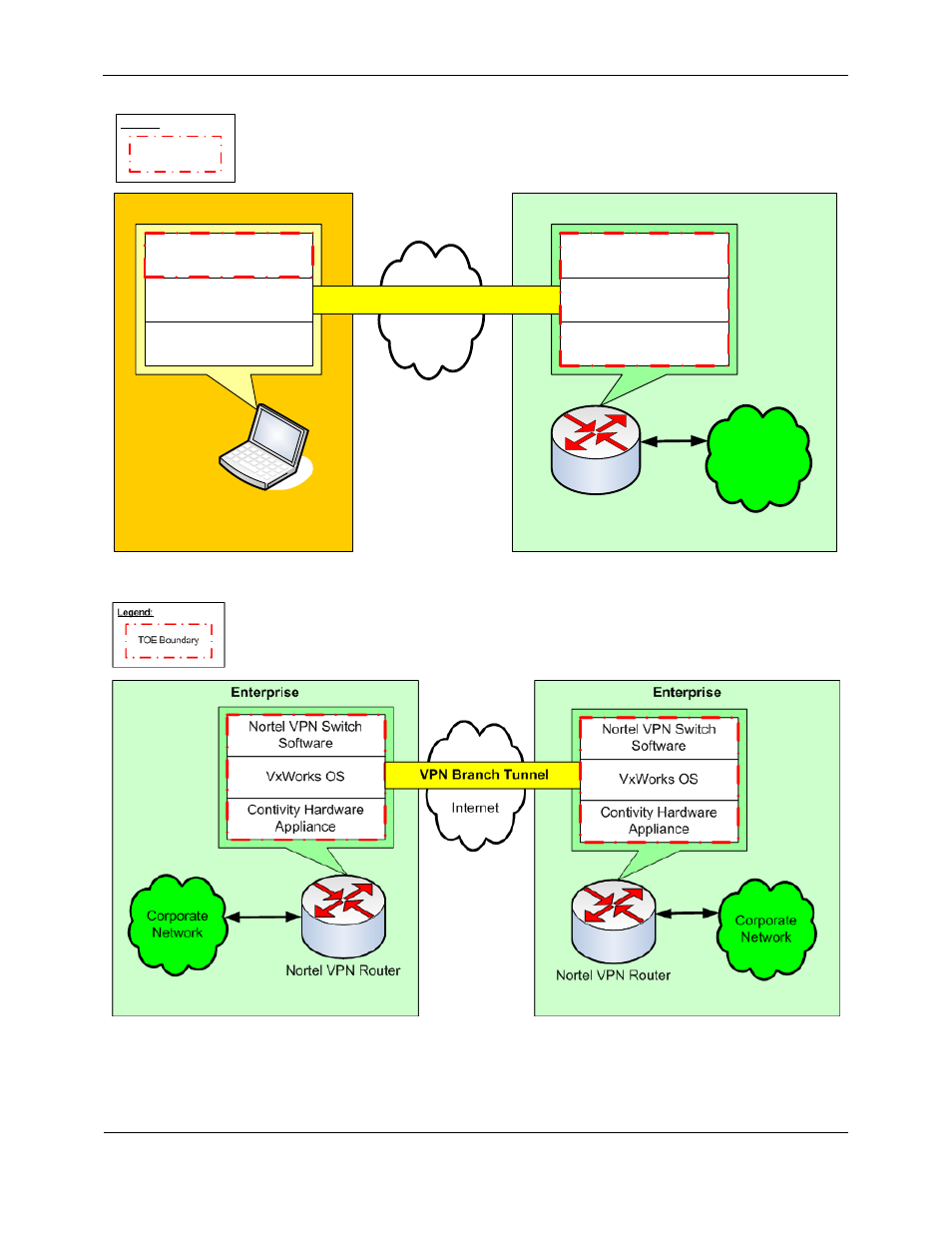

Figure 5 - TOE Logical Boundary
Figure 6 - TOE Logical Boundary in Branch Office Tunnel Mode
The essential logical components of the TOE are:
