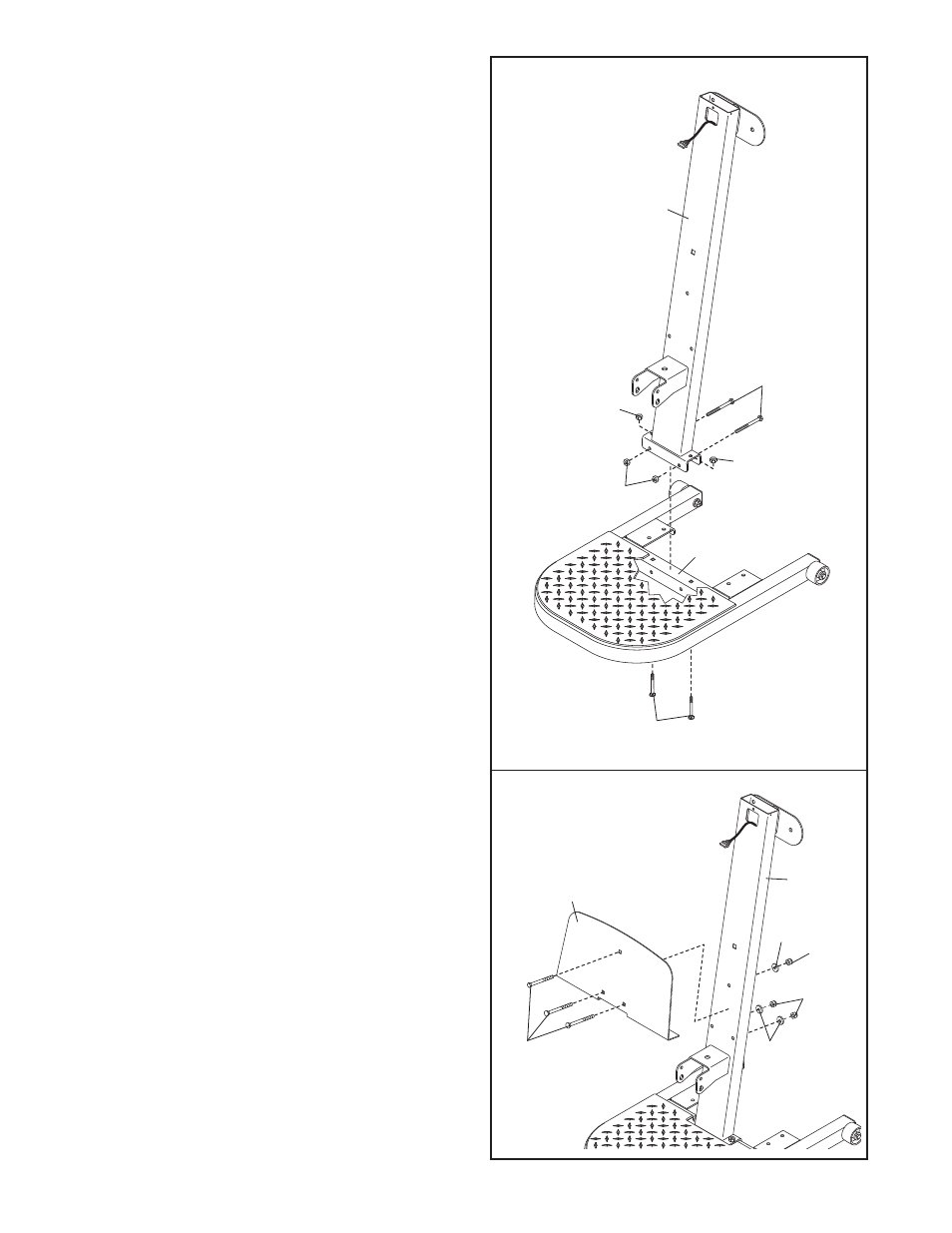

2. Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (89), two M10 x
72mm Bolts (87), and four M10 Nylon Locknuts
(71) as shown.
Note: This step will be easier to
complete if the Upright and Base are tipped
on their sides.
2
1
3. Attach the Foot Plate (4) to the Upright (3) with
three M10 x 70mm Carriage Bolts (88), three M10
Washers (73), and three M10 Nylon Locknuts
(71).
3
87
71
71
71
3
89
88
73
73
71
71
4
3
