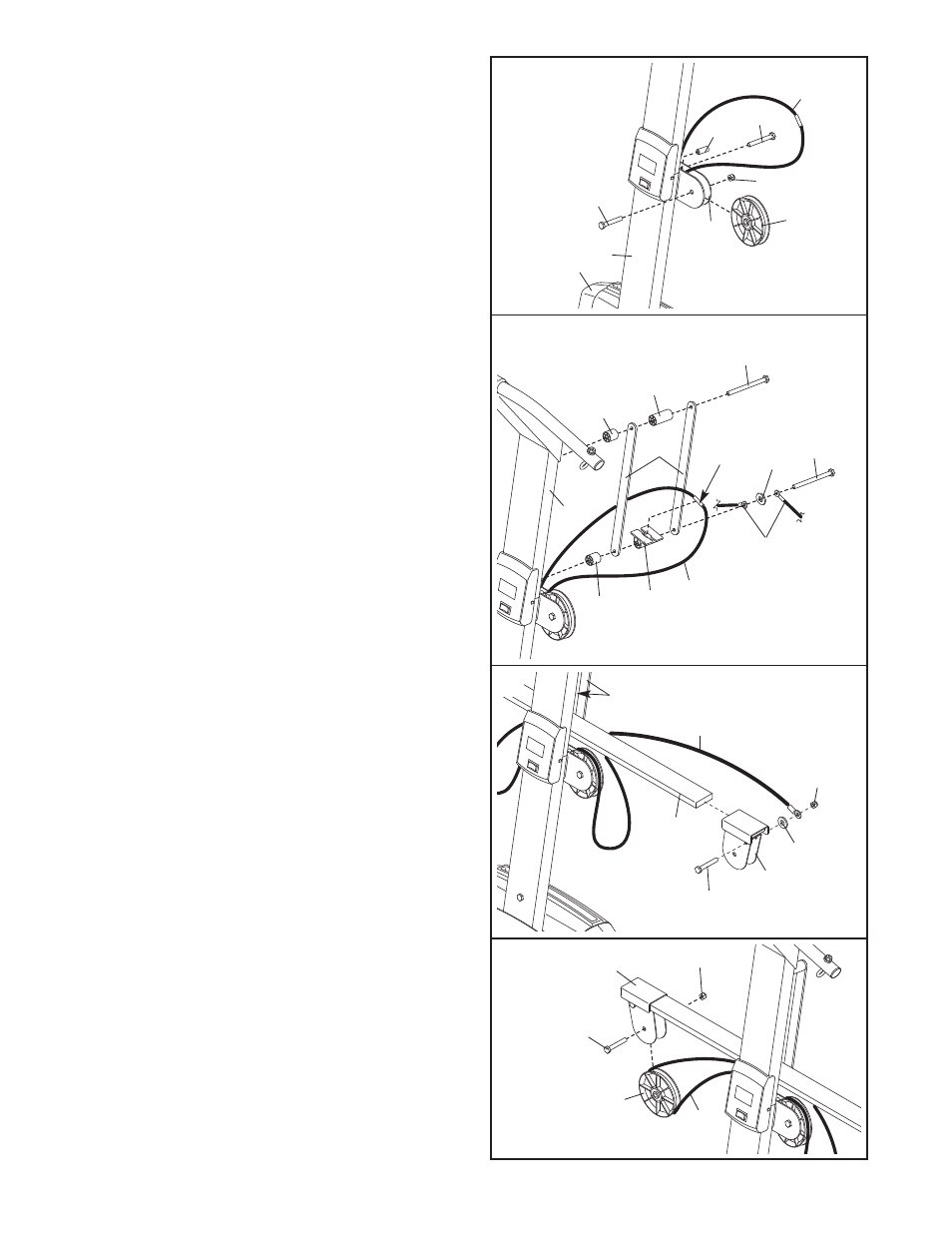

13. Pull the Upper Cable (110), which is attached

inside of the Mech Assembly (6), up between the
Upright (3) and the Pulley Plate (18).

Attach another Large Pulley (17) between the
Upright (3) and the Pulley Plate (18) with an M12
x 62mm Button Bolt (80) and an M12 Nylon
Locknut (72).

Make sure that the Upper Cable

(110) is between the two Pulleys.

Hold the 38mm Spacer (54) inside the loop of the
Upper Cable (110), and between the Upright (3)
and the Pulley Plate (18). Attach the Spacer with
an M10 x 58mm Button Screw (85).

Make sure

the ends of the Cable do not wrap around
each other below the Spacer and the Large
Pulleys (17) used in steps 12 and 13 (see the
CABLE DIAGRAM on page 18).

Tighten the M12 Nylon Locknuts (72) used in
steps 12 and 13.

14. Attach a Small Guide Spacer (56), a Large Guide

Spacer (57), and two Bar Guides (55) to the Lat
Tower (5) with an M10 x 152mm Bolt (83).

Do not

tighten the Bolt yet.

Pull the Upper Cable (110) up between the Bar
Guides (55). Press the metal cover on the Cable
into the groove in the Block Spacer (58). Attach a
Small Guide Spacer (56), the Block Spacer, the
two Bar Guides, an M10 Thick Washer (75), and
the two Tethers (61) to the Lat Tower (5) with
another M10 x 152mm Bolt (83).

Do not tighten

the Bolt yet.

15. Insert the Resistance Bar (9) between the Bar

Guides (55), and center it on the Block Spacer
(not shown).

Press a Pulley Bracket (10) onto the Resistance
Bar (9). Attach a Tether (61) to the Pulley Bracket
at the upper hole, with an M10 x 63mm Button
Bolt (82), an M10 Thick Washer (75), and an M10
Nylon Locknut (71).

Repeat on the other side of the Resistance
Bar (9). Then, tighten the M10 x 152mm Bolts
(83) used in step 14.

16. Hold a Large Pulley (17) inside the Upper Cable

(110). Attach the Pulley to a Pulley Bracket (10)
with an M12 x 58mm Button Bolt (81) and an M12
Nylon Locknut (72).

Make sure that the Cable is

routed as shown in the CABLE DIAGRAM on
page 18.

110

Metal

Cover
