Cable diagram – NordicTrack NTS58740 User Manual
Page 18

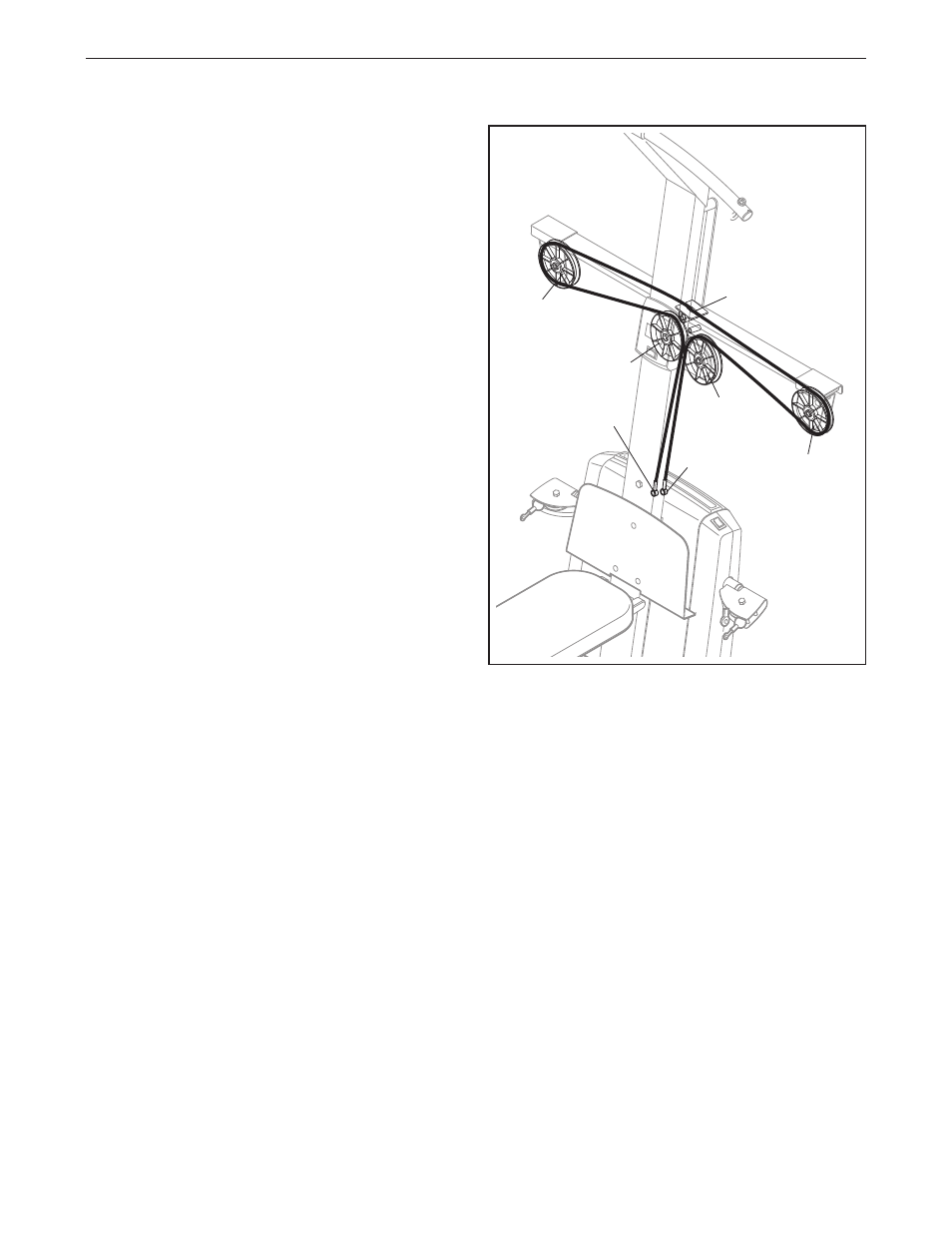

CABLE DIAGRAM
The cable diagram shows the proper routing of the
Upper Cable (110). Use the diagram to make sure
that the Cable has been assembled correctly. If the
Cable has not been correctly routed, the resistance
system will not function properly and damage may
occur. The numbers show the correct route for the
Cable.
Make sure that the ends of the Cable do
not wrap around each other between positions 1
and 2, and 6 and 7.
7
4
5
6
1
2
Upper Cable (110)
3
18
