10

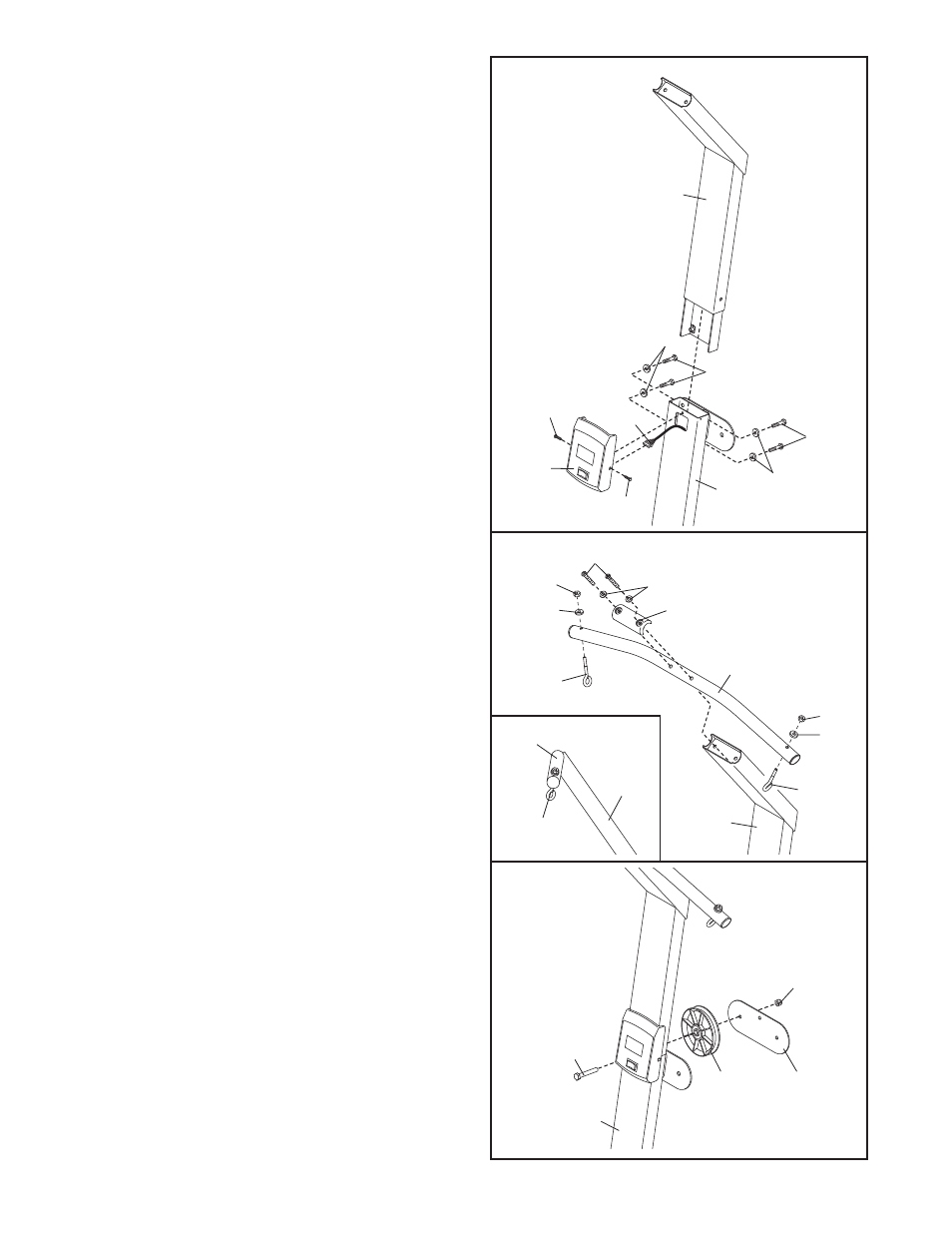

10. Attach the Lat Tower (5) to the Upright (3) with
four M10 x 25mm Screws (100) and four M10
Lock Washers (74).
Plug the Upper Wire Harness (13) into the
Console (53).
Push all of the excess wire into
the Upright (3). Make sure the wire does not
get pinched. Attach the Console to the Upright
with two M4 x 16mm Screws (103).
11. Attach two Eyebolts (51) to the Lat Tower
Crossbar (49) with two M8 Washers (76) and two
M8 Nylon Locknuts (70).
Attach the Lat Tower Crossbar (49) to the Lat
Tower (5) with two M10 x 65mm Button Bolts
(96), two M10 Washers (73), and the Crossbar
Cover (50).
Make sure that the Eyebolts (51)
are oriented as shown in the inset drawing. If
they are not, turn the Lat Tower Crossbar
around and reattach it.
12. Attach a Large Pulley (17) and the Pulley Plate
(18) to the Upright (3) with an M12 x 62mm
Button Bolt (80) and an M12 Nylon Locknut (72).
Do not tighten the Locknut yet.
5
100
100
74
3
103
103
53
13
74
10
49
50
73 70
70
76
76
51
51
96
5
3
80
17 18
72
11
12
51
49
5
Side View
