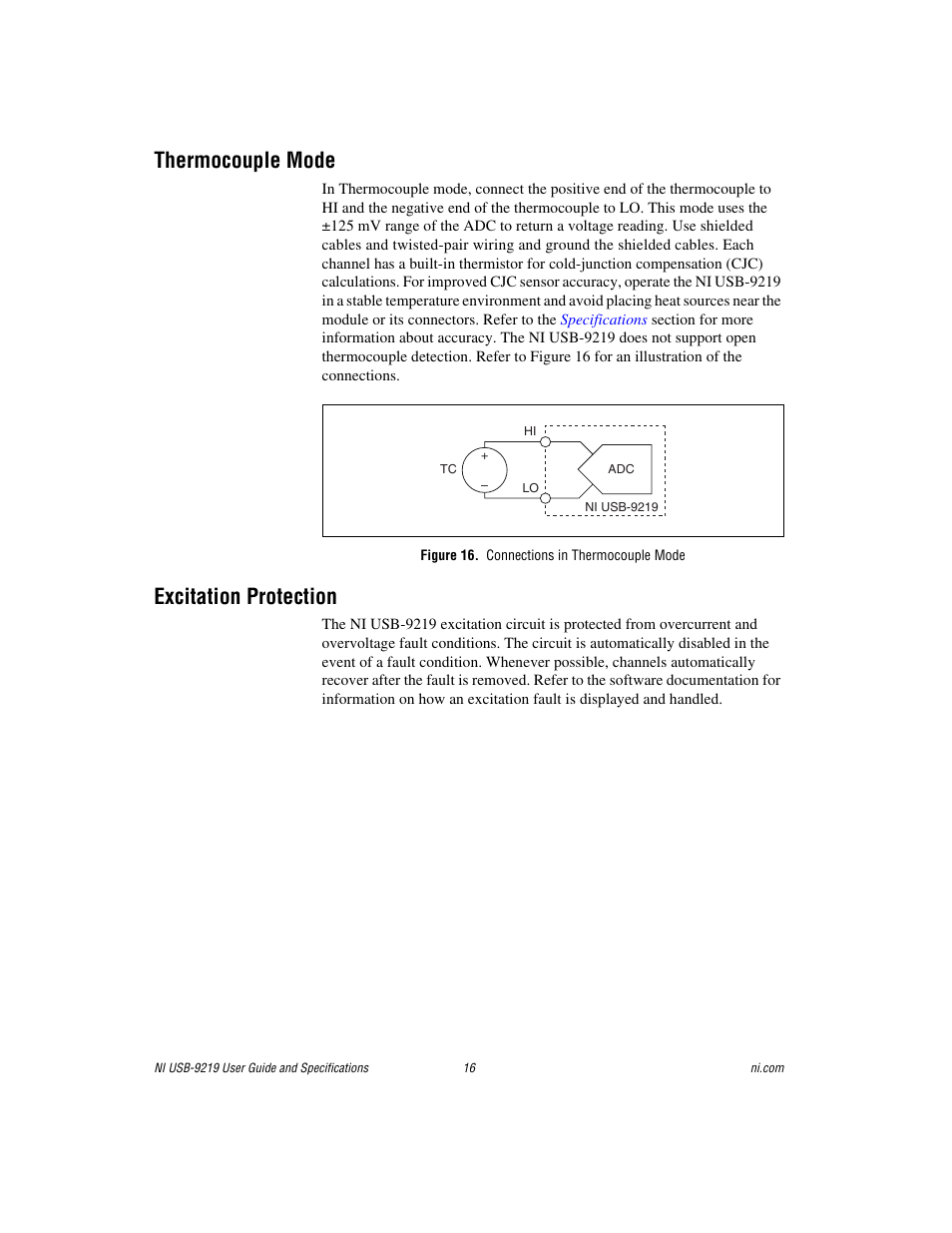

Thermocouple mode, Figure 16. connections in thermocouple mode, Excitation protection – National Instruments NI USB-9219 User Manual
Page 16
