© National Instruments Corporation 9 NI USB-9234 User Guide and Specifications
Mounting the NI USB-9234
Threaded inserts are located in the NI USB-9234 for mounting it to a panel.

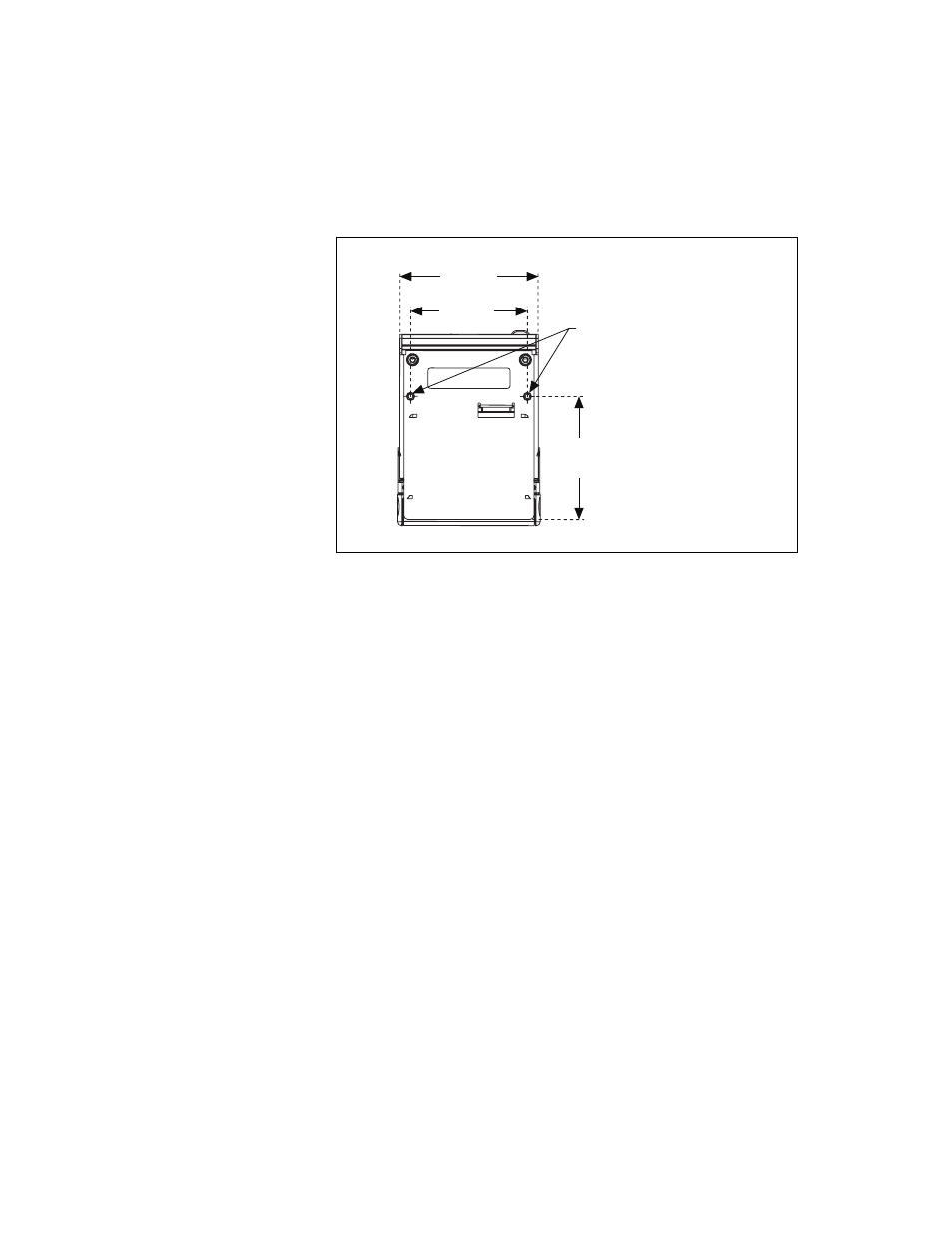

Refer to Figure 5 for the module dimensions.
Figure 5. Module Dimensions
Connecting the NI USB-9234 to a Computer
Plug one end of the USB cable into the NI USB-9234 and the other end into
an available USB port on the computer. Refer to the NI-DAQmx for USB
Devices Getting Started Guide that shipped with your device, which is also
accessible from Start»All Programs»National Instruments»NI-DAQ,
for more information.
Threaded Insert
M3 x 0.5
8.5 mm (0.34 in.) Max Depth
72.2 mm
(2.84 in.)
85.7 mm
(3.37 in.)
76.1 mm
(3.00 in.)
