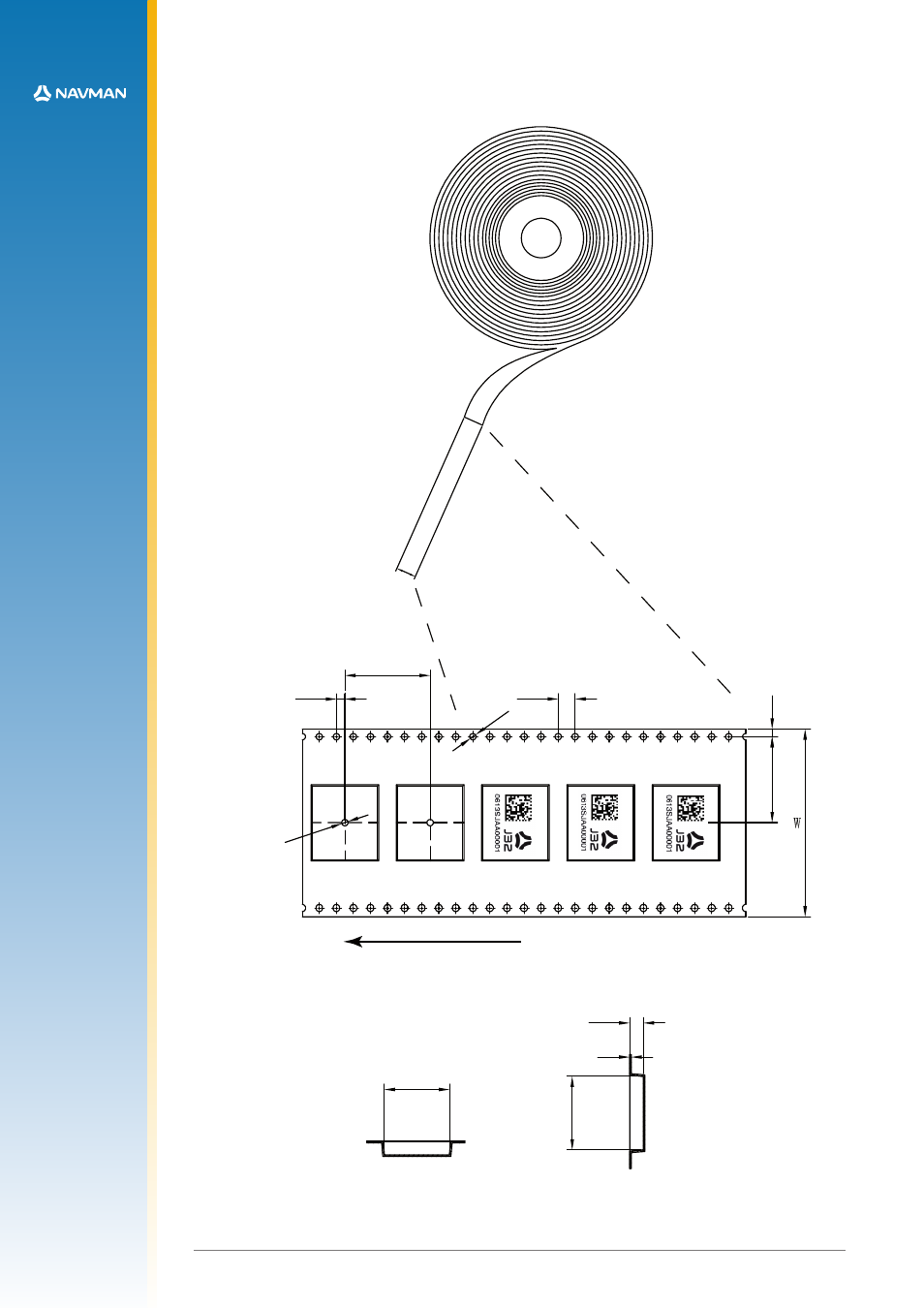

Figure 3-3: Jupiter 32 Packaging
44
44mm
20.00
2.00
4.00
2.0
1.5
1.75
20.20
0.35±0.05
3.2±0.10
17.3±0.10
13.30±0.10
250 per reel
All Dim in mm
Direction of Feed
