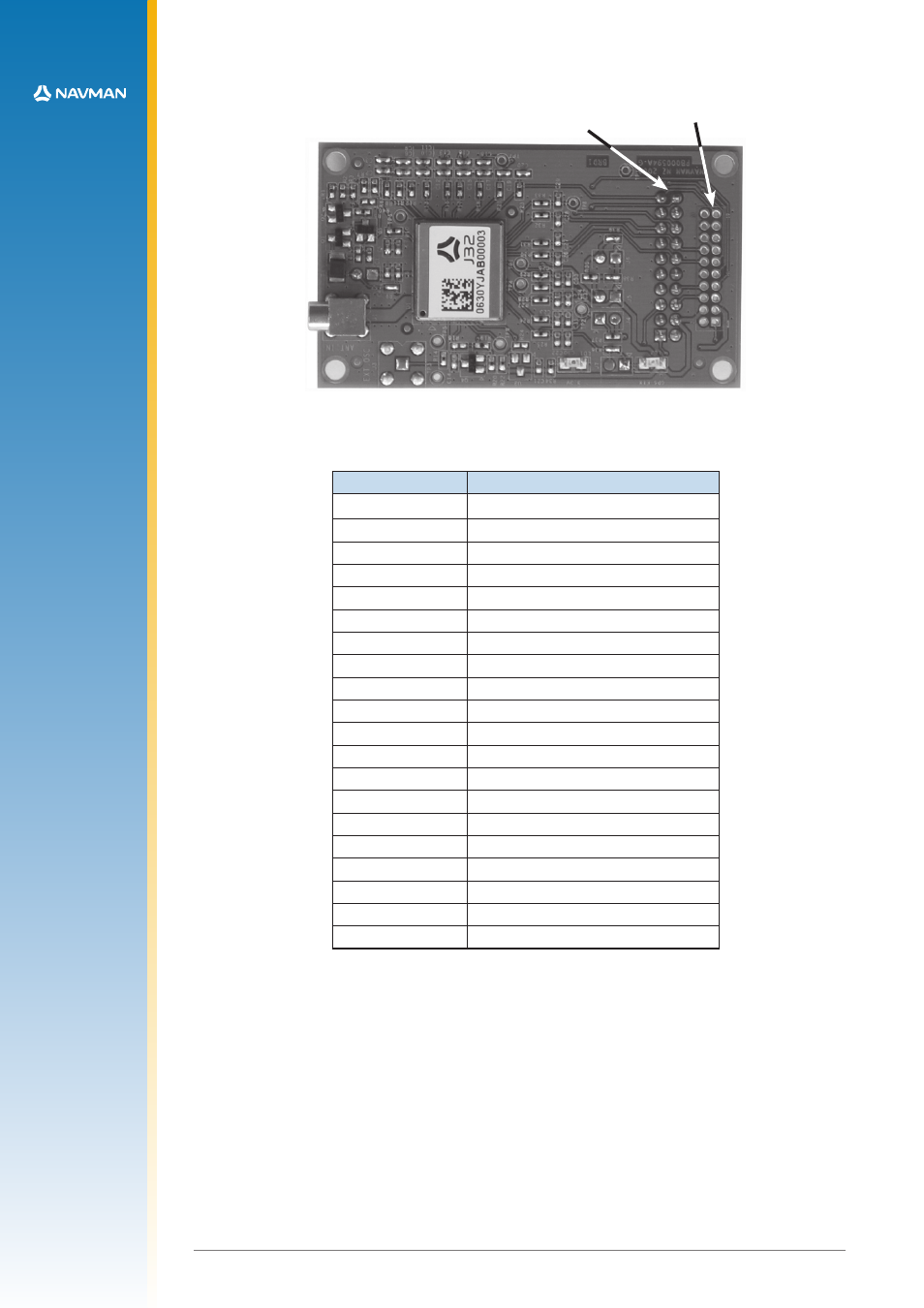

Figure 2-10: Jupiter 32 adapter board
Refer to Table 2-6 for a description of the connector interfaces.
Jupiter function J2 (2.54 mm pitch header) pin no.
VANT 1
no connection 2
VBATT 3
VDD 4
N_RESET 5
reserved 6
reserved 7
BOOT 8
reserved 9
RF_ON 10
TXA 11
RXA 12
reserved 13
TXB 14
RXB 15
WAKEUP 16
GND 17
reserved 18
1PPS 19
N_GPS_FIX 20
Table 2-6: Connector configuration
