NI TB-2708 Installation Guide 4 ni.com
To connect the terminal block to the PXI module I/O connector, refer to
Figure 2 as you complete the following steps:
1. Install the PXI module into the chassis and tighten the two module
screws. You must install the PXI device before connecting the
TB-2708. Refer to the DAQ Getting Started Guide for instructions
on installing your PXI device.
2. Guide the terminal block onto the PXI module connector.
Caution Do not force the terminal block when inserting it into or removing it from the PXI
module I/O connector.
3. Tighten the two terminal block mounting screws.
Signal Descriptions
Figure 3 shows the front panel of the TB-2708, and Figure 4 shows the
TB-2708 block diagram. Refer to Table 1 for a brief description of each
signal available on the TB-2708.

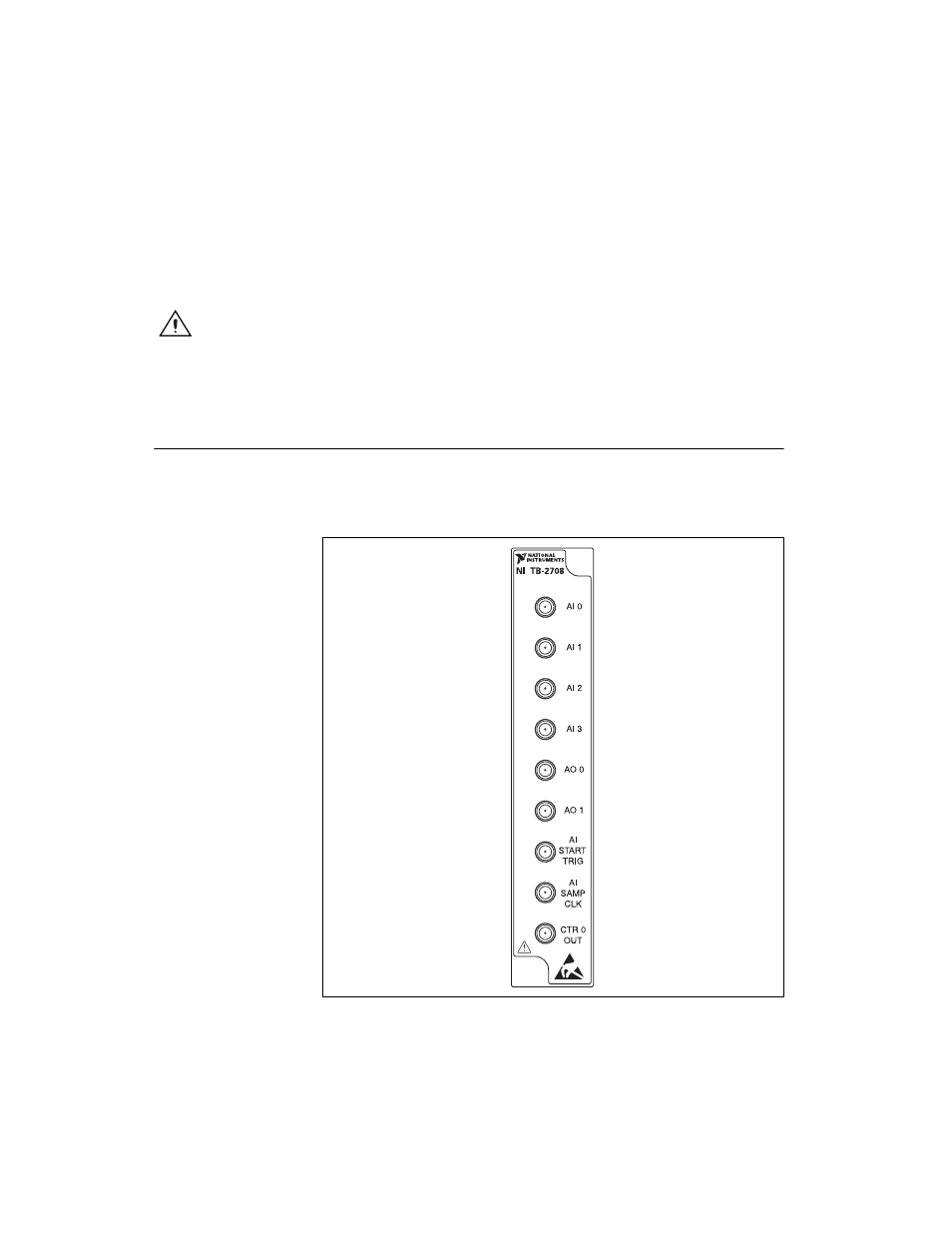

Figure 3. NI TB-2708 Front Panel
