aDSL2+/3G wireless N300 4-Port modem Router

ymL15wN

62

www.netcomm.com.au

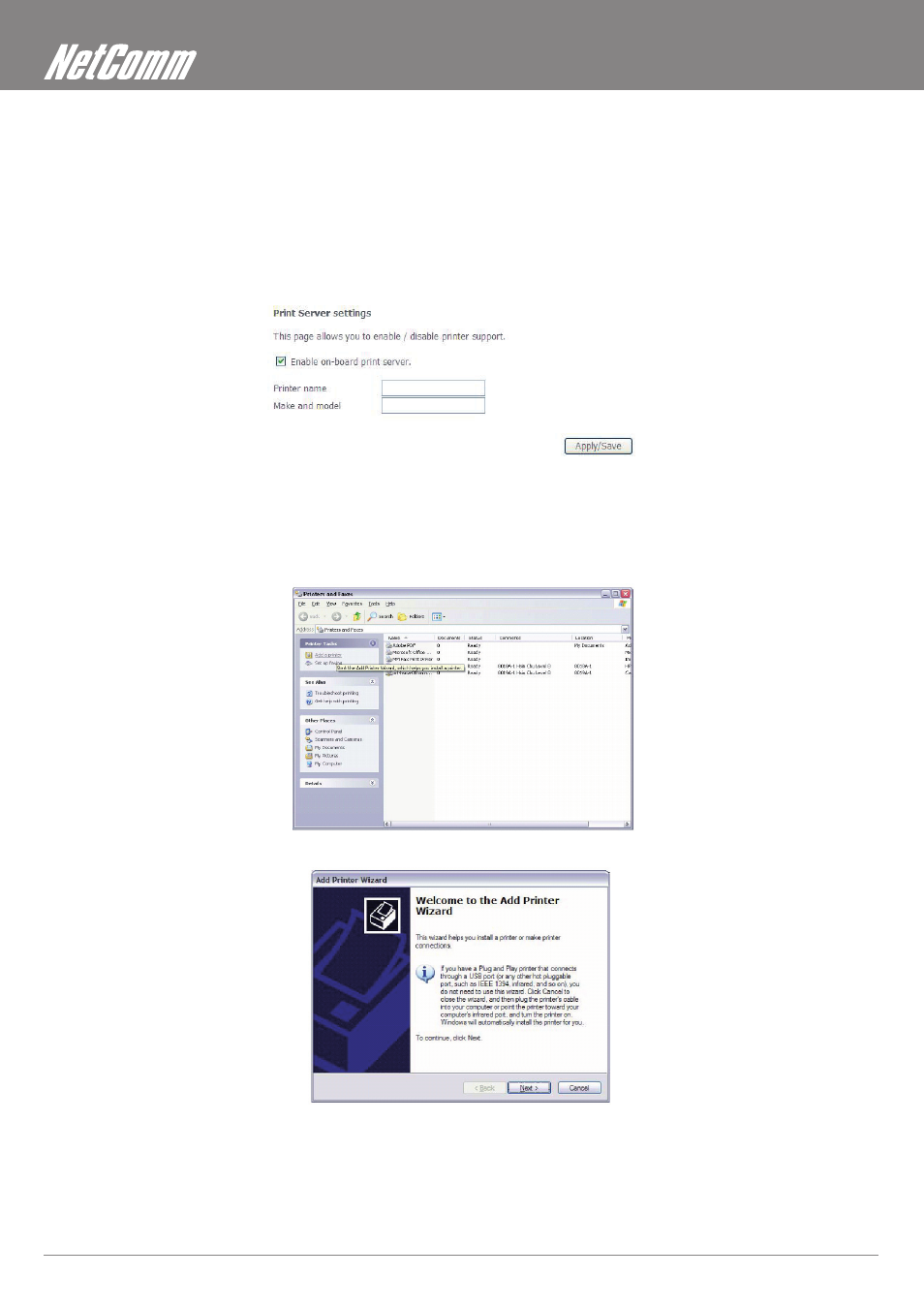

Appendix A: Print Server

These steps explain the procedure for enabling the Print Server.

1.

Enable Print Server from the advanced menu in the web User Interface.

Select Enable on-board print server checkbox and enter Printer name and Make and model

NOTE:

The Printer name can be any text string up to 40 characters. The Make and model can be any text string up to 128 characters.

For windows XP:

2.

Go to the Printers and Faxes application in the Control Panel and select the Add a printer function (as located on the side menu
below).

3.

Click Next to continue, when you see the dialog box below.
