NetComm Gateway Series - ADSL2+/3G Wireless N300 4-Port Modem Router

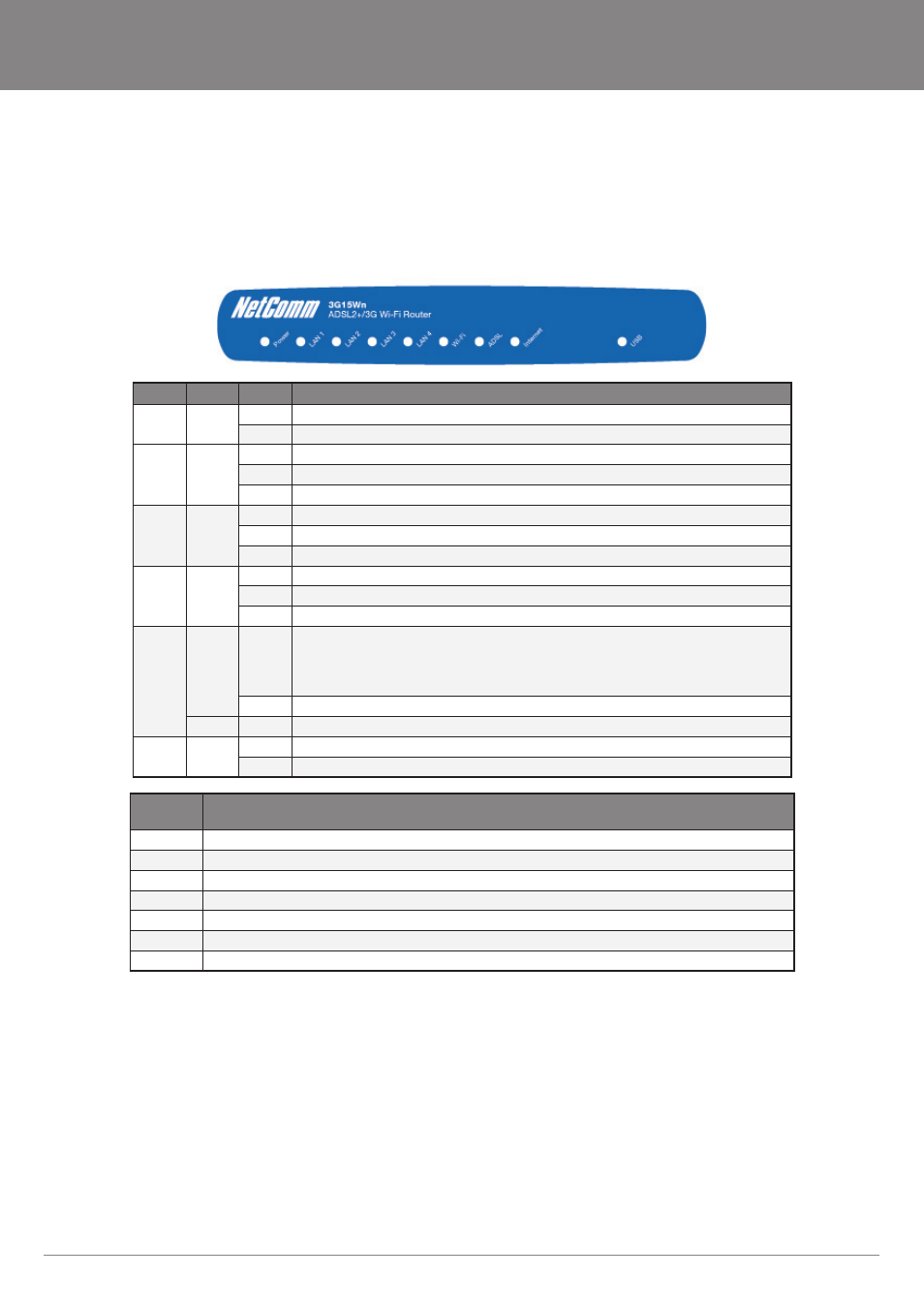

Product Layout
Getting to know your 3G15Wn
It is recommended that you take a moment to acquaint yourself with the indicator lights, ports and default settings of the 3G15Wn prior to
commencing with installation.
LED Colour Mode Function
Power Green on the router is powered on
off the router is not powered
LAN 1-4 Green on Ethernet link is established
off There is no Ethernet link established
Blinking Data transmitting/receiving over Ethernet
Wi-Fi Green on wireless module is ready
off wireless module is not installed
Blinking Data transmitting/receiving over wi-Fi
ADSL Green on The ADSL link is established
off The is no ADSL link established
Blinking The ADSL line is training if it is blinking rapidly, The ADSL line is not connected if it is blinking slowly.
Internet Red on Device attempted to obtain an IP address and failed (no DHCP response, no PPPoE response, PPPoE
authentication failed, no IP address from IPCP etc.) For bridged mode, this LED remains off. If the IP or
PPPoE session is dropped due to an idle timeout, the LED will remain green if an aDSL connection is
still present. If the session is dropped for any other reason, the LED is turned off. the LED will turn red
when it attempts to reconnect and DHCP or PPPoE fails
off modem is in bridged mode or aDSL connection is not present
Green Blinking IP connected and data is passing through the device (either direction)
USB Green on a USB device is plugged into the USB port
off there is no USB device plugged into the USB port
Port
Name Function
Power Connect the supplied power adapter
On/Off Push to turn the 3G15wn on and off
USB Connect your external 3G USB Modem for a 3G connection or USB Storage/USB Printer
Reset Reset button. Depress for 10 seconds to return your 3G15wn to factory default settings
LAN x 4 4 x 10/100 Ethernet switch to connect wired devices
DSL Telephone jack (RJ-11) to connect to your telephone wall socket (ADSL Line)
Wi-Fi wi-Fi antenna for distributing wireless Internet signal
