3G9W - HSPA 7.2Mbps Wi-Fi Router USER GUIDE
YML902 – 9
1.4
Rear Panel

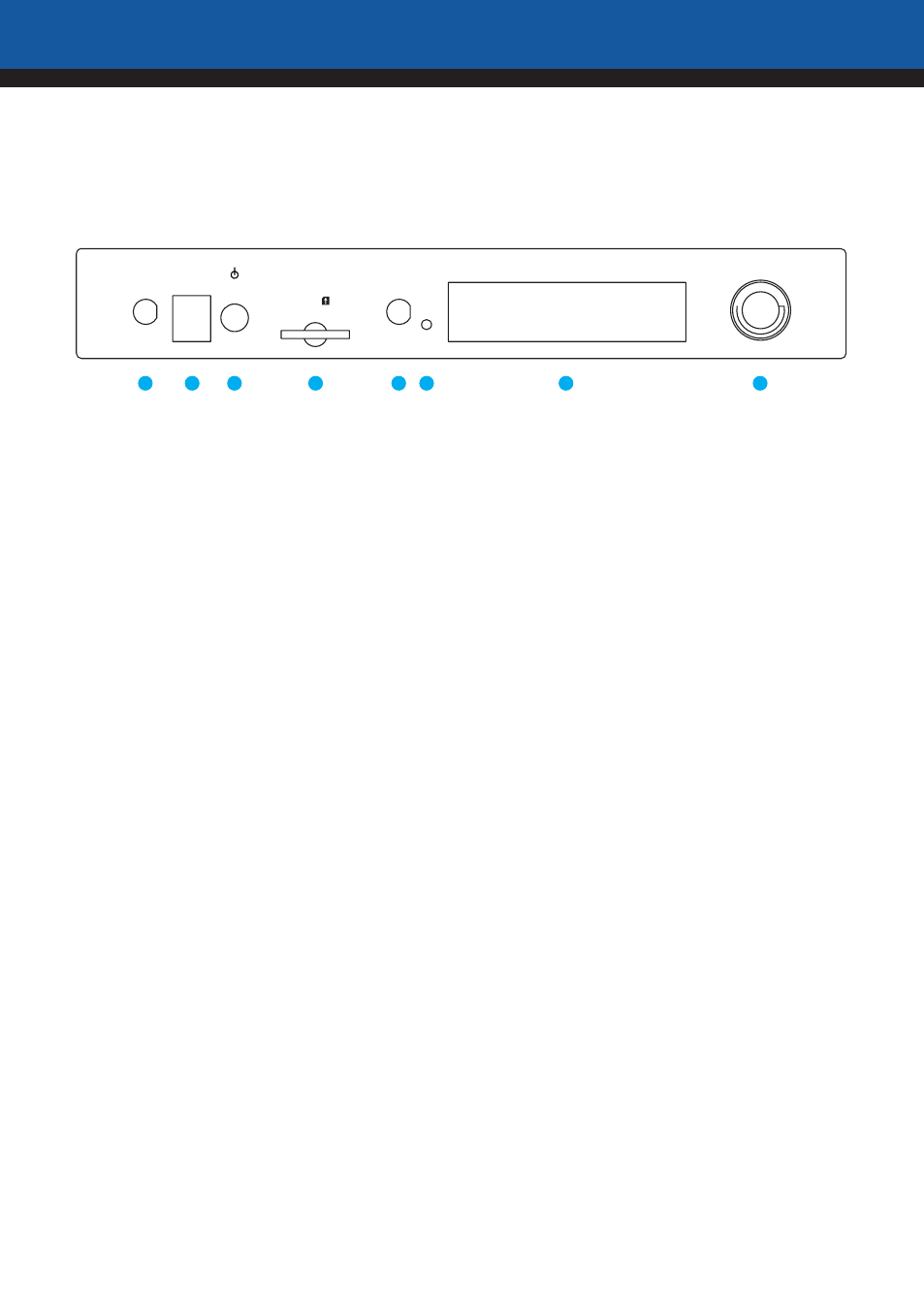

The rear panel contains the ports for data and power connections.
Power
USIM
Reset
LAN1
LAN2
LAN3
LAN4
Main
AUX
1
2
3
4
5
6
7
8
(1) Main 3G Antenna (removable, SMA connection)
(2) Power jack for DC power input (12VDC / 1.5A).
(3) Power button
(4) USIM card slot
(5) Aux 3G Antenna (removable, SMA connection)
(6) Reset button
(7) Four RJ-45 Ethernet LAN ports
(8) 2dBi wireless Antenna (fixed)
