12
APPLICA
TIONS & SYSTEM DESIGN CONSIDERA
TIONS
Utilizing the Dual BusMatrix ™ Input
Many multi-zone systems incorporate multiple rooms within a single zone. The
SI-1260’s Dual BusMatrix
™ Input simplifies the connections required for this system
design. As shown in Figure 8, a Niles A4.6Ci Multi-zone Controller has its first and
second zone outputs connected to the SI-1260’s Dual BusMatrix
™ #1 and #2 inputs
respectively. Bus Input #1 is then routed to amplifier channels one through six via
dip switch settings. Bus Input #2 is routed to amplifier channels seven through twelve
in the same manner. Six rooms can now be connected to the
SI-1260 placing three rooms in Zone #1 and three rooms in Zone #2. The remain-
ing zone outputs on the A4.6Ci can be connected to another SI-1260 for more zones.
DVD/CD
CHANGER
DSS
SI-1260
SI-1260 Niles A4.6Ci
ZONE 1
ROOM 1 ROOM 2 ROOM 3 ROOM 4 ROOM 5 ROOM 6
ZONE 3
ZONE 4
ZONE 5
ZONE 6 ZONE 2
Zones 3-6
Zones 1-2
BusMatrix Input 1
Niles VCS-2D
Volume Control
AM/FM
TUNER
™ BusMatrix Input 2 ™

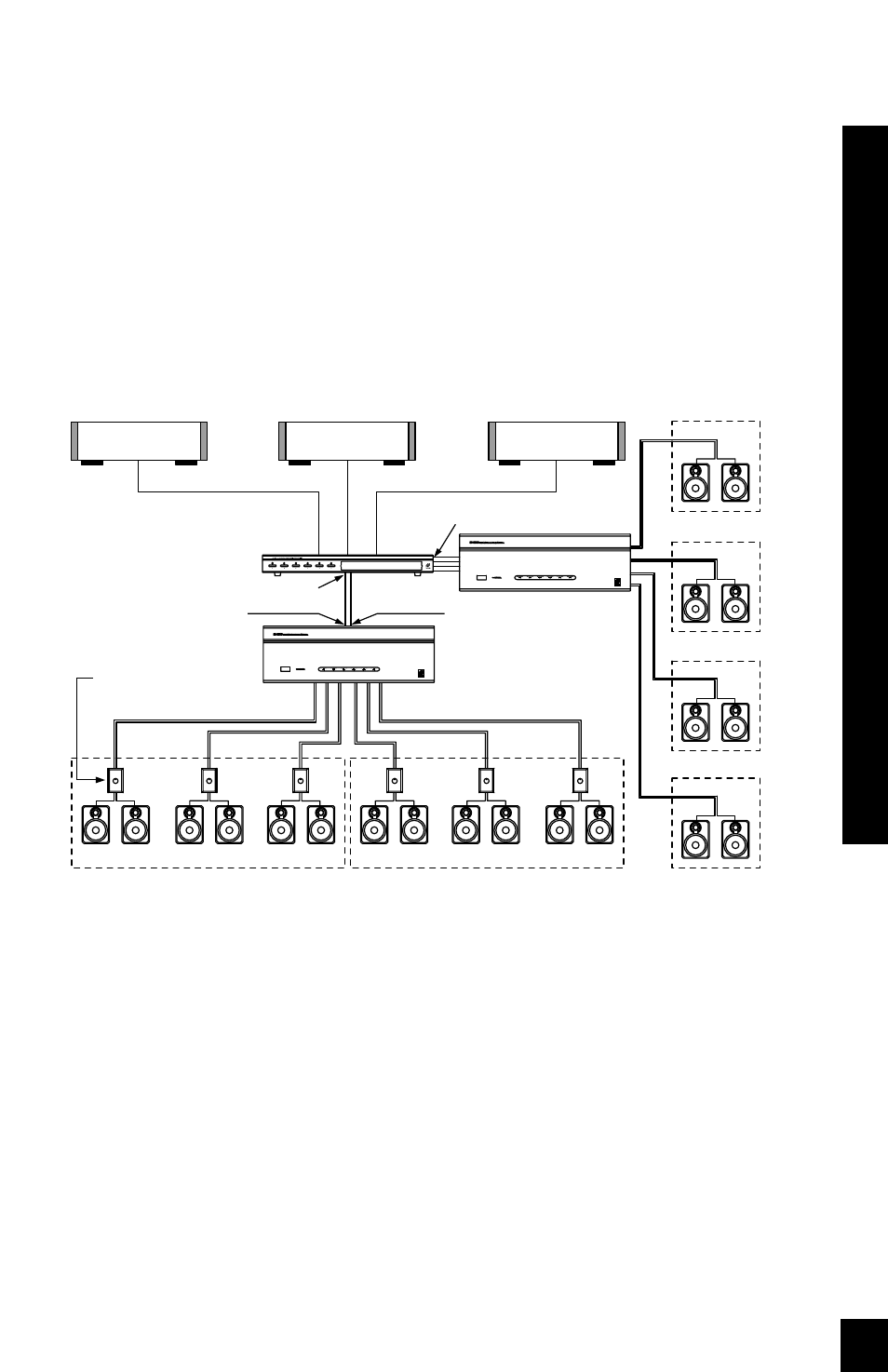

Figure 8 - Dual BusMatrix ™ Input
