Max 410/420/430 User’s Guide – Chapter 5
37
IP Address (may already be populated)
Netmask Address (may already be populated)
Default Gateway
DNS Server IP (Primary)
DNS Server IP (Secondary)
Domain Name (if applicable)
CDR Configuration Table
The CDR Configuration table allows you to enable the call
detail record (CDR) feature and assign the CDR server IP
addresses. It also displays the connection status of each
server.

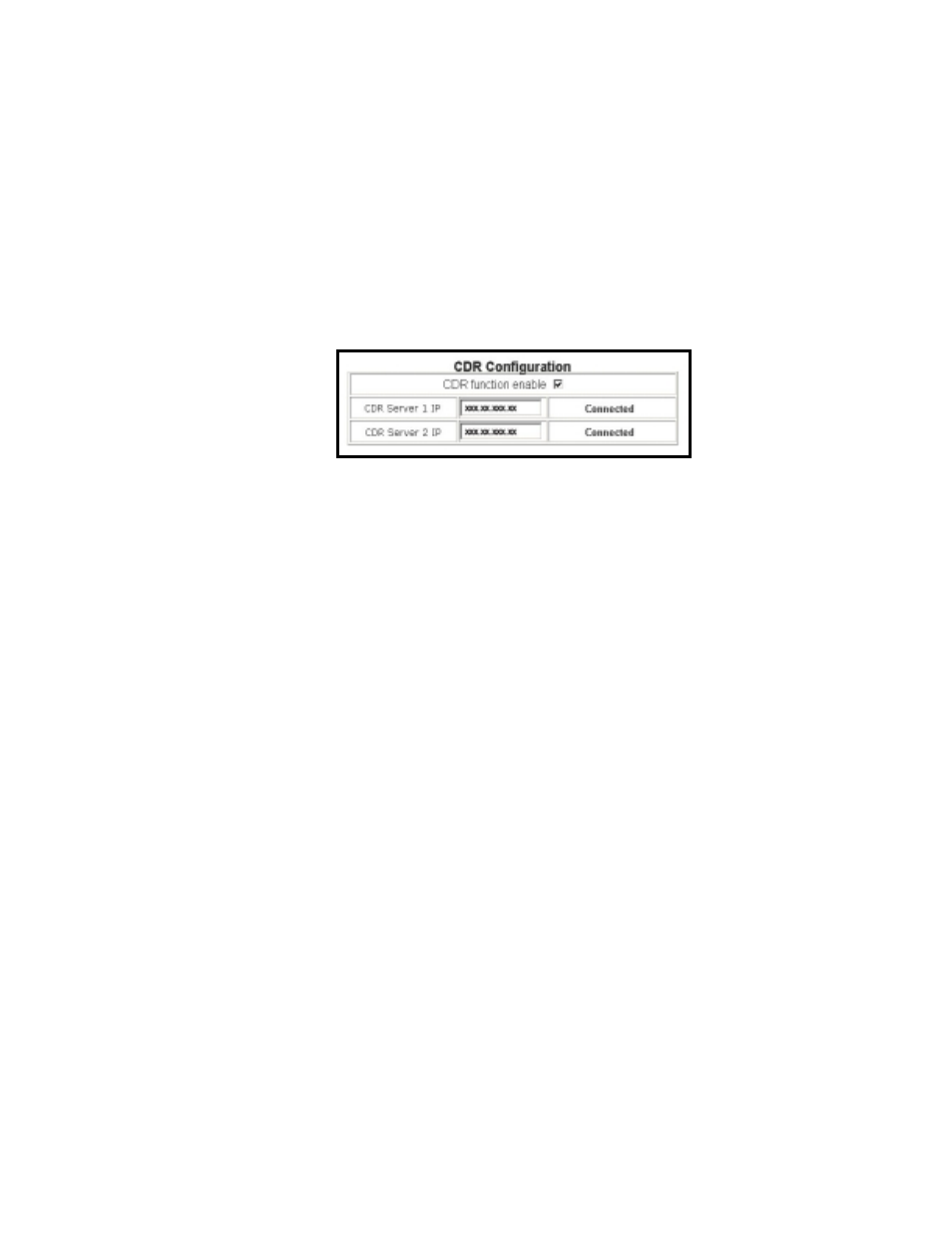

Figure 16 – CDR Configuration Table
The CDR Configuration table contains the following fields:
CDR function enable checkbox – click to
enable the CDR feature
CDR Server 1 IP – to the right of the field is
the connection status:
Connected – the device is successfully
communicating with Max ABS
Disconnected – the device is not able to
communicate with Max ABS or Max ABS
is not set up
Idle – CDR is not enabled
CDR Server 2 IP – to the right of the field is
the connection status:
Connected – the device is successfully
communicating with Max ABS
Disconnected – the device is not able to
communicate with Max ABS or Max ABS
is not set up
