5.4.2 WAN

You can configure the WAN port parameters on this page.

First, please choose the WAN Connection Type (Dynamic IP/Static IP/PPPoE/802.1X + Dynamic IP/802.1X + Static
IP/BigPond Cable/L2TP/PPTP) for Internet. The default type is

Dynamic IP. If you aren’t given any login parameters

(fixed IP Address, logging ID, etc), please select

Dynamic IP. If you are given a fixed IP (static IP), please select Static

IP. If you are given a user name and a password, please select the type of your ISP provided(PPPoE/BigPond/L2TP/
PPTP). If you are not sure which connection type you use currently, please contact your ISP to obtain the correct
information.

If you choose

Dynamic IP, the router will automatically get IP parameters from your ISP. You can see the

page as follows (figure 5-4):

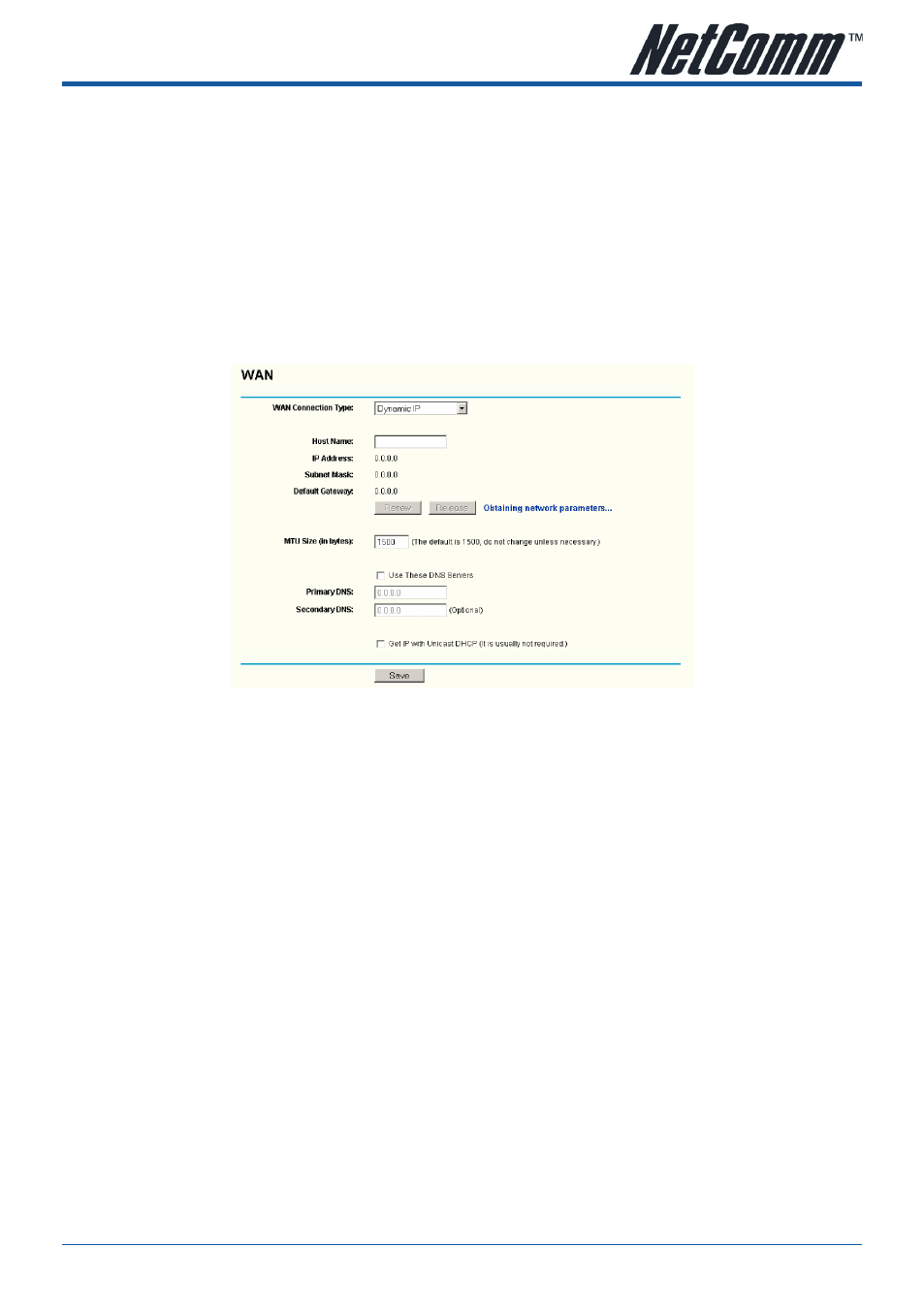

Figure 5-4 WAN – Dynamic IP

This

page displays the WAN IP parameters assigned dynamically by your ISP, including IP address,

Subnet Mask, Default Gateway, etc. Click the

Renew button to renew the IP parameters from your ISP.

Click the

Release button to release the IP parameters.

MTU

Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500

Bytes. For some ISPs you need to reduce the MTU. But this is rarely required, and should not be done
unless you are sure it is necessary for your ISP connection.

your ISP gives you one or two DNS addresses, select

Use These DNS Servers and enter the primary and

secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your
ISP.

�ote: If yo� get an a��e�� an� fin� e��o�� when yo� go to a Web ��te, �t �� l�kely that yo�� D�S �e��ve�� a��e �et �p �mp��ope��ly. Yo� �ho�l�
contact yo�� ISP to get D�S �e��ve�� a��e��e�.
