Open a command prompt, and type ping 192.168.1.1, then press Enter.
If the result displayed is similar to that shown in figure 4-1, the connection between your PC and the router
has been established.

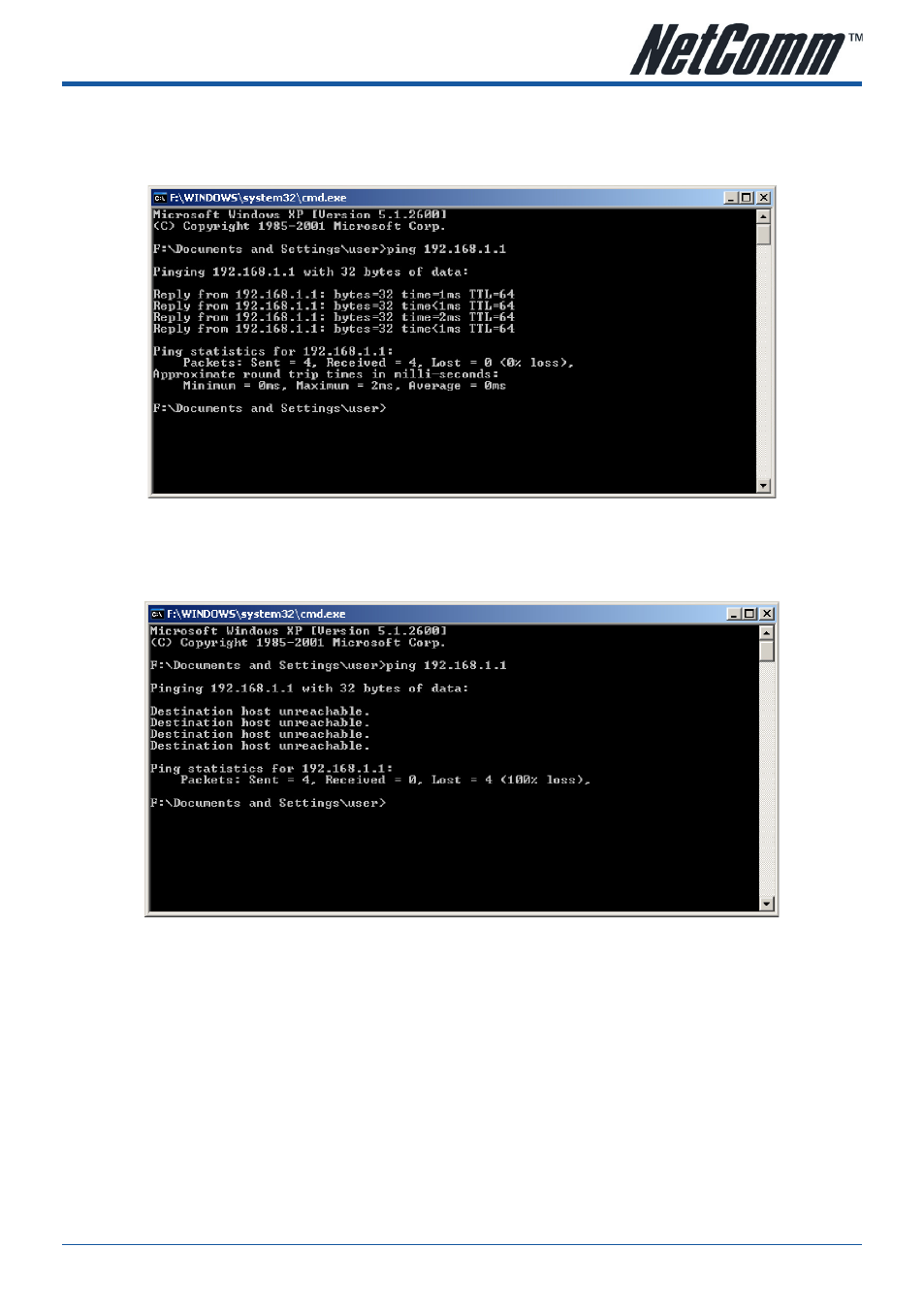

Figure 4-1 Successful result of Ping command
If the result displayed is similar to that shown in figure 4-2, it means that your PC has not connected to the
router.
Figure 4-2 Failed result of Ping command
Please check it following these steps:
1. Is the connection between your PC and the router correct?
�ote: The 1///4 LED� of LA� po��t wh�ch yo� l�nk to on the ��o�te�� an� LED� on yo��� PC’� a�apte�� �ho�l� be l�t.
2. Is the TCP/IP configuration for your PC correct?
�ote: If the ��o�te��’� IP a����e�� �� 1.168.1.1, yo��� PC’� IP a����e�� m��t be w�th�n the ��ange of 1.168.1. ~ 1.168.1.�4, the
gateway m��t be 1.168.1.1
