63.4"
(160.9cm)
105.6"
(268.2cm)
147.8"
(375.5cm)
169.0"
(429.2cm)
211.2"
(536.5cm)
36.9"
(93.8cm)
73.8"
(187.5cm)
123.0"
(312.5cm)
172.2"
(437.5cm)
196.9"
(500.0cm)
246.1"
(625.0cm)
4.92'
32.81'
26.25'
22.97'
16.40'
9.84'
(1.5m)
(10.0m)
(8.0m)
(7.0m)
(5.0m)
(3.0m)
31.7"
(80.5cm)
Max. 36.9"(93.8cm) 73.8"(187.5cm) 123.0"(312.5cm) 172.2"(437.5cm) 196.9"(500.0cm) 246.1"(625.0cm)
Min. 31.7"(80.5cm) 63.4"(160.9cm) 105.6"(268.2cm) 147.8"(375.5cm) 169.0"(429.2cm) 211.2"(536.5cm)
Max.(WxH)
29.52" x 22.14"
(75.0 x 56.3cm)
59.04" x 44.28"
(150.0 x 112.5cm)
98.40" x 73.80"
(250.0 x 187.5cm)
137.76" x 103.32"
(350.0 x 262.5cm)
157.52" x 118.14"
(400.0 x 300.0cm)
196.88" x 147.66"
(500.0 x 375.0cm)
Min.(WxH)
25.36" x 19.02"
(64.4 x 48.3cm)
50.72" x 38.04"
(128.7 x 96.5cm)
84.48" x 63.36"
(214.6 x 160.9cm)
118.24" x 88.68"
(300.4 x 225.3cm)
135.20" x 101.40"
(343.4 x 257.5cm) 168.96" x 126.72"
(429.2 x 321.9cm)
4.92'(1.5m) 9.84'(3.0m) 16.40'(5.0m) 22.97'(7.0m) 26.25'(8.0m) 32.81'(10.0m)
Focus Ring
Zoom Lever
Adjusting the Projector Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the
image, rotate the focus ring until the image is clear. The projec-
tor will focus at distances from 4.9 to 32.8 feet (1.5 to 10.0 meters).

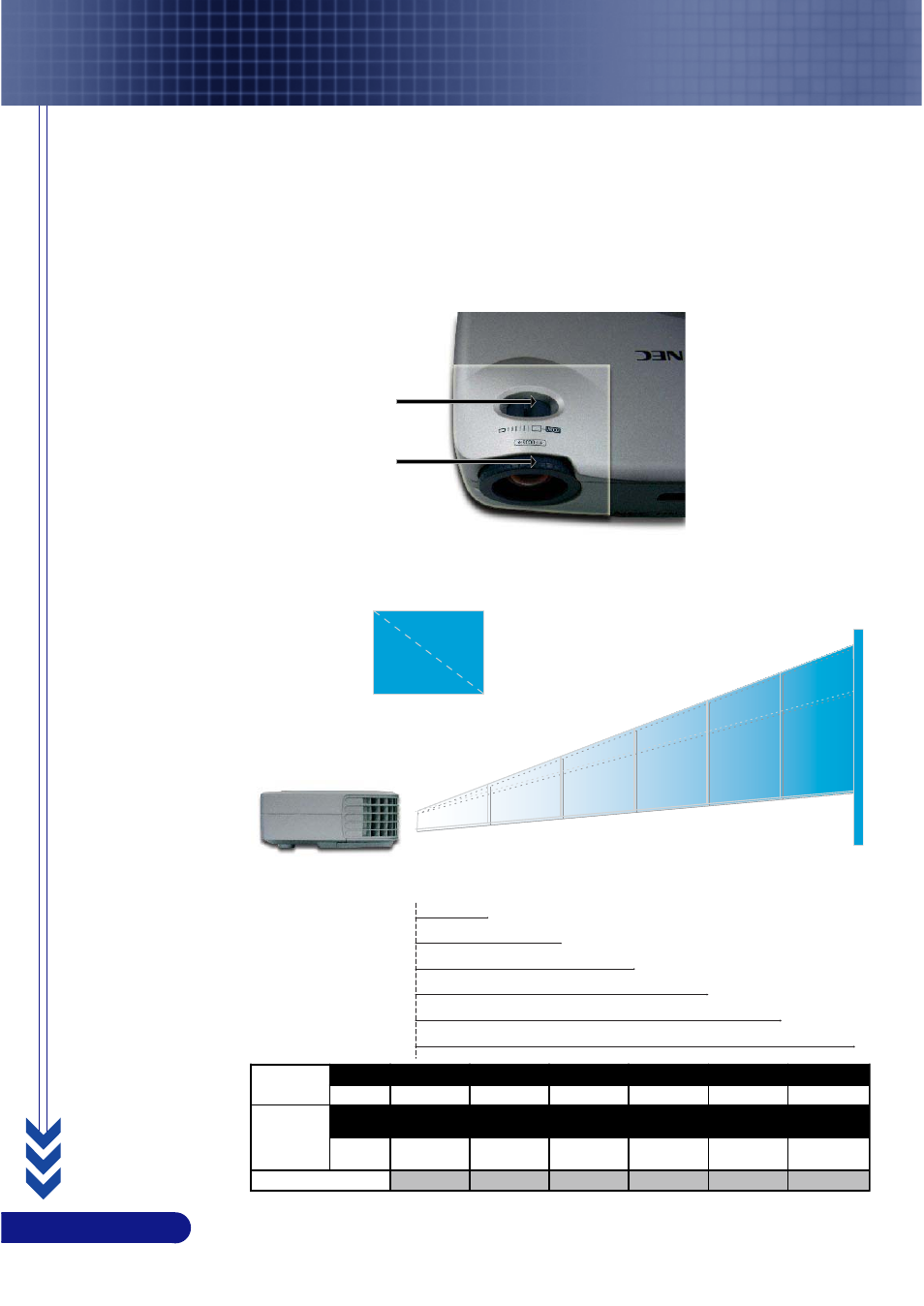

Adjusting Projected Image Size
Screen
(Diagonal)
Screen
Size
Distance
™ This graph is for user’s reference only.
Installation
Diagonal
