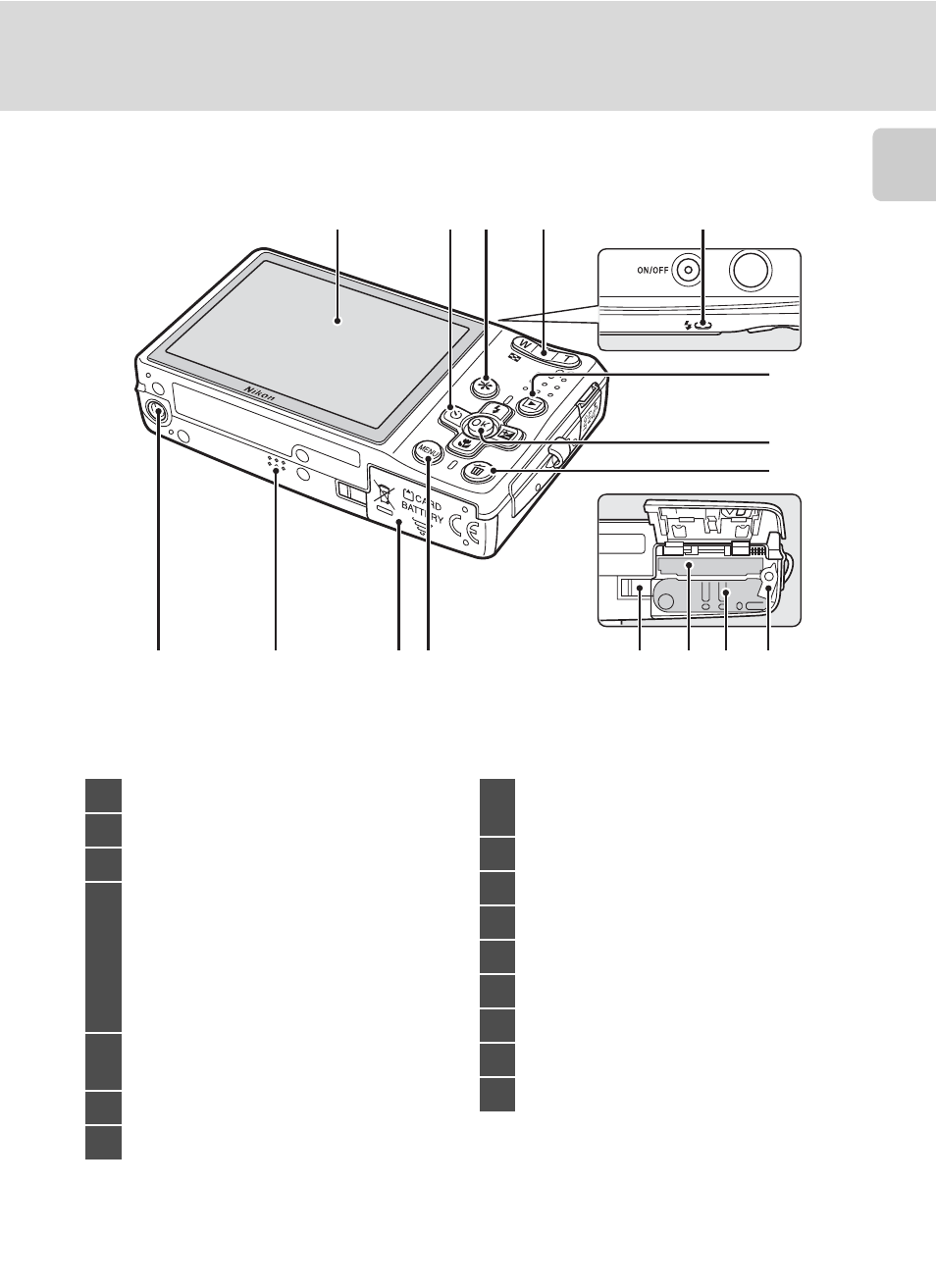

Parts of the Camera
In
troducti
on
5
12
11
2 3 1
8 7 9
10
13 14 15 16 6
4
1 Monitor ..................................................................6
2 Multi selector......................................................9
3
r (favorite) button ........................................8
4
Zoom buttons ................................................22
f : wide .......................................................22
g : tele..........................................................22
h : thumbnail playback.....................49
i : playback zoom................................50
j : help ........................................................11
5
Indicator lamp ................................................75
Flash lamp .........................................................29
6 Tripod socket
7 Speaker................................................56, 74, 77
8
Battery-chamber/
memory card slot cover....................14, 18
9 d button.............10, 33, 48, 70, 94, 108
10
l (delete) button.........26, 27, 56, 74, 78
11
k (apply selection) button...................... 9
12
c (shooting/playback) button .... 8, 26
13 Power connector cover .........................132
14 Memory card slot..........................................18
15 Battery-chamber............................................14
16 Battery latch .............................................14, 15
