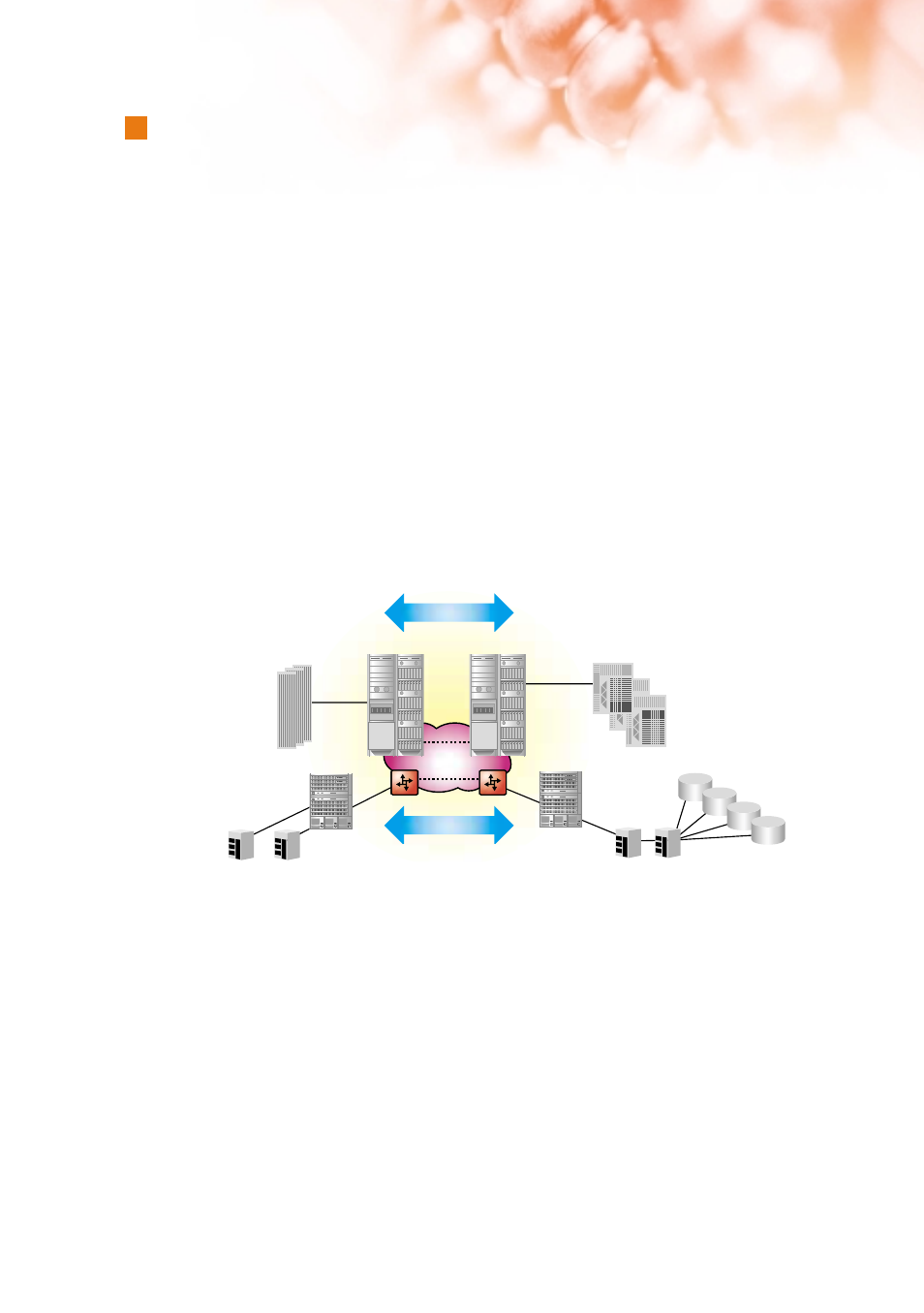

OPTera Metro 5200
Storage Array Server Farm
OPTera Metro 5200
Passport 8600
Layer 2-7 Passport 8600
Layer 2-7
Paris
London
NAS
SAN
DWDM
IP/MPLS
Storage Area Networking solutions use a number of
integrated infrastructure components to enable a
variety of storage applications. The solutions are
typically comprised of a number of disk storage arrays
and tape drives connected to a Fibre Channel (FC)
switch via FC links. The OPTera Metro 5200
Multiservice Platform enables service access delivery
providing the solution with flexibility and scalability.
Until recently, businesses transported most of their
data within Local Area Networks (LANs) at a single
location. Today this trend has reversed and more and
more traffic and protocol types are demanding
transport across public Metropolitan Area Networks
(MANs). Unfortunately, storage centric protocols such
as ESCON and FC are seldom handled by these
networks.
Nortel Networks Storage Area Networking solution
overcomes this problem, by transporting all of these
and other essential protocols in their native format to
interconnect an organisation’s critical storage devices.
The Storage Area Networking concept consists of
setting up a separate high-speed mesh network that
links servers and storage devices. Typically Fibre
Storage Area Networking Solution 227
Optical
Storage Area Networking Solution
Customer Needs
• Disaster recovery – disk and tape back-up solutions for rapidly recovering data from offsite facilities and
contingency planning for unforeseen circumstances
• Business continuity – the business continues to function even if a data centre disaster is suffered.
• Store and access a large amount of data online, quickly and cost effectively, no matter where the data is
held geographically
• Higher levels of system availability, faster scalability of resources and better storage management
• Server and Storage Consolidation, to enable more efficient scaling in the face of unpredictable demands for
processing power and storage
• A Wide Area Storage Area Network (SAN) based upon a reliable, high performance network
Nortel Networks Solution
