NTI UNIMUX SINGLE-USER HIGH DENSITY VGA USB KVM SWITCH
38

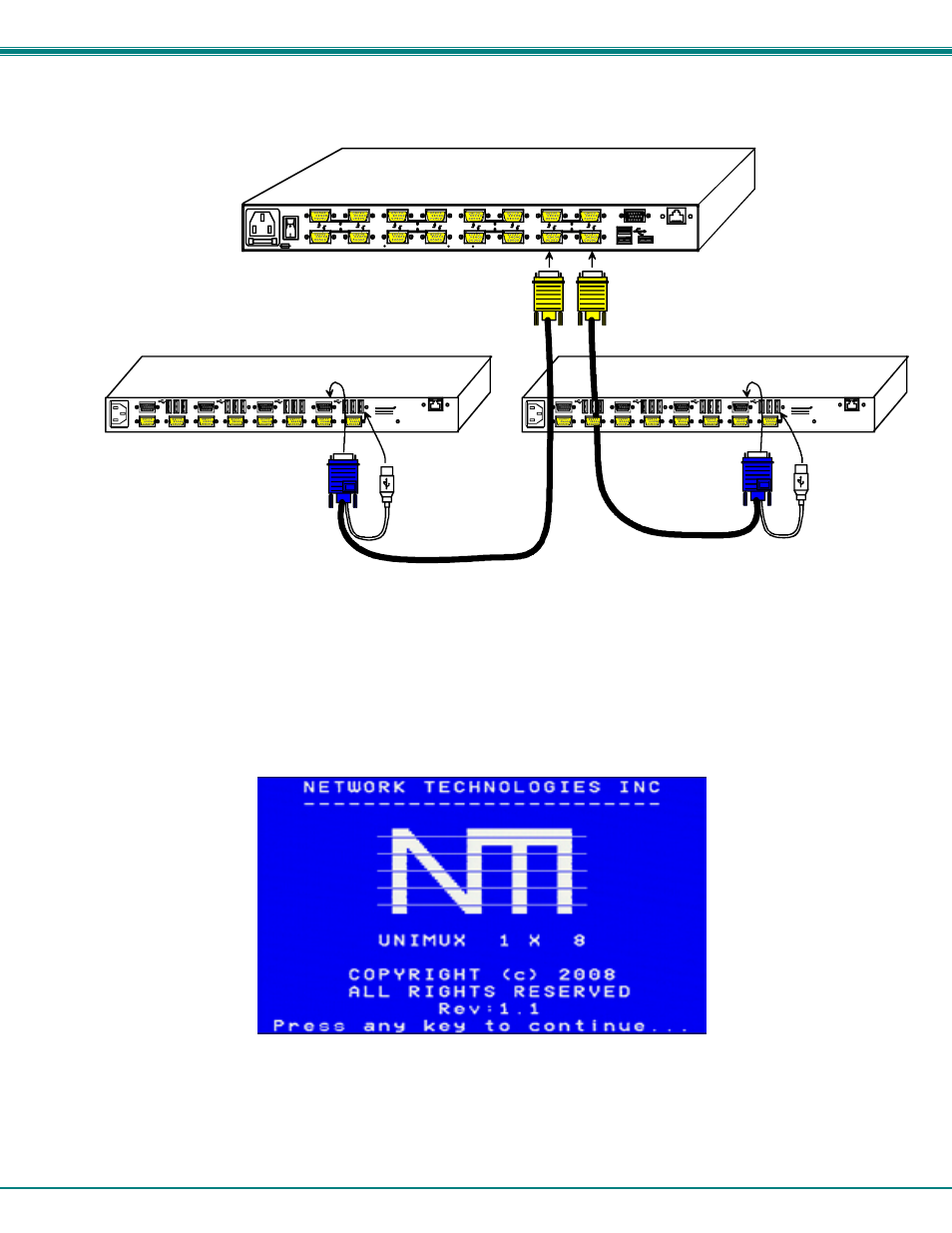

Figure 42- Cascaded connections with multi-user slaves
Operating Cascaded Switches
Immediately after powering-ON the Master switch, the following splash screen will display on the monitor:
All the downstream switches should be powered ON before pressing any key. If there are USB extenders connected, they should
also be powered ON. An extra time of about 5 seconds after powering-ON the last unit may be needed to complete the USB
enumeration process. If the switch is a standalone unit (no downstream switches connected), the key could be pressed
immediately.
CPU 1
CPU 2
CPU 5
CPU 6
CPU 7
CPU 8
CPU 3
CPU 4
MONITOR 1
USER
1
USER
2
MONITOR 2
MONITOR 3
USER
3
USER
4
MONITOR 4
RS232
R
NTI
Tel:330-562-7070
Fax:330-562-1999
1275 Danner Dr
Auro ra, OH 44202
www.networktechinc.com
R
250V,2A
12 4
11 3
10 2
9 1
CPU
CPU
16 8
15 7
14 6
13 5
CPU
CPU
NETWORK TECHNOLOGIES INCORPORATED 1275 Danner Drive, Aurora Ohio 44202 330-562-7070 www.networktechinc.com
MONITOR
RS232
HDUSBVEXT-xx-MM
HDUSBVEXT-xx-MM
Rear View of UNIMUX-USBV-16HDU
Rear View of
UNIMUX-4X8-UHDU
Master
Slave
CPU 1
CPU 2
CPU 5
CPU 6
CPU 7
CPU 8
CPU 3
CPU 4
MONITOR 1
USER
1
USER
2
MONITOR 2
MONITOR 3
USER
3
USER
4
MONITOR 4
RS232
R
NTI
Tel:330-562-7070
Fax:330-562-1999
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com
R
Slave
Rear View of
UNIMUX-4X8-UHDU
