Appendix C Mounting Information
NI CVS-1450 Series User Manual C-2 ni.com

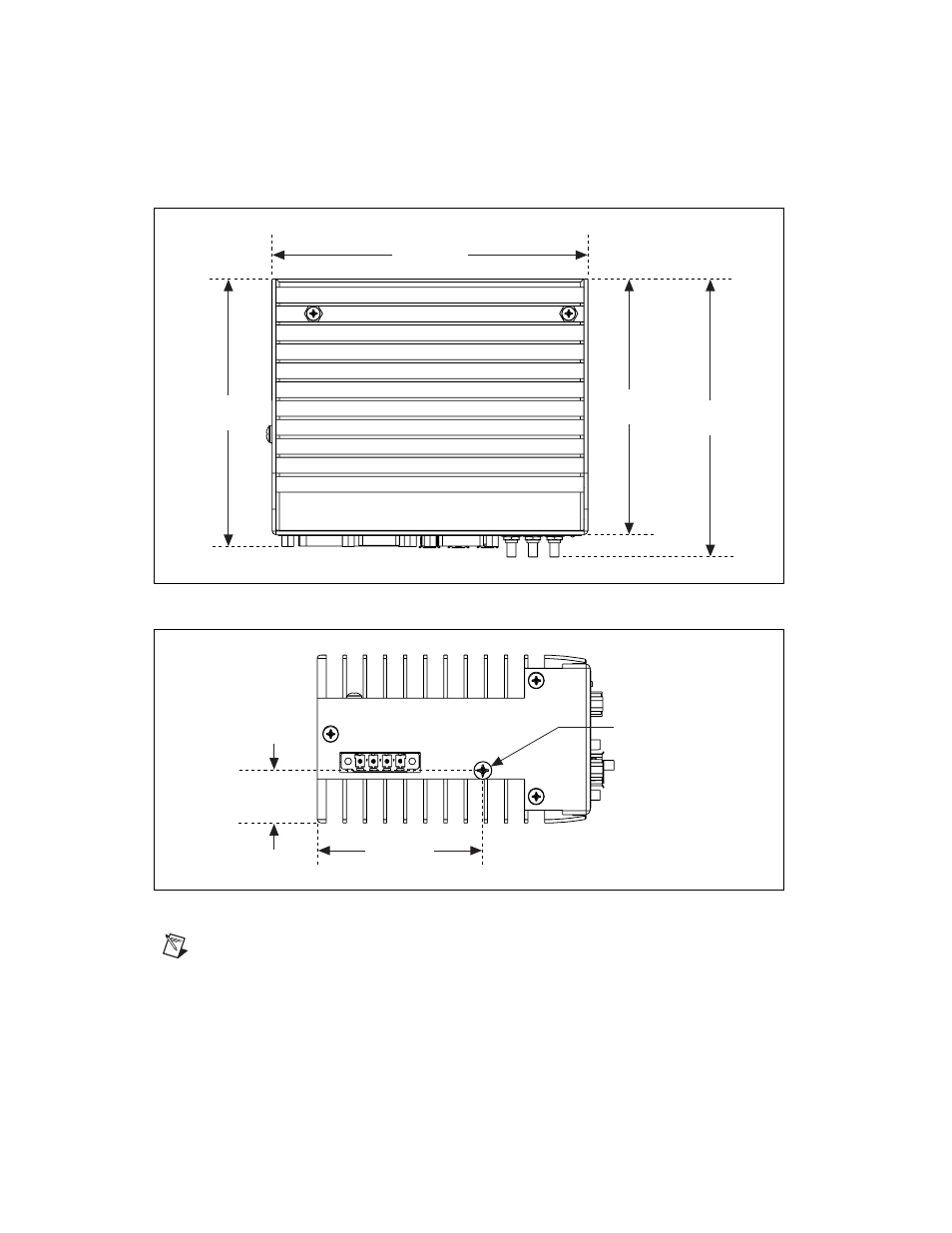

Figure C-2. Side View of the CVS-1450 Series with Dimensions
Figure C-3. Bottom View of the CVS-1450 Series with Dimensions
Note You can ground the CVS-1450 device to your mount by connecting a grounding wire
to the grounding lug on the CVS-1450 device. Refer to the Earth Ground Connection
section of Chapter 3, LEDs, DIP Switches, and Connectors , for more information about the
grounding lug.
127.25 mm
(5.010 in.)
103.12 mm
(4.060 in.)
112.09 mm
(4.413 in.)
107.89 mm
(4.248 in.)
62.56 mm
(2.463 in.)
19.79 mm
(0.779 in.)
6-32 UNC
Grounding Lug
