- 6 -

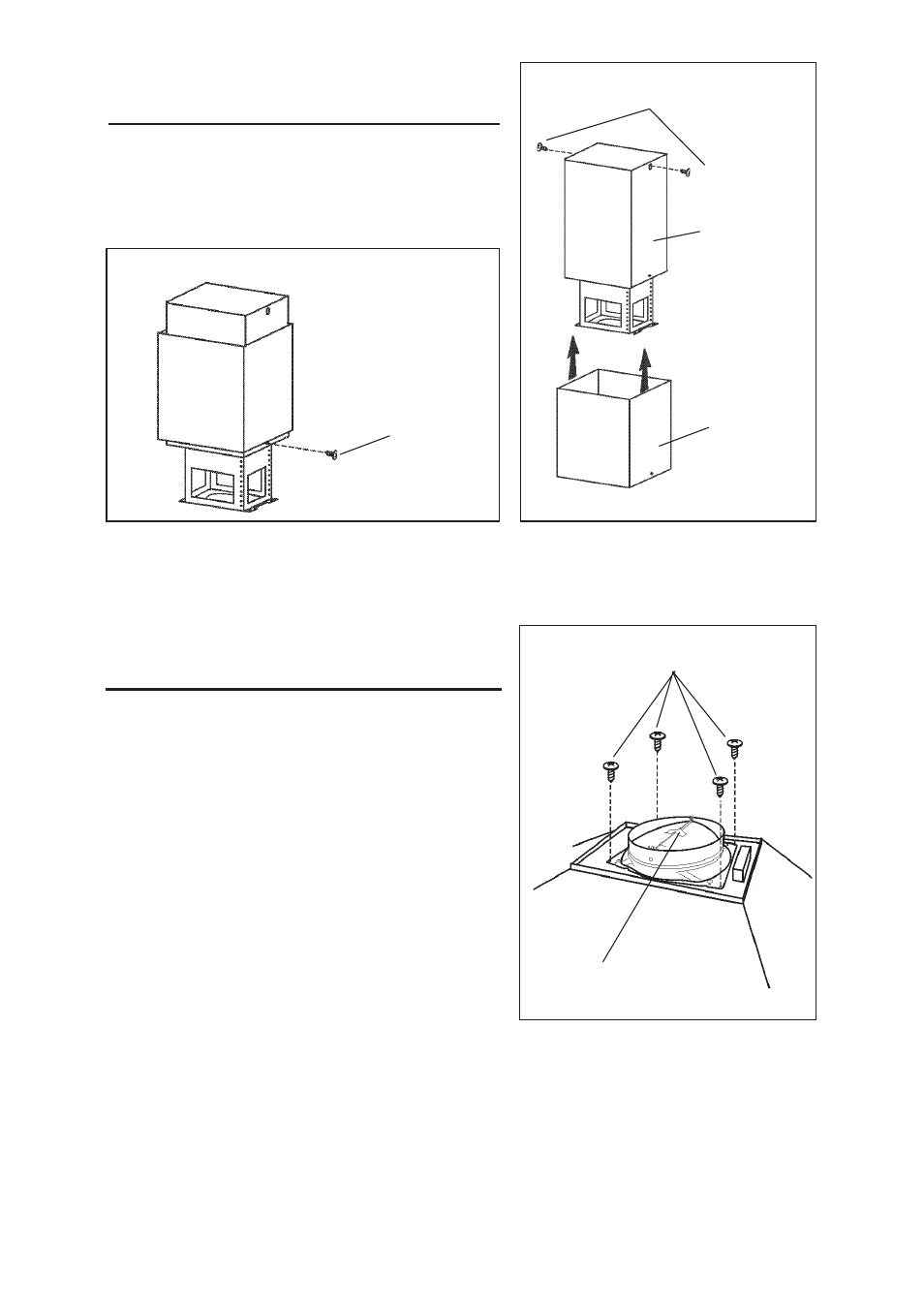

INSTALL DISCHARGE
COLLAR
Attach the discharge collar onto the hood; it
must be attached by means of 4 mounting
screws.
Remove the tape located on the damper.
MOUNTING SCREWS
(3.9x9.5mm)
CONNECT DECORATIVE
FLUE
1. Secure the upper flue to the upper support
frame with the mounting screws.
2. Insert the lower flue moving it completely
towards the top and fix it temporarily with
retaining screws.
LOWER
FLUE
UPPER FLUE
MOUNTING SCREWS
(3.9x9.5mm)
INSERT THE LOWER FLUE
1
2
RETAINING
SCREWS
(3.9x9.5mm)
REMOVE THE
TAPE
