Expanding the rf multiplexer, Figure 2-4. expanding the scxi-119x, Expanding the rf multiplexer -6 – National Instruments SCXI-1190/1191 User Manual
Page 28: Figure 2-4, Expanding the scxi-119 x -6

Chapter 2
Using the SCXI-119X
2-6
www.ni.com
Expanding the RF Multiplexer
Figure 2-4 shows how to expand the SCXI-119X by cascading stages
together. In the specific case of Figure 2-4, the module is used to create a
13 to 1 multiplexer with a two-stage architecture. You can cascade several
modules to provide even larger multiplexers. Cascading multiplexers
increases insertion loss, creates propagation delays, and may have other RF
effects.

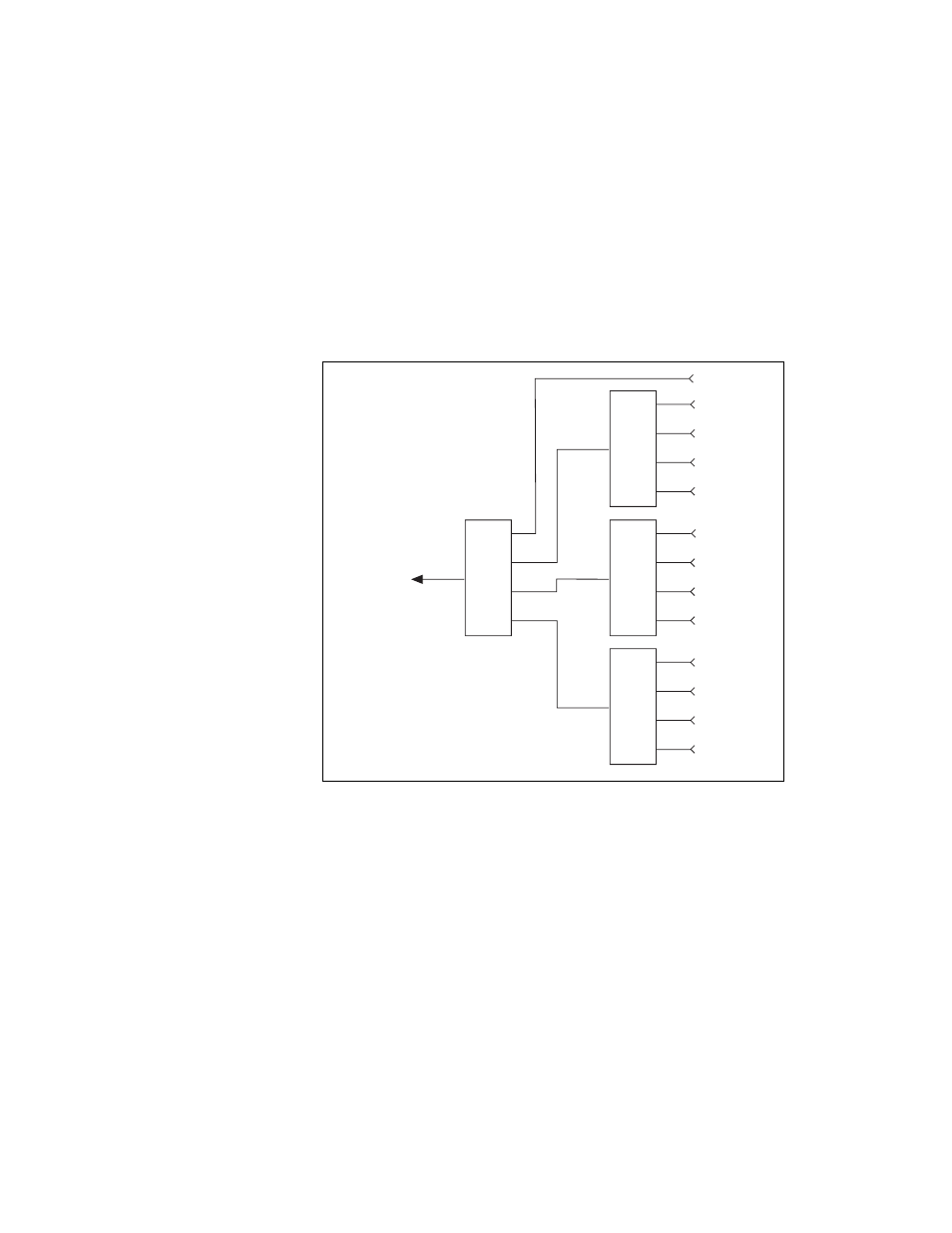

Figure 2-4. Expanding the SCXI-119X
comA
3A
2A
1A
0A
MUX
A
comC
3C
2C
1C
0C
MUX
C
comD
3D
2D
1D
0D
MUX
D
comB
3B
2B
1B
0B
MUX
B
