NI TB-2706 Installation Guide 4 ni.com

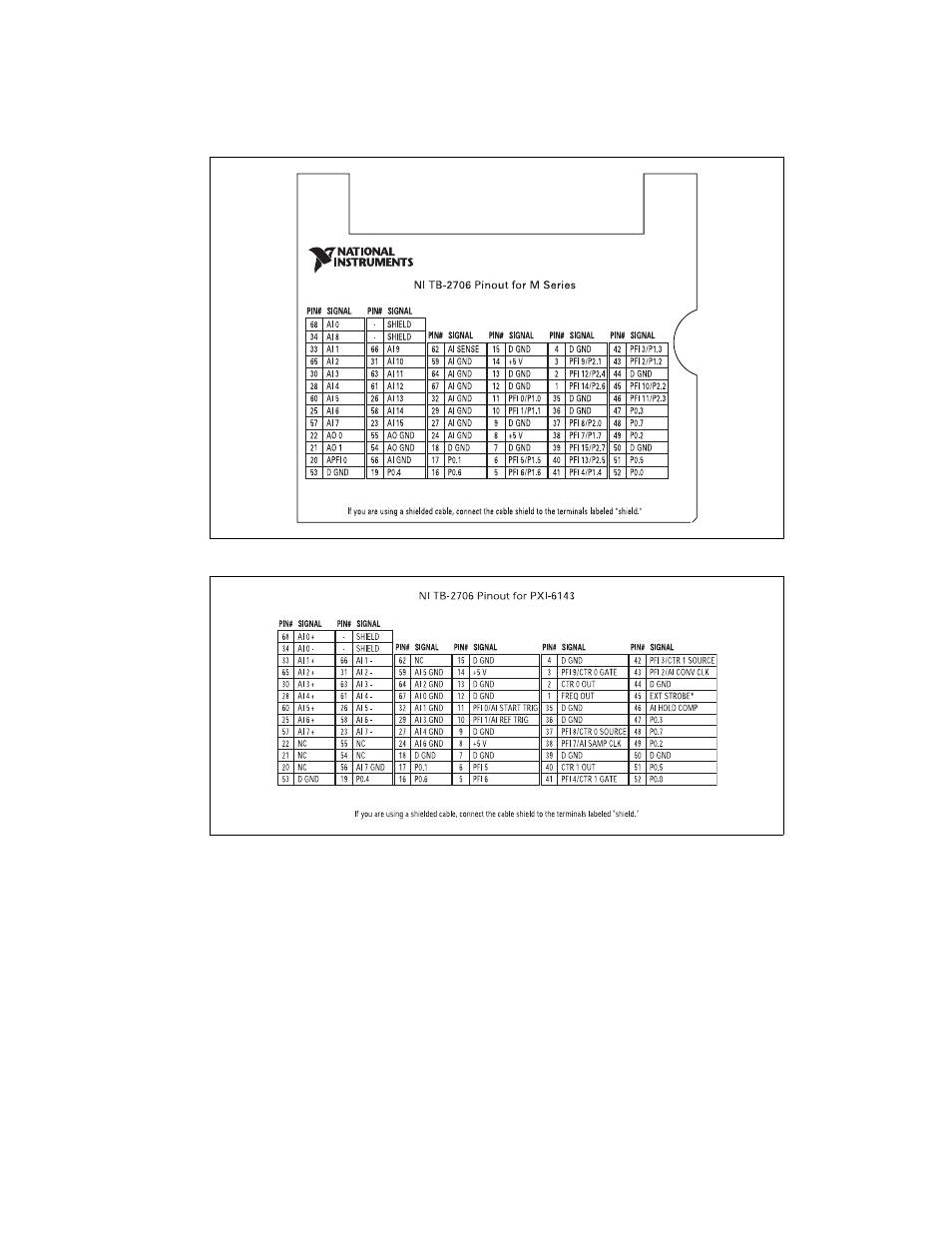

Figure 2. Pinout Label for M Series
Figure 3. Pinout for PXI-6143
2. Loosen or remove the strain-relief bar by loosening the two strain-relief screws with the
Phillips-head screwdriver.
3. Use wire cutters and wire insulation strippers to strip no more than 7 mm of insulation from the
wire ends.
4. Loosen the screws in the screw terminals with the 0.10 in. slotted screwdriver.
5. Insert the stripped wires into the screw terminals. Tighten the screws with the 0.10 in. slotted
screwdriver. No bare wire should extend past the screw terminal. Exposed wire increases the risk
of short circuits and failures.
