Chapter 3 Signal Connections
NI PCI-8254R User Manual 3-2 ni.com
Table 3-1 summarizes the functions of the connectors on the NI 8254R
device.
Connectors
This section describes the connectors on the NI 8254R device and includes
pinouts and signal descriptions for each connector.
2-Position Isolated Outputs Power Connector
The isolated outputs power connector on the NI 8254R device
accommodates one power supply. The V terminal provides the isolated
output circuitry (5 to 30 VDC) for the NI 8254R device. The C terminal
provides the common-mode signal for the NI 8254R device.
Figure 3-1 illustrates the isolated outputs power connector on the NI 8254R
device.

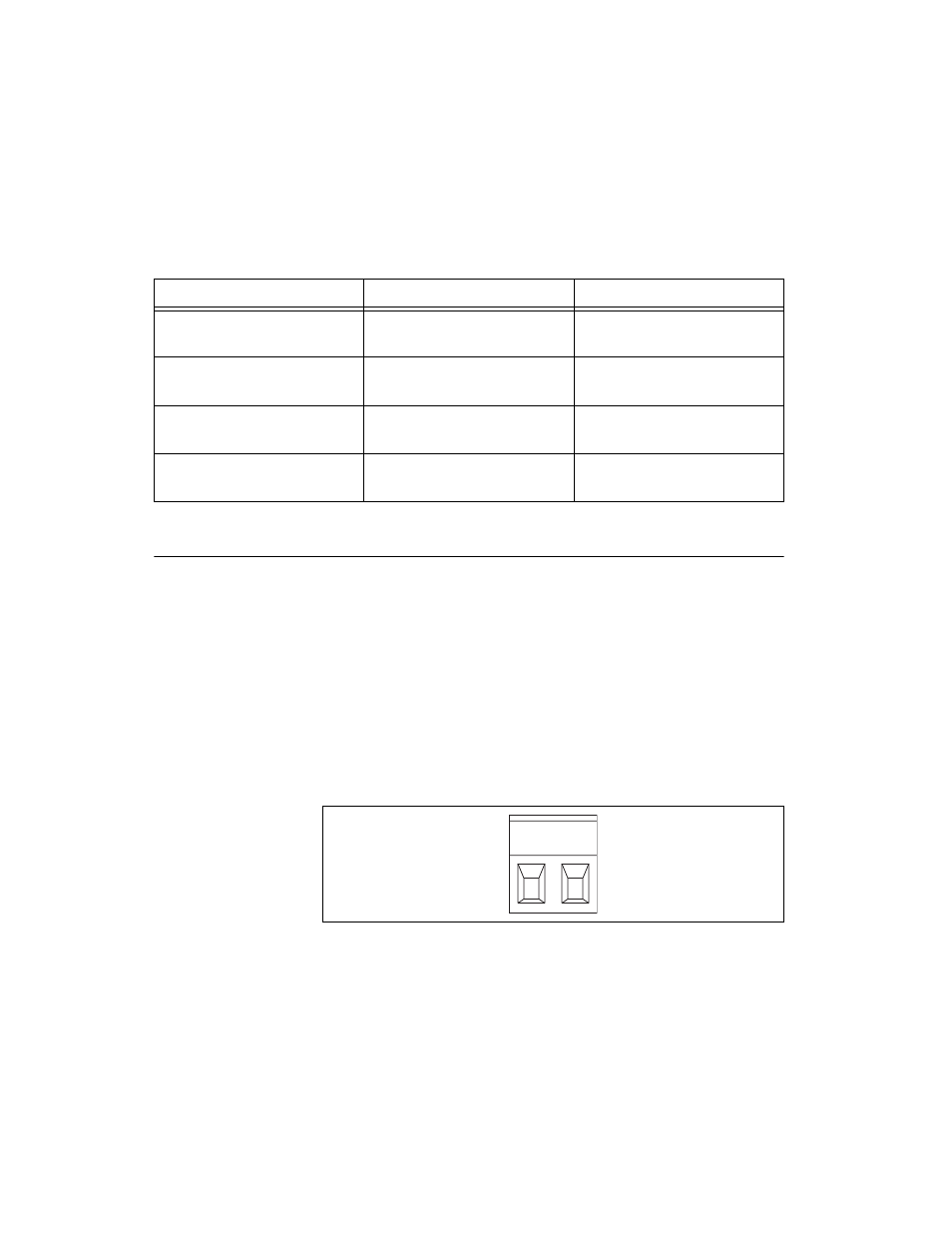

Figure 3-1. NI 8254R Isolated Power Connector
Table 3-1. NI 8254R Connector Functions
Peripheral Connector Function
Isolated Output Power 2-position isolated outputs
power connector Power for isolated outputs
IEEE 1394 6-pin IEEE 1394a connector Power and data connection to
IEEE 1394 cameras
Digital Input/Output 44-pin female high-density
D-SUB External TTL I/O; External
isolated I/O
Camera Power 4-pin computer power Power from PC power supply
to IEEE 1394a connector
V C
