3.3.1 remove cover plate
located beside the
power cord to reveal
the 7/8” wire hole.
discard cover plate,
screws and insert a
box connector into
the hole.
3.3.2 remove the lower
back panel from the
appliance to expose
wiring.
3.3.3 remove the power
cord strain-relief
from the side of the
appliance and cut
the cord where
shown below. this
will be the hardwire
connection point.
3.3.4 feed the supply
wires through the box connector and the grommet.
3.3.5 using wire connectors connect the common (white) wires together, then the hot (black) wires, and then
the ground (green) wires.
3.3.6 ensure the newly connected wires are kept away from the rotating parts and the circuit board, and
re-install the back panel.
NOTE: This appliance must be serviced from the back, leave enough wire so that the appliance can be
removed from the enclosure without disconnecting the power supply wires.
remove 2 screws on cover plate.

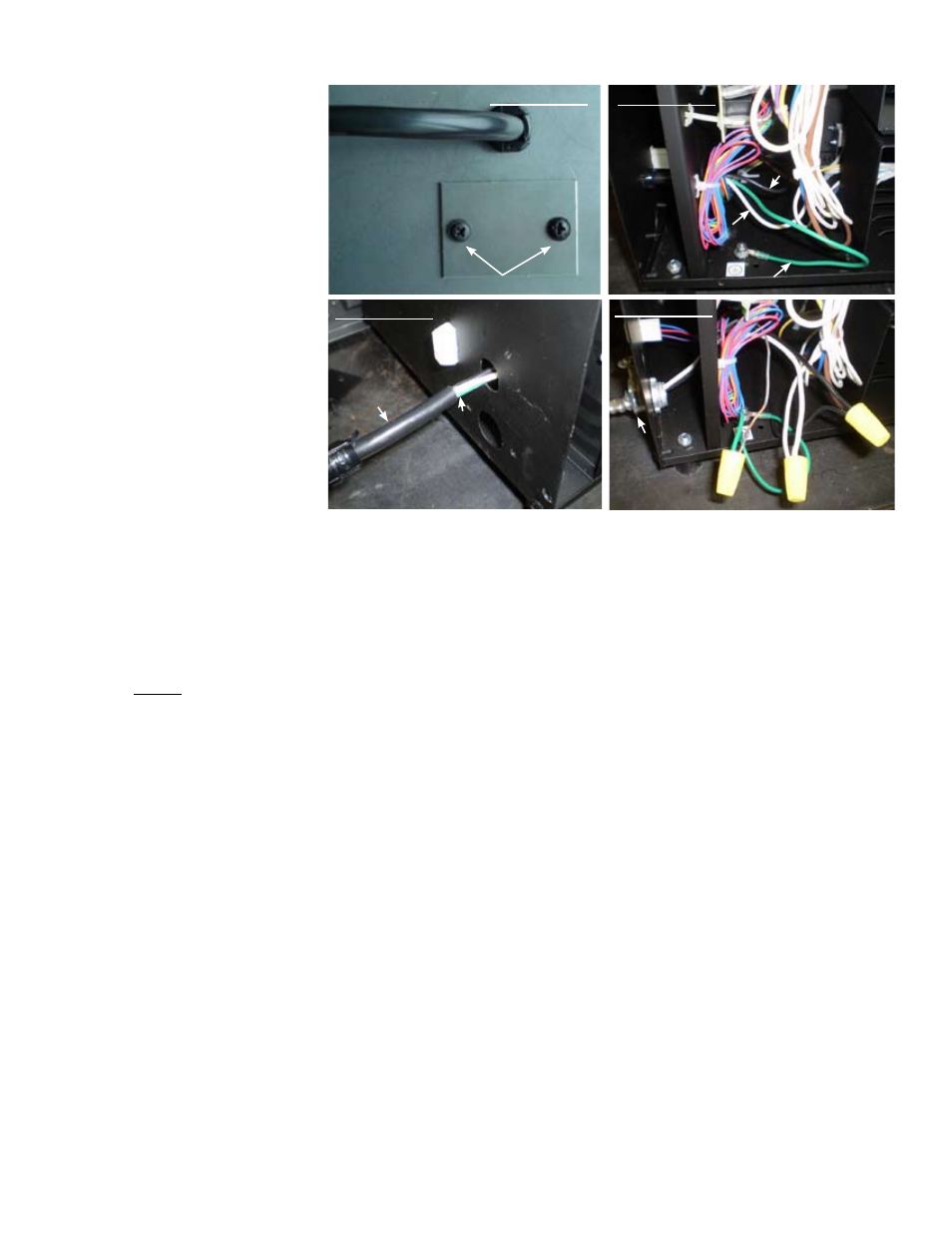

figurE 3.3.1
cut
power cord
figurE 3.3.3
hot Wire
figurE 3.3.2
common Wire
ground Wire
figurE 3.3.4
final connection
box
connector
