17
W415-0760 / 12.19.08
most halogen light bulbs are rated to last approximately 1800 hours. like all light bulbs, halogen bulbs require
periodic replacement. When the bulbs in your appliance have burned out you will notice one or more of following:
COmmON OBsErVEd prOBlEms:
- There is no flame
- flame or ember bed is dim or dark in certain areas
- flame is not moving or glowing
your appliance appliance must be opened in order to replace the light bulbs. to
reduce the number of times you need to open the appliance, replace all bulbs at the
same time if they are close to the end of their rated life.

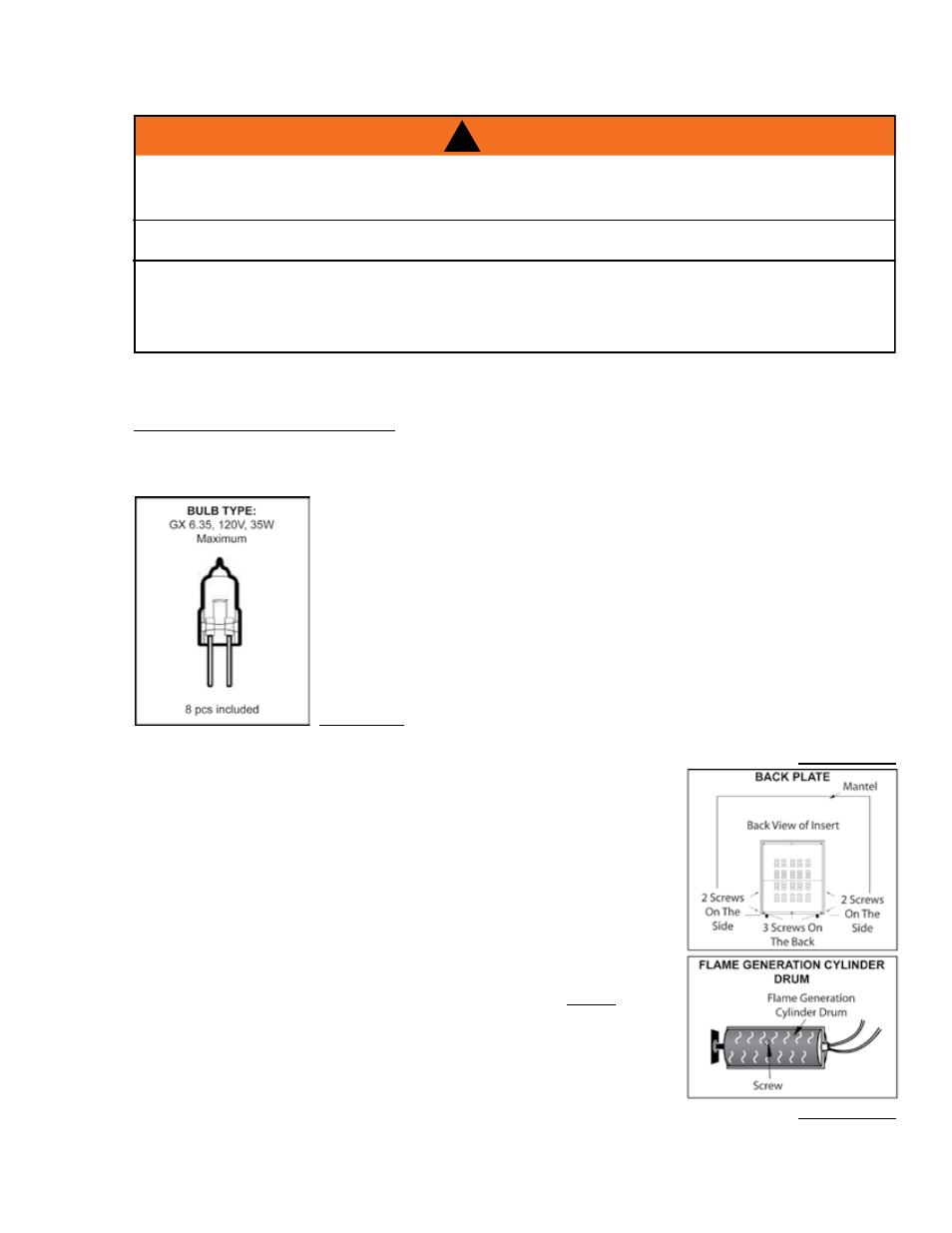

there are a total of 8 halogen light bulbs (type gX6.35, rated 120volts, 35Watts) in
your appliance:
- 2 bulbs provide illumination for the ember bed
- 2 bulbs provide illumination for flame generation
- 4 extra bulbs for replacement
6.1.1 remove the 7 screws from the bottom half of the back of appliance as
illustrated. remove back plate.
6.1.2a Locate the flame generation cylinder drum. It is constructed of two
removable halves. they are two (2) matte black sheet metal pieces
with holes in them, either of which can be removed from the appliance.
6.1.2b Remove the screw as illustrated that are used to secure the flame
generation cylinder drum.
6.1.2c squeeze half of drum cylinder until its top edge clears the top drum
track. remove the bottom edge of the cylinder drum from the bottom
drum track. this will give you access to the light bulbs. NOTE: do not
exert excessive pressures on the drum cylinder as this may
cause damage.
figurE 6.0
figurE 6.1.1
6.0 maintenance
!
WARNING
Always disconnect the power and allow the electric fireplace to cool before performing any cleaning,
maintenance or relocation of this electric fireplace. Turn controls to OFF and remove plug from outlet
or turn off the house circuit breaker to electric fireplace receptacle.
Do not install replacement bulbs that exceed specified maximum watts.
The halogen light bulbs in your unit can become extremely hot. Allow at least 10 minutes between
turning off the fireplace and removing the light bulbs to avoid accidental burns. Do not handle the
lamp (bulbs) with bare fingers, oils from your skin will damage the bulbs whey they heat up. Use
gloves or a clean dry cloth when handling bulbs.
6.1 flame generation bulb replacement
figurE 6.1.2
tp - maintenance Warning
