Napoleon Fireplaces EF30G - Manual (Page 18)

W415-0760 / 12.19.08
18
BACK PLATE
Bulbs with Spring Clips
Flame Generation
Cylinder Drum
LOCATE THE EMBER BED BULBS
Back View of Insert
Mantel
EMBER BED BULB
REPLACEMENT
3 Screws On The Back
2 Screws
On The
Side
2 Screws
On The
Side
6.1.3 remove spring clip. hold socket and pull out old bulb.
6.1.4 hold socket and push in new bulb (do not exceed wattage). replace
spring clip.
6.1.5 repeat steps 3 and 4 for the second bulb.
6.1.6 insert bottom edge of removed cylinder half into bottom drum track.
Gently squeeze drum cylinder until its top edge fit into top drum rack.
reattach the screw that was previously removed.
6.1.7 secure the backplate to the main appliance by reattaching the 7
screws removed.

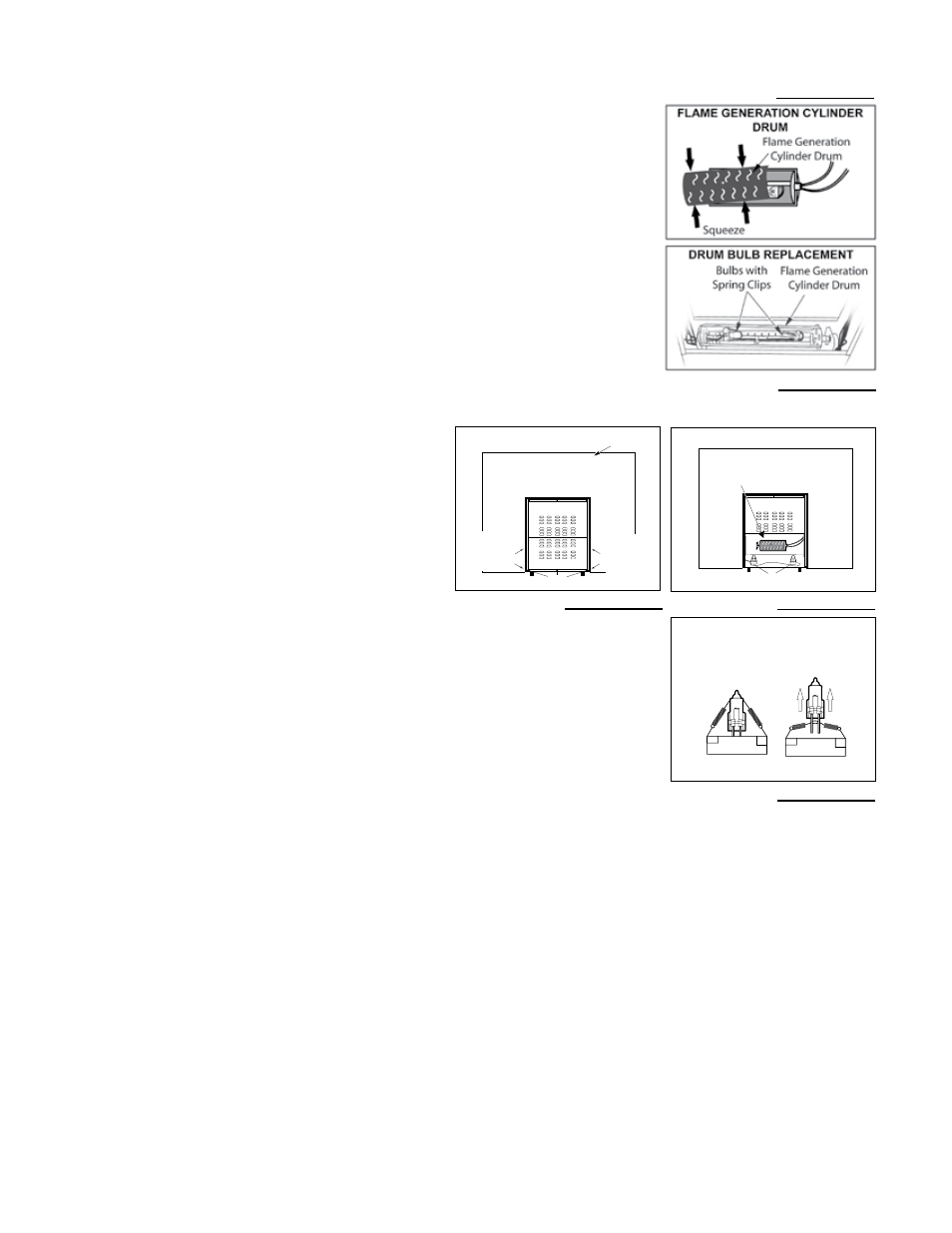

figurE 6.1.2
figurE 6.1.6
6.2 ember bed bulb replacement
6.2.1 remove the 7 screws from the bottom
half of the back of appliance as illustrated.
remove back plate.
6.2.2 locate the ember bed bulbs which are
underneath the flame generation cylinder
drum.
6.2.3 remove spring clip. hold socket and pull
out old bulb.
6.2.4 hold socket and push in new bulb (do not exceed wattage or handle
with bare hands).
6.2.5 repeat steps 3 and 4 for the second bulb.
6.2.6 secure the back plate to the main appliance by reattaching the 7
screws that were previously removed.
figurE 6.2.1 figurE 6.2.2
figurE 6.2.4
6.3.1 the glass is cleaned in the factory during assembly. during shipment, installation, handling, etc. the
glass surface may collect dust particles. These can be removed by buffing lightly with a clean dry cloth.
6.3.2 To remove fingerprints or other marks, the glass can be cleaned with a damp cloth using a good quality
household glass cleaner. the glass should be completely dried with a lint free cloth or paper towel.
6.3.3 in the event of glass breakage, vacuum all remaining glass pieces with a shop vac. do not vacuum
WHILE PIECES ARE HOT. Replace glass only with replacement part specifically for this appliance.
never substitute material. only fully tempered safety glass may be used on this appliance.
6.3 cleaning
