Connection to External equipment
- You can connect additional equipment, such as VCRs, camcorders etc. to your set. However please check with your
manufacturers instruction books for specific information. Make sure all connections are made with both your set and
additional appliance unplugged from the mains to avoid damaging your equipment.
Here shown may be somewhat different from your set.

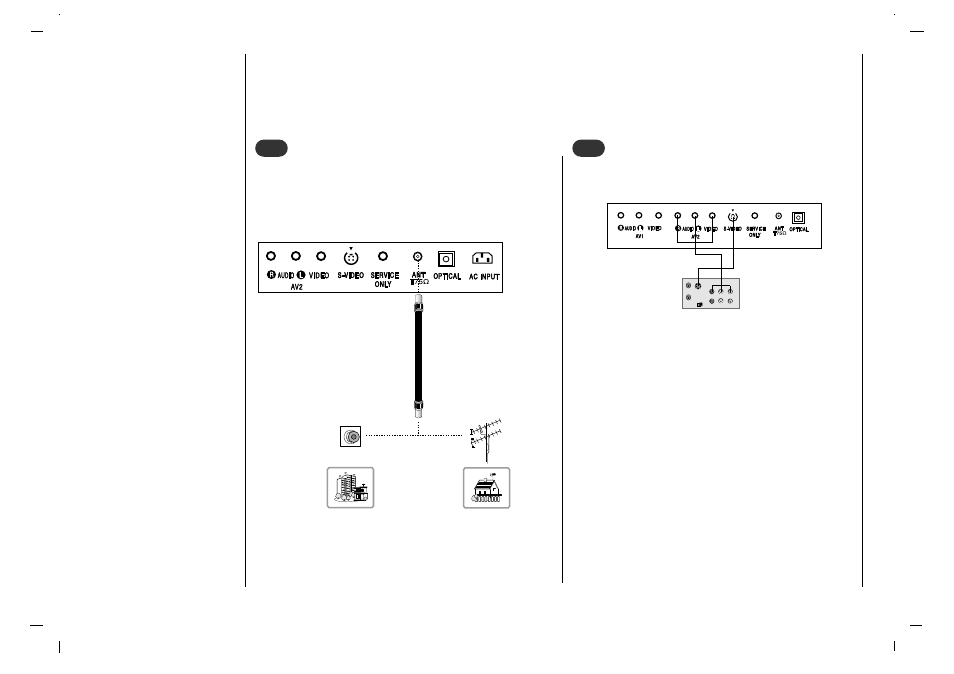

Antenna Connection
- If you connect an S-VIDEO VCR to the S-VIDEO input,
the picture quality is improved; compared to connecting
a regular VCR to the Video input.
- To avoid picture noise (interference), leave an adequate
distance between the VCR and set.
Use the INPUT SELECT button on the remote control to
select
AV1 or AV2 .
(If connected to S-VIDEO, select the S-Video external
input source.)
Insert a video tape into the VCR and press the PLAY
button on the VCR. (See VCR owner’s manual)
Watching VCR
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
1 1 2 2
< Back panel of the set >
< Back panel of the set >
< Back panel of VCR >
Apartments
(connecting to wall antenna
socket)
Private house
(connecting to wall outdoor
antenna)
wall antenna socket
outdoor antenna
VHF antenna
UHF antenna
RF coaxial wire (75 ohms)
- Be careful for the bronze wire not to be bender in
connecting to antenna input port.
