Location and function of controls

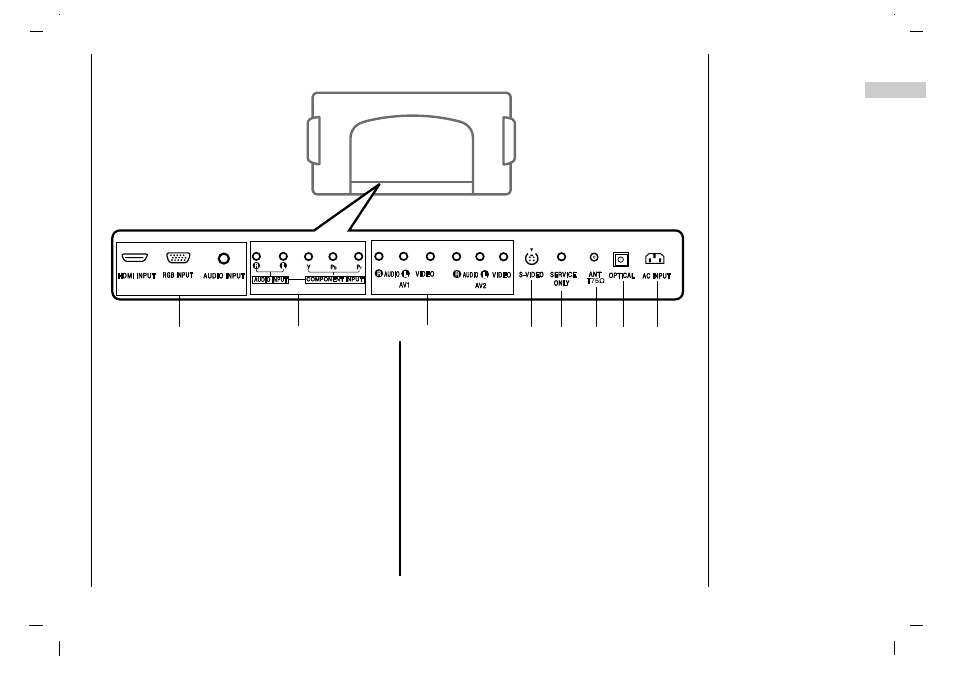

Back panel
1 2 3 5 6 4 7 8
1. HDMI INPUT / RGB INPUT / AUDIO INPUT SOCKETS
Connect the set output socket of the PERSONAL
COMPUTER to this socket.
2. AUDIO INPUT / COMPONENT INPUT (480i / 576i /
480p / 576p / 720p / 1080i) SOCKETS
3. AUDIO/VIDEO SOCKET
Connect the audio/video out sockets of the VCR to AV
sockets of the set
4. S-VIDEO INPUT
Connect video out from an S-VIDEO VCR to the S-
VIDEO input.
5. SERVICE ONLY SOCKET
6. Antenna INPUT
7. Digital Audio (OPTICAL)
Connect digital audio from various types of equipment.
Note : In standby mode, these ports will not work.
(HDMI & DTV input)
8. POWER CORD SOCKET
This set operates on an AC power.
The voltage is indicated on the Specifications page.
Never attempt to operate the set on DC power.
